Wiring Installation Training for Industrial Switching Elements

The Wiring Installation Training for Industrial Switching Elements unit, for the students formation at a proffessional-practical level in the field of the installation, wiring and testing of industrial installations based on switching units.

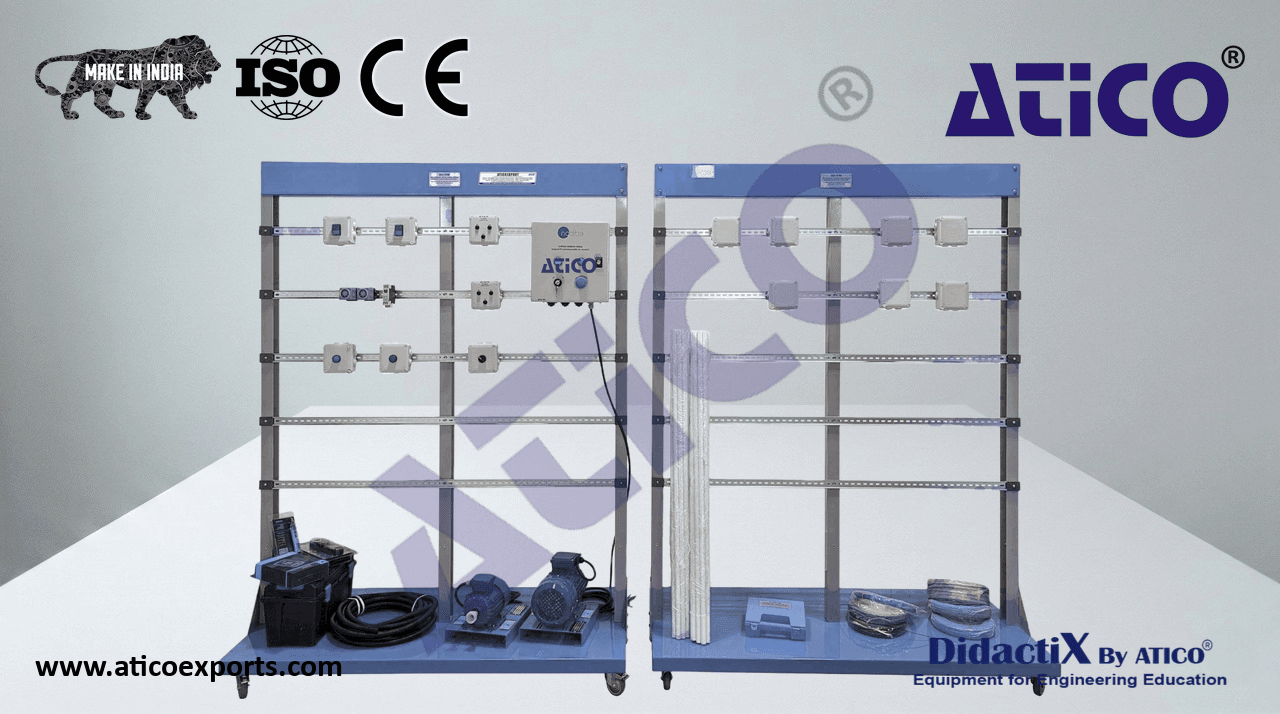

ATENG 11222 — Wiring Installation Training for Industrial Switching Elements

• The “ATENG 11222” unit includes the following elements:
• FP-STR. Assembly Frame with Safe Electrical Power Supply.
• Aluminium structure:
  Two aluminium struts.
  Easy assembly of components via hammer head screws.
  Possibility of simultaneous work of several students.
  Four swivelling casters to facilitate the movement.
• Dimensions:
• Structure heigh: 1800 mm. FP-STR
• Useful working height: 1000 mm.
• Width: 1500 mm.
  Three-phase connection plug.
• Safe electric box:
• Differential magnetothermal, 4 poles, 25 A, 300 mA AC 6 KA.
• Emergency stop mushroom (230/400 VAC).
  5-wire hose for connection to frame.
  Signal lamp of voltage presence.
• FP-KIT-4. Wiring Installation Kit.
• 100 meters of grey wire of 1.5 mm².
• 100 meters of brown wire of 1.5 mm².
• 100 meters of black wire of 1.5 mm².
• 100 meters of green/yellow wire of de 1.5 mm².
  FP-KIT-4
  25 meters of screened wire.
• FP-KIT-9. 400 VAC Contactors Kit.
• Five three-pole contactors:
• Nominal voltaje of power terminals: 400 VAC.
• Nominal voltaje of control terminals: 230 VAC.
• Nominal voltaje coil: 230 VAC.
  FP-KIT-9
• Auxiliary contacts: 3 NO / 2 NC.
• FP-KIT-10. Tubes and Fittings for Channelling Wiring Kit.
  20 m of PVC pipe for wiring installation.
  7 x Electrical box.
  Cable guide.
• 20 x Cable clamp, 20 mm. FP-KIT-10
• FP-KIT-56. Network Wiring Kit.
  2 x Synchronism relay.
• Current monitoring relay, 24 V.
• Red lighting indicator, 22 mm.
• Green lighting indicator, 22 mm.
  FP-KIT-56
  Commutator.
  2 x Push button.
• FP-KIT-58. Fuses Kit.
• 10 x 2 A fuse.
• 10 x 10 A fuse. FP-KIT-58
  3

Specifications

• Required elements (Not included):
• CHER. Tool Box.
  Crimper.
  Tin.
  Meter.
  Insulating tape.
  Heat shrink.
  Pin punch.

CHER

Star and flat screwdrivers.

Allen keys.

Soldering iron and soldering iron support.

Rubber hammer.

Connection terminals.

Cable ties.

Cable cutters.

Clamps.
