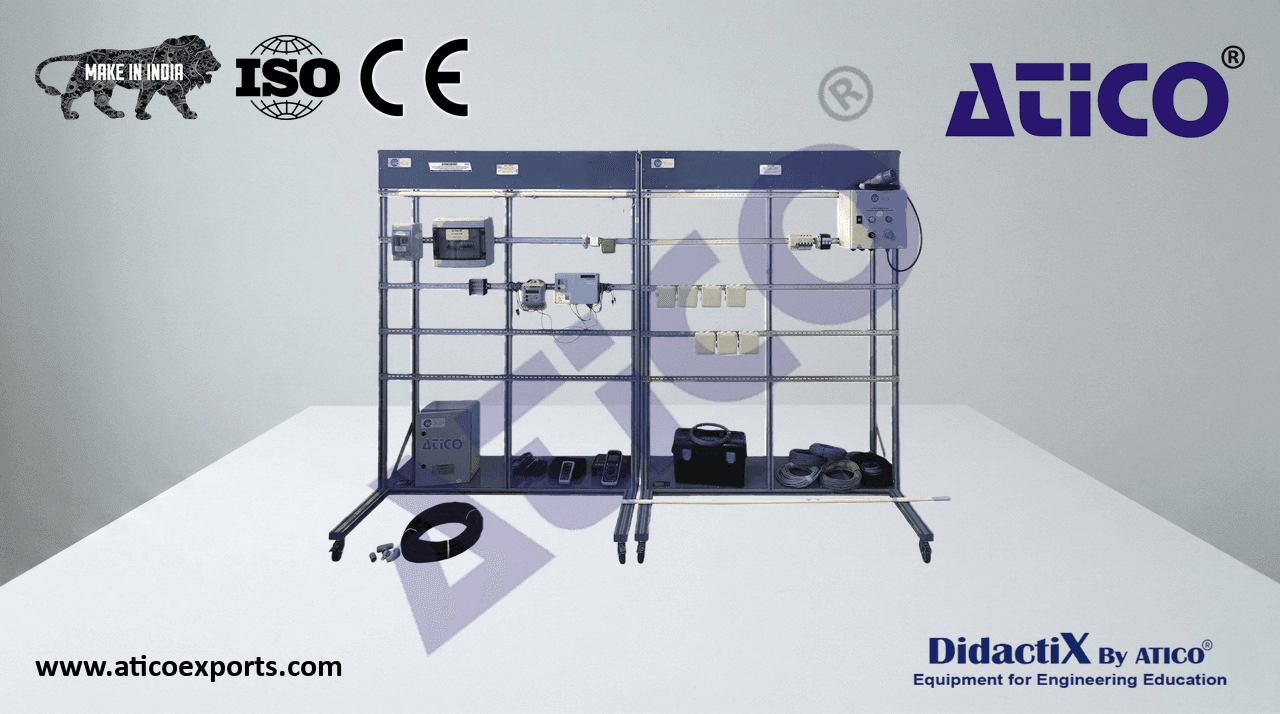

Wiring Installation Training for Mains Connection and Meters in Buildings

The Wiring Installation Training, Mains Connection and Meters in Buildings application, for the students formation at a proffessional-practical level in the field of the installation, wiring and testing of mains connection and meters in buildings.

ATENG 11227 — Wiring Installation Training for Mains Connection and Meters in Buildings

• The “ATENG 11227” application includes the following elements:
• FP-STR. Assembly Frame with Safe Electrical Power Supply.
• Aluminum frame:
  Three aluminum struts.
  Easy assembly of components via hammer head screws.
  Possibility of simultaneous work of several students.
  Four swiveling casters to facilitate the movement.
• Dimensions:
  FP-STR
• Frame height: 1800 mm.
• Useful working height: 1000 mm.
• Width: 1500 mm.
  Three-phase connection plug.
• Safe electric box:
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 kA.
• Emergency stop push-button (230/400 VAC).
  5-wire hose for connection to frame.
  Signal lamp of voltage presence.
• FP-KIT-1. Feeders Installation Kit.
  Magnetothermal differential circuit breaker.
  Encapsulated three-phase fuse holder.
  Cartridge fuses.
  FP-KIT-1
  Electrical panel.
• FP-KIT-4. Wiring Installation Kit.
• 100 m of grey wire of 1.5 mm².
• 100 m of brown wire of 1.5 mm².
• 100 m of black wire of 1.5 mm².
• 100 m of green/yellow wire of de 1.5 mm².
  25 m of screened wire. FP-KIT-4
• FP-KIT-10. Tubes and Fittings for Channeling Wiring Kit.
  PVC electrical conduit for wiring installation, 20 m.
  7 x Electrical box.
  Cable guide.
  FP-KIT-10
• 20 x Cable clamp, 20 mm.
• FP-KIT-32/B. Switch Kit 2.
  Crossover switch.
  Teleswitch.
  Remote control switch. FP-KIT-32/B
  Case for storing switches.
• FP-KIT-37. Fluorescent Ceiling Fixture Kit.
  2 x Fluorescent tube line, 8 W (with tube holder).
  FP-KIT-37
  3

Specificacions

• FP-KIT-59. Meter Cabinet Kit.
  Three-phase digital meter.
  Distribution panel.
  Two-pole circuit breaker.
• Differential switch 4P, 25 A, 30 mA.
  FP-KIT-59
• Circuit breaker 3P, 16 A, 6 kA.
• Circuit breaker 1P, 16 A, 6 kA.
• 4-phase distribution comb, 400 VAC.
  Copper busbar 3P + N.
  2 x Busbar support and insulator.
  Busbar box.
• Contactor 3P, 9 A, 230 VAC.
• 16 A limit switch.
• Secondary busbar block 8 ways, 80 A, 60 VAC.
  12 x DIN rail adapter.
  Assortment of 200 labels.
  2 x Storage case.
• Required elements (Not included):
• CHER. Tool Box.
  Crimper.
  Tin.
  Meter.
  Insulating tape.
  Heat shrink.
  Pin punch.

CHER

Star and flat screwdrivers.

Allen keys.

Soldering iron and soldering iron support.

Rubber hammer.

Connection terminals.

Cable ties.

Cable cutters.

Clamps.
