Wiring Installation Training for Power Generation Hybrid Systems

The Wiring Installation Training for Power Generation Hybrid Systems unit, for the students formation at a practical and professional level in the field of installation, wiring and commissioning of hybrid renewable energies systems.

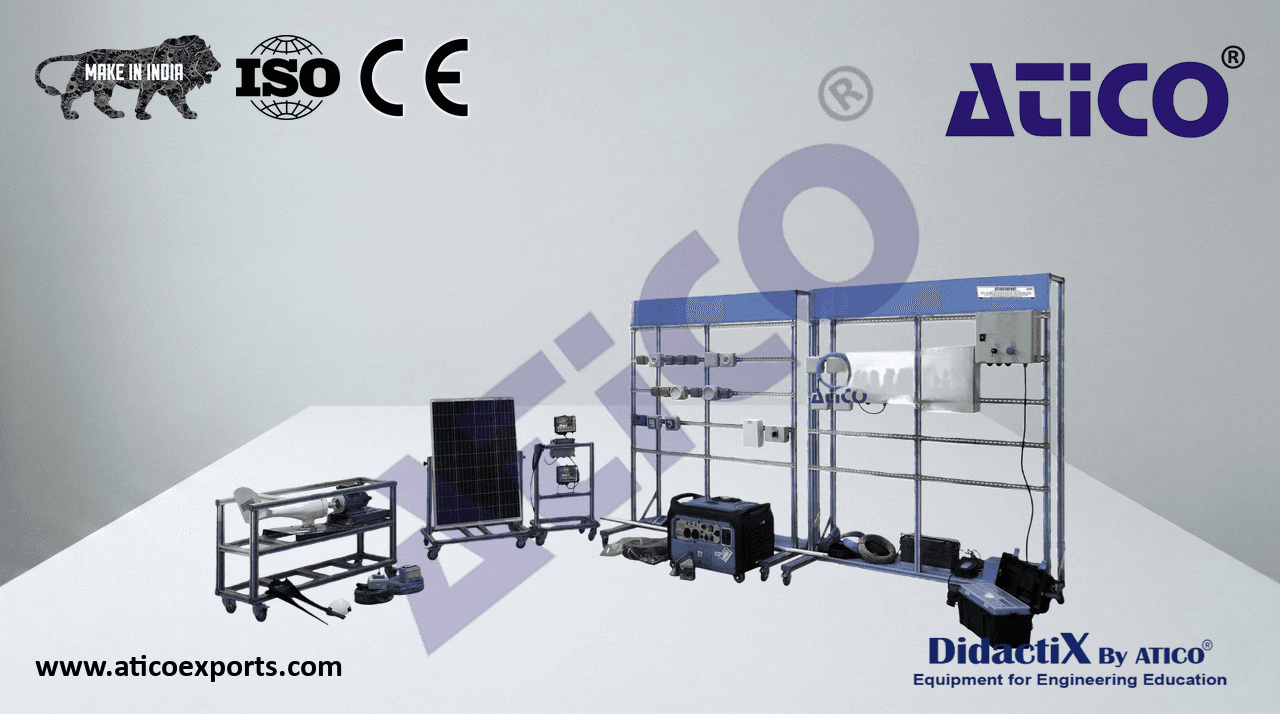

ATENG 11240 — Wiring Installation Training for Power Generation Hybrid Systems

• The “ATENG 11240” unit includes the following elements:
• FP-STR. Assembly Frame with Safe Electrical Power Supply.
• Aluminum frame:
  Two aluminum struts.
  Easy assembly of components via hammer head screws.
  Possibility of simultaneous work of several students.
  Four swiveling casters to facilitate the movement.
• Dimensions:
  FP-STR
• Frame height: 1800 mm.
• Useful working height: 1000 mm.
• Width: 1500 mm.
  Three-phase connection plug.
• Safe electric box:
• Differential magnetothermal, 4 poles, 25 A, 30 mA AC 6 KA.
• Emergency stop mushroom (230/400 VAC).
  5-wire hose for connection to frame.
  Signal lamp of voltage presence.
• FP-KIT-4. Wiring Installation Kit.
• 100 m of grey wire of 1.5 mm².
• 100 m of brown wire of 1.5 mm².
• 100 m of black wire of 1.5 mm².
• 100 m of green/yellow wire of de 1.5 mm².
  25 m of screened wire.
  FP-KIT-4
• FP-KIT-10. Tubes and Fittings for Channeling Wiring Kit.
  PVC electrical conduit for wiring installation, 20 m.
  7 x Electrical box.
  Cable guide.
• 20 x Cable clamp, 20 mm.
  FP-KIT-10
• FP-KIT-10/B. Rigid Tube Kit.
  20 m PVC rigid tube.
  10 x Threaded connector.
  5 x Elbow for conducts clamping.
  FP-KIT-10/B
• FP-KIT-16. Photovoltaic Generation Kit.
• Ammeter analog DC 0 - 10 A.
  Current cut-off switch.
  Photovoltaic charge regulator.
• Two lamps panel to simulate solar radiation:
• Power: 2 x 250 W.
  Switch ON/OFF.
  Current regulator.
  Aluminum frame.
  FP-KIT-16
• 96 W photovoltaic panel:
• Maximum power: 96 W.
• Voltage at maximum power: 17.8 V.
  Solar charge controller.
• 10 A DC ammeter.
  3

Specifications

• FP-KIT-19. Lighting Consumption Kit.
  Four sockets.
• Two 12 VDC lamps.
• Two halogen lamps 230 VAC (PH + N).
  Four switches.
• FP-KIT-22. Hybrid Installation Kit.
• DC analog ammmeter from 0 - 30 A. FP-KIT-19
  Current cutoff switch.
• Sine-wave inverter:
• Nominal power: 1000 VA.
• Input voltage: 12 VDC.
• Output voltage: 230 VAC.
  Battery charger.
• Battery:
• Battery voltage: 12 VDC. FP-KIT-22
• Battery capacity: 90 Ah.
• FP-KIT-23. Wind Turbine Installation for Hybrid Systems Kit.
• DC analog ammeter from 0 – 10 A.
  Dump load implemented in the controller.
  Switch to stop generator spinning.
• Permanent magnet wind turbine:
• Power output: 200 W.
• Nominal wind speed: 11.5 m/s.
• Charge regulator:
• Output voltage: 12 VDC. FP-KIT-23
• AC motor controller:
• Supply voltage: 230 VAC (PH + N).
  ON/OFF power switch.
  Star-Stop control activation switch.
  Speed meter LCD.
  Speed control potentiometer.
  Variable frequency drive (VFD).
  370 W three-phase induction motor.
• FP-KIT-52. Meters, Switches and Distribution Busbar Installation Kit.
  Distribution electric box.
• Differential thermal switch, two poles, 16 A.
  2 x Energy power meters.
• Distribution busbar:
• It consists of two rails:
  One for the connection of positive poles.
  One for the connection of negative poles.
• Required elements (Not included):
• CHER. Tool Box.
  Crimper.
  Tin. FP-KIT-52
  Meter.
  Insulating tape.
  Heat shrink.
  Pin punch.
  Star and flat screwdrivers.
  Allen keys.
  Soldering iron and soldering iron support.
  Rubber hammer.
  Connection terminals.
  Cable ties.

CHER

Cable cutters.

Clamps.
