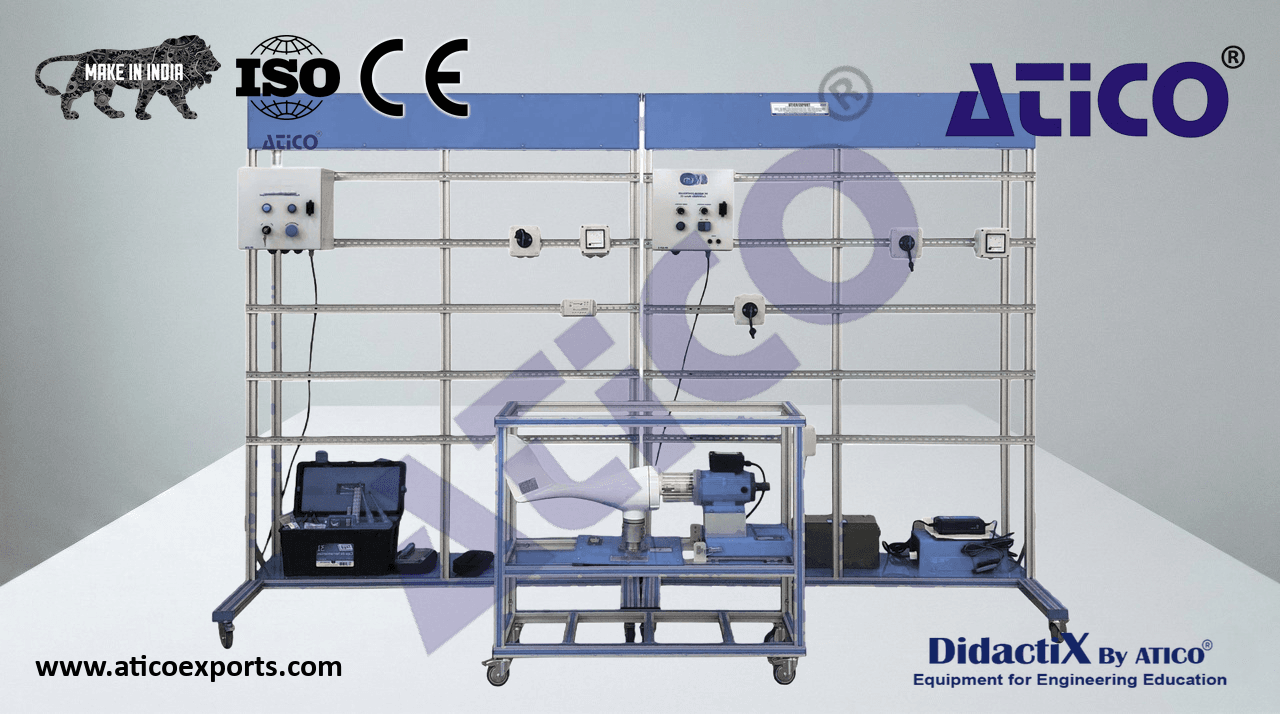

Wiring Installation Training for Wind Power Systems

The Wiring Installation Training for Wind Power Systems unit, for the formation at professional-practical level in the field of the installations, wiring and commissioning of wind power energy systems.

ATENG 11215 — Wiring Installation Training for Wind Power Systems

• The “ATENG 11215” unit includes the following elements:
• FP-STR. Assembly Frame with Safe Electrical Power Supply.
• Aluminium structure:
  Three aluminium struts.
  Easy assembly of components via hammer head screws.
  Possibility of simultaneous work of several students.
  Four swivelling casters to facilitate the movement.
• Dimensions:
• Structure heigh: 1800 mm.
  FP-STR
• Working tool height: 1000 mm.
• Width: 1500 mm.
  Three-Phase connection plug.
• Safe electric box:
• Differential magnetothermal, 4 poles, 25 A, 300 mA AC 6KA.
• Emergency stop push-button (230/400 VAC).
  5-wire hose for connection to frame.
  Signal lamp of voltage presence.
• FP-KIT-4. Wiring Installation Kit.
• 100 meters of grey wire of 1.5 mm².
• 100 meters of brown wire of 1.5 mm².
• 100 meters of black wire of 1.5 mm².
• 100 meters of green/yellow wire of de 1.5 mm².
  FP-KIT-4
  25 meters of screened wire.
• FP-KIT-10. Tubes and Fittings for Channeling Wiring Kit.
  20 m of PVC pipe for wiring installation.
  7 x Electrical box.
  Cable guide.
• 20 x Cable clamp, 20 mm.
  FP-KIT-10
• FP-KIT-19. Lighting Consumption Kit.
  Four sockets.
• Two 12 VDC lamps.
• Two 230 VAC halogen lamps (PH + N).
  Four switches.
• FP-KIT-23. Wind Turbine Installation for Hybrid Systems Kit.
  FP-KIT-19
• DC analog ammeter from 0 – 10 A.
  Dump load implemented in the controller.
  Switch to stop generator spinning.
• Permanent magnet wind turbine:
• Power output: 200 W.
• Nominal wind speed: 11.5 m/s.
• Charge regulator:
• Output voltage: 12 VDC.
• AC motor controller: FP-KIT-23
• Supply voltage: 230 VAC (PH + N).
  ON/OFF power switch.
  Star-Stop control activation switch.
  Speed meter LCD.
  Speed control potentiometer.
  Variable frequency drive (VFD).
  370 W three-phase induction motor.
  3

Specifications

• FP-KIT-52. Meters, Switches and Distribution Bus Bar Installation Kit.
  Distribution electric box.
• Differential thermal switch, two poles, 16 A.
  2 x Energy power meters.
• Distribution busbar:
• It consists of two rails:
  One for the connection of positive poles.
  One for the connection of negative poles.
