Worm Gear Reducer Deluxe

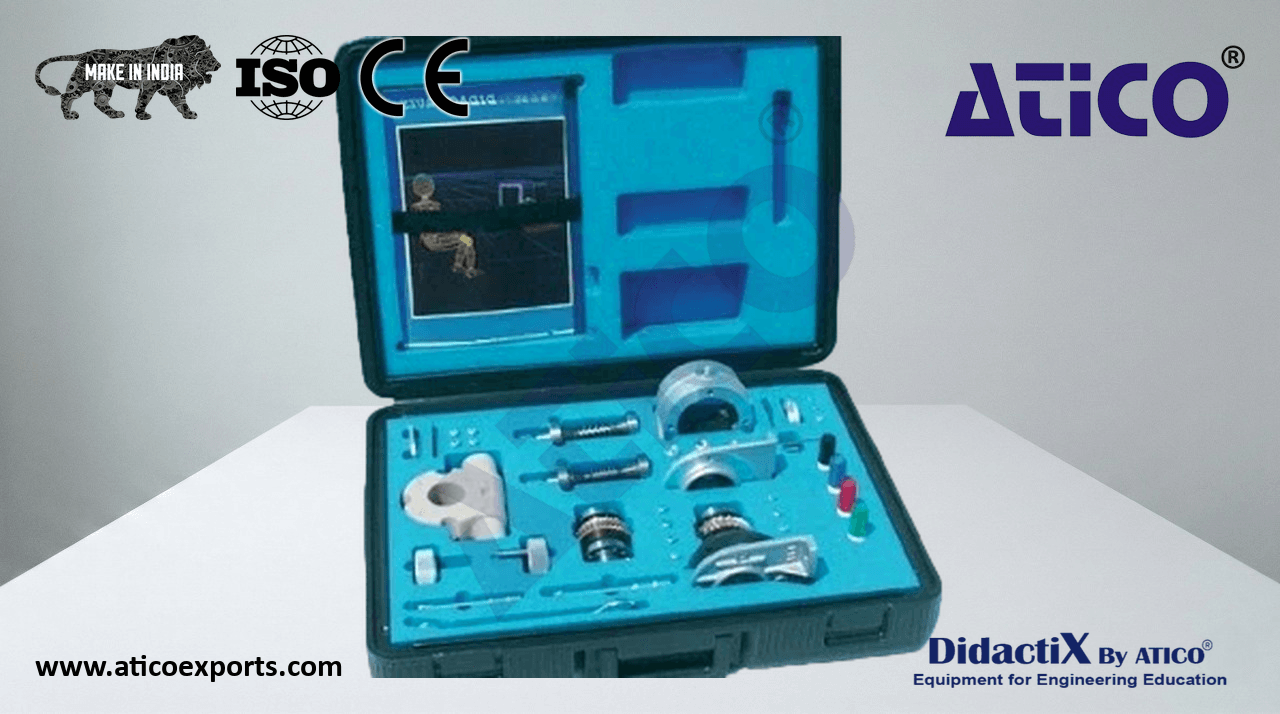

This kit allows the study of a worm gear reducer presented in 2 versions: basic version and version with integrated torque limiter. Educational Objectives: Competitiveness of industrial products, functional analysis, construction of mechanical joints, comparative study of 2 rotation guidance systems, discovering product–material–process relationships.

Composition

• 1 basic reducer (housings, flanges)
• 1 output shaft equipped with a reversible-pitch worm wheel
• 1 output shaft equipped with a non-reversible-pitch worm wheel and a torque limiter
• 1 reversible-pitch worm screw
• 1 non-reversible-pitch worm screw
• 1 resin foundry core
• Tooling required for reducer assembly
• CD-ROM with educational and technical resources and 3D drawing files

1 basic reducer (housings, flanges)
1 output shaft equipped with a reversible-pitch worm wheel
1 output shaft equipped with a non-reversible-pitch worm wheel and a torque limiter
1 reversible-pitch worm screw
1 non-reversible-pitch worm screw
1 resin foundry core
Tooling required for reducer assembly
CD-ROM with educational and technical resources and 3D drawing files
