With this Z-WAVE Access Control, the user can acquire the following learning: star-up and registration of the control central, connecting the tablet or smartphone (not included), programming of each device based on rules and preset scenes.

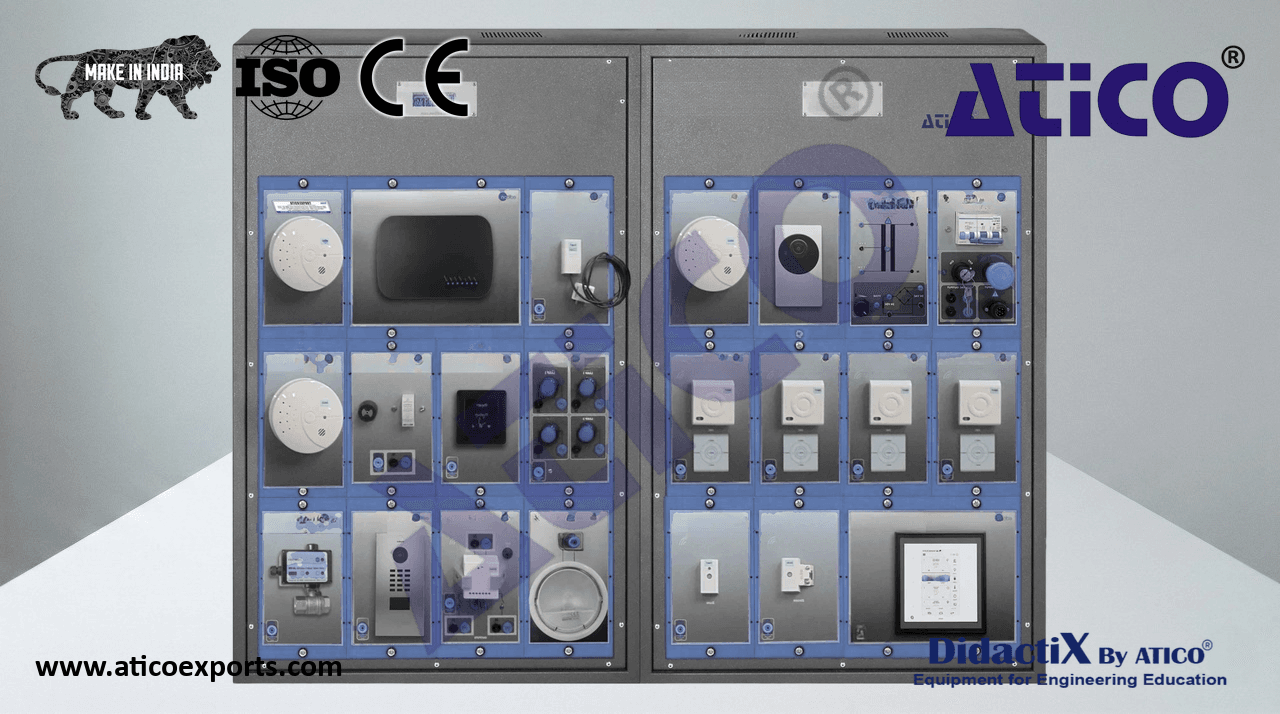

ATENG 11092 — Z-WAVE Access Control

• The “ZWAVE-UB” unit includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Supply voltage (Single-Phase): 230VAC PH+N+G.
• Output voltage:
• Single-Phase 24 VAC/12 VAC.
• 24 VDC.
• 0-24 VDC through potentiometer.
• N-ZCC01. Z-WAVE+ZigBee Control Central Module 1.
  Wireless access to Z-WAVE networks.
  Create custom scenes and sequences.
  Compatibility with ZigBee protocol.
  Control of a large number of devices connected at the same time.
• N-ZCT01. Z-WAVE+ZigBee Controller with Touch Screen 1.
  Wireless access to Z-WAVE networks.
  Create custom scenes and sequences.
  Compatibility with ZigBee protocol.
  Large number of integrated sensors compatible with most Z-WAVE devices.
  Automation of device control options.
  Touch screen.
• At least one of the following elements required to work with the “ZWAVE-UB” unit:
• ATENG 11084. Z-WAVE Anti Intrusion System.
• N-ZSSK. Z-WAVE Security Systems Keypad Module.
• Wireless technology: Z-WAVE protocol.
  Keyboard with Pincode for entrance control.
  PIN codes with 4 to 10 digits.
  PIN codes can be used to activate different scenes.
  Acoustic feedback.
• N-ZMS. Z-WAVE Motion and Temperature Sensor Module.
• Wireless Technology: Z-WAVE Protocol.
  Wireless Motion Detector.
  Detects movements with a passive infrared sensor.
  Temperature measurement.
• N-ZDWS. Z-WAVE Door and Window Sensor Module.
• Wireless Technology: Z-WAVE Protocol.
  Offers enhancements to sabotage, with instant detection of opening or closing of doors, windows or furniture.
  When activated for security functions, it allows accepting and sending security commands to other devices.
  Simple linking to the Z-WAVE automation system or controller.
• N-ZBB. Z-WAVE Burglary Vibration Module.
• Wireless Technology: Z-WAVE Protocol.
  Detects any vibration or shock registered in the base on which the device is mounted.
  The unit sends information to a controller or any other associated Z-WAVE device.
  The device remains “asleep” unless an action is detected.
  5

Specificacions

• N-ZINS. Z-WAVE Interior Siren Module.
• Wireless Technology: Z-WAVE Protocol.
  Provides different alarm sounds and a warning light.
  Self-protection contact against tampering or sabotage.
• ATENG 11086. Z-WAVE Flooding, Fire and Gas Security System.
• N-ZMVC. Z-WAVE Motorized Valve Controller Module.
• Wireless Technology: Z-WAVE Protocol.
  Consists of a motorized ball valve that automatically closes upon detection of fluid leakage or overflow.
  Can be used for irrigation control.
  The different states and/or events are sent to the Z-WAVE control unit.
• N-ZGS. Z-WAVE GLP Gas Sensor Module.
• Wireless Technology: Z-WAVE Protocol.
  Designed to avoid the risk of leakage of combustible gases (LPG).
  The sensor will remain in alarm as long as the density of the natural gas or LPG derivative (LPG) exceeds the preset maximum
  alarm level.
• N-ZSSD. Z-WAVE Siren and Smoke Detector Module.
• Wireless Technology: Z-WAVE Protocol.
  It has an integrated siren function to alert of smoke detection.
  Two-way wireless protocol with status messages.
• N-ZFS. Z-WAVE Flood Sensor Module.
• Wireless Technology: Z-WAVE Protocol.
  Warning of flooding due to water spillage, flooding or rapid temperature variation.
  Audible alarm.
• ATENG 11087. Z-WAVE Lighting Control.
• N-ZMTB. Z-WAVE Motion, Temperature and Brightness Sensor Module.
• Wireless Technology: Z-WAVE Protocol.
  Wireless Motion Detector.
  Detects movements with a passive infrared sensor.
  Temperature measurement.
  Light brightness measurement.
• N-ZPCM. Z-WAVE Plug with Consumption Measurement Module.
• Wireless Technology: Z-WAVE Protocol.
  Integrates directly into an electrical plug.
  Measurement of power consumption of the connected load.
  Local load control.
  Instantaneous consumption and total consumption values are sent to the Z-WAVE Control Unit.
• N-ZRPC Z-WAVE Radio Remote Control with 5 push-buttons.
• Wireless Technology: Z-WAVE Protocol.
  Control via the basic ON/OFF command.
  Control devices remotely by connecting this remote control to the Z-WAVE network.
• N-ZSS. Z-WAVE Surface Switch Module.
• Wireless Technology: Z-WAVE Protocol.
  Options as main domotic controller or as secondary Z-WAVE controller.
• N-ZPB. Z-WAVE Push-Button Module.
• Wireless Technology: Z-WAVE Protocol.
  Wireless control button.
  It allows to control the devices of the Z-WAVE network and to carry out several scenes that take place in the domotic system.
  6

Specificacions

• N-ZILD. Z-WAVE Incandescent Lighting Dimmer Control Module.
• Wireless Technology: Z-WAVE Protocol.
  Supports control of low-voltage halogen lamps with electronic transformer, dimmable compact fluorescent lights and dimmable
  LED bulbs.
  It allows the creation of complex scenarios.
• N-LAM16. Halogen Lamp.
• Nominal voltage: 230 VAC (PH+N).
  Halogen lamp.
• Power: 60 W.
• N-ZVL. Z-WAVE Variable Led Lamp Module.
• Wireless Technology: Z-WAVE Protocol.
  LED white light bulb that can be controlled remotely.
  Adjustable brightness.
• N-REF. Single-Phase Fixed Resistor.
• Value: 150 ohm.
• Maximum power: 500 W.
• Selector:
• Position 0:circuit opened.
• Position 1: circuit closed.
• Current fuse: 2 A.
• ATENG 11089. Z-WAVE Heating Control.
• N-ZTH. Z-WAVE Thermostat Module.
• Wireless Technology: Z-WAVE Protocol.
  Can be used with external temperature sensors.
  Several scenarios can be programmed.
  Integrated sensors.
  Power regulator.
• N-ZRVT. Z-WAVE Radiator Valve with Temperature Sensor Module.
• Wireless Technology: Z-WAVE Protocol.
  The thermostatic head can use an external or integrated temperature sensor.
  Compatible with any Z-WAVE controller.
  Functional control of heating system and temperature.
  Smart thermostatic head allows cooperation with other thermostatic heads, installed in several radiators.
• N-ZMTBD. Z-WAVE Motion, Temperature, Brightness, Door Sensor Module.
• Wireless Technology: Z-WAVE Protocol.
  Wireless Motion Detector.
  Detects movements with a passive infrared sensor.
  Temperature measurement.
  Light brightness measurement.
  Protection against theft and sabotage.
  Motion and temperature alerts.
• EH. Electric Heating Unit.
• Wireless Technology: Z-WAVE Protocol.
  Thermoelectric emitter.
  Smart self-programmable thermostat.
  Programmable function for different events.
  Thermostat with temperature sensors for internal temperature control.
• ATENG 11090. Z-WAVE Video Surveillance.
• N-ZSC. Z-WAVE Surveillance Camera Module.
• Wireless Technology: Z-WAVE Protocol.
  Z-WAVE home automation controller with camera.
  Day and night use.
  Synchronized audio/video can be monitored.
  With this controller, it is possible to control/monitor different Z-WAVE devices.
  7

Specificacions

• ATENG 11092. Z-WAVE Access Control.
• N-ZEL. Z-WAVE Electronic Lock Module.
• Wireless Technology: Z-WAVE Protocol.
  Different adjustment possibilities for closing and opening.
  Automatic Calibration.
  Notifications of access and closing of the lock.
  Complete activity record.
• N-ZVES. Z-WAVE Video Entry System Module.
• Wireless Technology: Z-WAVE Protocol.
  Remote access control and monitoring system.
  Call notification that warns of the presence of a person.
  Integrated motion detector allows adding a security function to the video door entry system.
• Components: Speakers, microphone and dynamic camera.
• ATENG 11093. Z-WAVE Shutter Control.
• N-ZMC. Z-WAVE Shutter Motor Controller Module.
• Wireless Technology: Z-WAVE Protocol.
• Module type: receiver.
  Installation in universal mechanism box.
  Allows the control of motorized roller shutters manually or remotely or through the Control Unit in the Z-WAVE network.
• N-ZPB. Z-WAVE Push-Button Module.
• Wireless Technology: Z-WAVE Protocol.
  Wireless control button.
  It allows to control the devices of the Z-WAVE network and to carry out several scenes that take place in the domotic system.
• N-MRS. Motorized Roll-Up Shutter.
• Wireless Technology: Z-WAVE Protocol.
  Serves to control shutters in the Z-WAVE system.
  The unit is equipped with an anti-load safety system that works as a detector of the correct closing of the shutter.
• Required element to operate with “ZWAVE-UB” unit:
• AEL-PC. Touch Screen and Computer.
• Touch Screen:
• Energy efficiency class: A.
• Screen diagonal: 68.6 cm (27 inch (s)).
• Power consumption (operating): 26 watts.
• Annual energy consumption: 38 kWh.
  Power consumption (standby / off) 0.49 watts.
• Screen resolution: 1920 x 1080 pixels.
• Computer:
• Processor Number: Intel Core i7-6600U Processor (4M Cache, up to 3,40 GHz).
• Cache: 4 MB Intel Smart Cache.
• Clock speed: 2.6 GHz.

• Of Cores/# of Threads: 2/4.

• Max. TDP/Power: 15 W.
• Memory Types: DDR4-2133, LPDDDR3-1866, DDR3L-1600.
• Graphics: Intel HD Graphics 530.Slot for PCI Express.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
