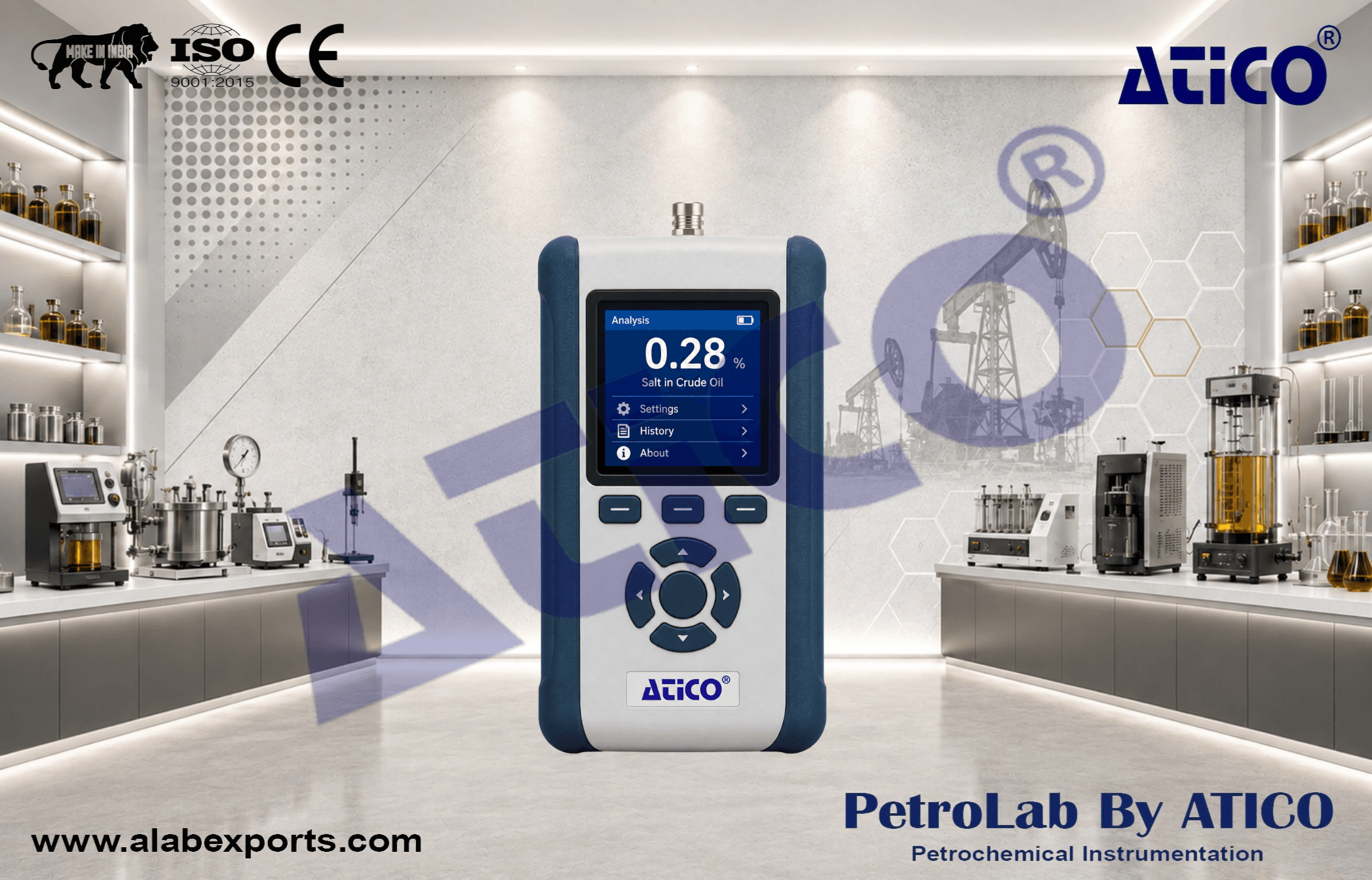

Salt In Crude Analyzer for Petroleum Testing Equipment

The Portable Salt in Crude Oil Analyzer is designed to determine salt content, conductivity and temperature in crude oil samples in accordance with ASTM D3230. It uses low-voltage synchronous detection technology for conductivity measurement and a high-accuracy thermistor array for temperature monitoring. The instrument automatically calculates salt concentration using measured conductivity and temperature values. Its self-calibration feature allows adjustment for measurement drift without re-entering standard temperature curves. The easy-to-read 2.6-inch TFT-LCD display presents multiple measurement parameters, while the portable design and rechargeable battery make it suitable for both field and laboratory testing.

Manufactured by Atico Export with a focus on precision, durability and consistent performance in petroleum testing laboratories.

• Determination of salt content in crude oil
• Measurement of electrical conductivity in crude oil samples
• Temperature measurement during petroleum testing
• pH measurement of aqueous samples
• Field testing and laboratory quality control
• Petroleum analysis and refinery process monitoring

Display Parameters :

• Salt concentration
• Conductivity
• Conductivity at 25°C
• pH
• pH millivolts
• Temperature
• Battery level
• Date and time
• Instrument status indicator

Technical Specifications :

Applicable Standard :

• ASTM D3230

Salt Concentration Range :

• 0 to 150 PTB (lb/1000 bbl)

Display :

• 2.6-inch TFT-LCD

Data Storage :

• Up to 12 test results

Power Supply :

• Lithium-polymer battery
• Dual power adapter

Dimensions (L × W × H) :

• 23 × 10.8 × 6.5 cm

Net Weight :

• Approximately 1 kg

Shipping Weight :

• Approximately 2.75 kg

Shipping Volume :

• 1.5 cu. ft. (as specified)

Standard Accessories :

• 100 mL beaker
• Carrying case
• Electrode cap assembly
• Temperature probe and wire assembly
• Dual power adapter
• Calibration jack

Optional Accessories :

• 100 mL borosilicate beaker
• 5-pin male cable, 1 meter
• Carrying case
• Electrode cap assembly
• Dual power adapter, 115/230 V
• Calibration jacks
• Benchtop stand
• Mixed salts solution, 100 mL
• Mixed salts solution, 500 mL

• Conforms to ASTM D3230 and related test specifications
• Measures salt concentration, conductivity and temperature
• Supports pH measurements of aqueous samples
• Salt concentration measurement range of 0 to 150 PTB (lb/1000 bbl)
• Low-voltage synchronous detection technology
• High-accuracy thermistor array for temperature measurement
• Automatic salt concentration calculation
• Self-calibration feature for correcting measurement drift
• Portable design with rechargeable lithium-polymer battery
• Stores up to 12 test results
• 2.6-inch TFT-LCD display
• Displays multiple measurement parameters simultaneously
• Supports temperature display in °C or °F
