Electric Field Apparatus

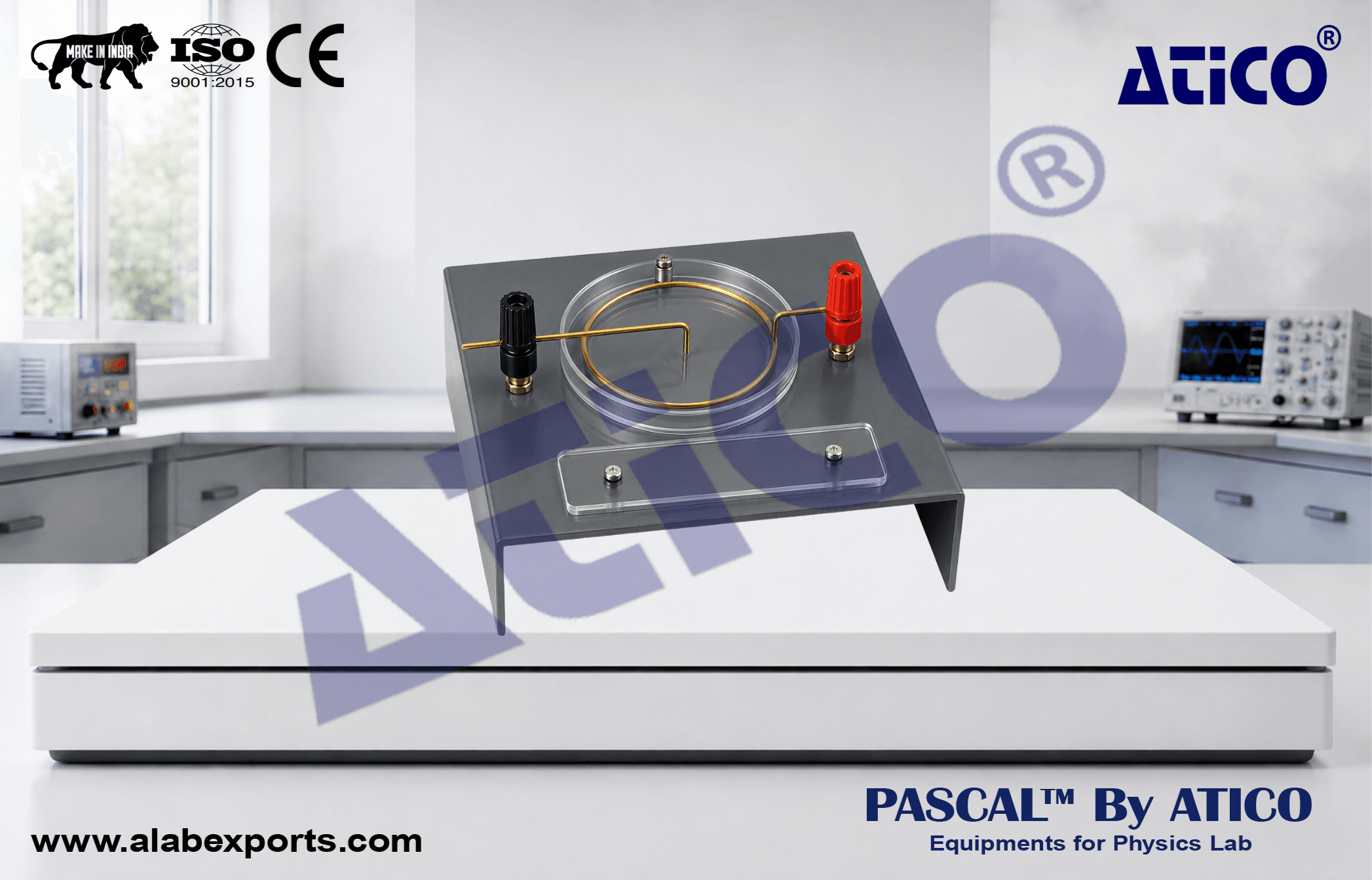

The Electric Field Apparatus is designed to demonstrate electric field patterns in a clear and visual manner, similar to the way magnetic field patterns are demonstrated using iron filings. It allows students to observe electric field lines either by direct viewing or through an overhead projector. The apparatus consists of a clear plastic dish mounted on an acrylic base, with a pair of 4 mm socket terminals for connecting the electrodes. Thumb-screw arrangements are provided beside each terminal for precise height adjustment of the electrodes. Six electrodes of different shapes are supplied, including point-source, line-source, and circular-ring electrodes. The dish can be filled with oil and the selected electrodes positioned just below the surface. Iron filings are then sprinkled into the oil and gently connected to the patterns formed around the electrodes, making the electric field distribution clearly visible. Designed and manufactured by Atico Export to meet the practical demands of modern laboratories.

Plastic Dish:

• Clear plastic dish, 90 × 12 mm (diameter × depth).

Base:

• Acrylic base, approximately 140 × 125 mm.

Electrodes:

• Six electrodes of different shapes.
• Two point-source electrodes.
• Two line-source electrodes.
• Two circular-ring electrodes.

Circular Ring Electrodes:

• Diameters: 35 mm and 70 mm.

Connections:

• 4 mm socket terminals for electrode connection.

Height Adjustment:

• Thumb-screw mechanism for fine adjustment of electrode height.
