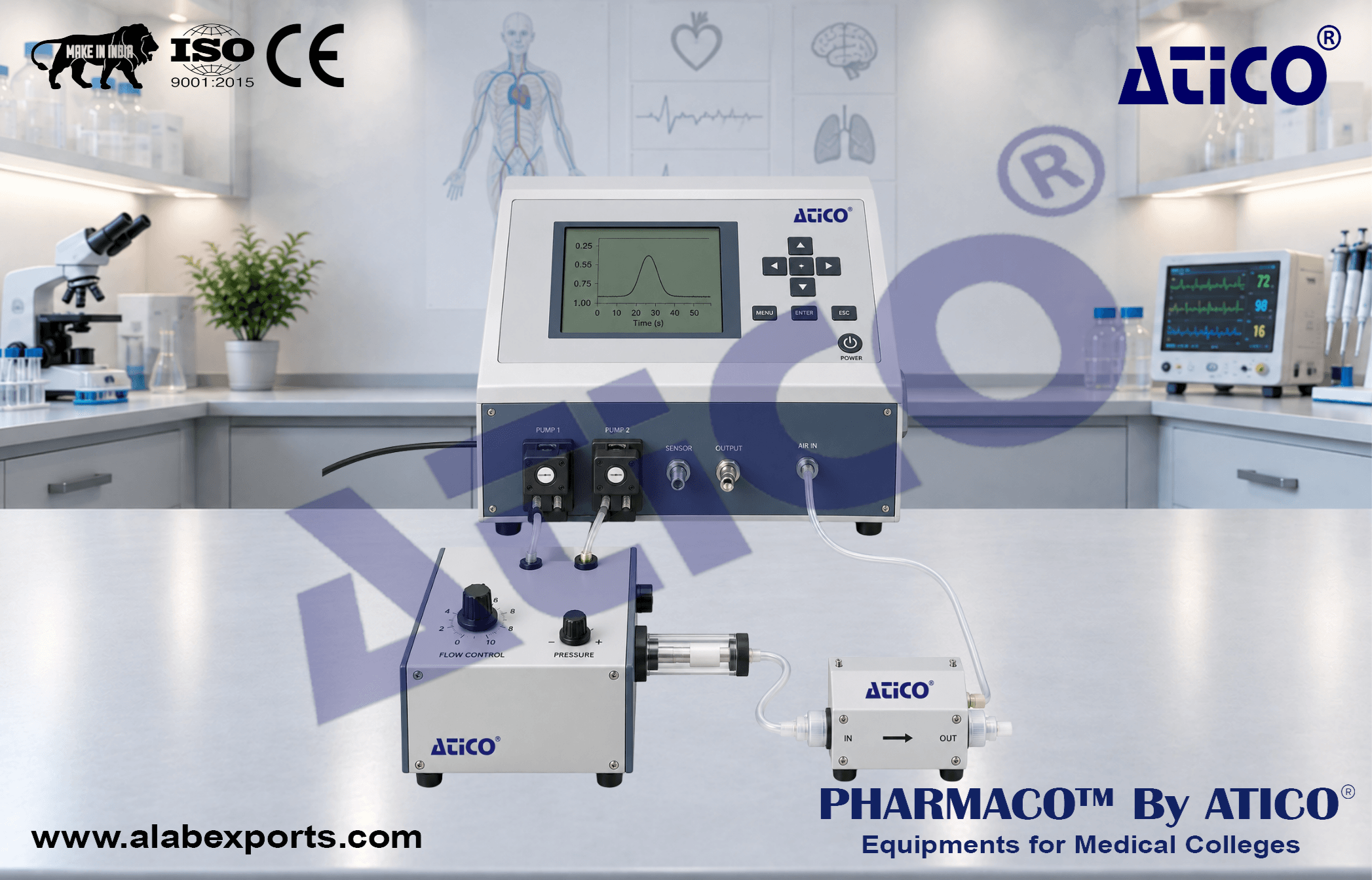

Capnograph for Small Rodents for Physiology Lab

Capnograph designed for rats and mice with a built-in highly sensitive infrared spectroscopy CO₂ sensor for accurate monitoring of respiratory CO₂ concentration in small animals. The pressure- and temperature-compensated sensor, very low sensor volume, optimized system volume and micro-pump provide accurate respiratory monitoring. The system also provides electronic compensation for signal interference during NO₂ anesthesia administration. Manufactured by Atico Export with a focus on precision, durability and consistent performance for physiological research and experimental laboratory use.

• Capnography
• Anesthesia monitoring
• Respiratory monitoring
• Respiratory studies in rats
• Respiratory studies in mice
• Mechanical ventilation monitoring

Tracheal Pressure Range :

• –10 to +80 cmH₂O

CO₂ Range :

• 0 to 10%

Airflow Range Mouse :

• ±3.00 ml/sec

Airflow Range Rat :

• ±30.00 ml/sec

Tidal Volume Range Mouse :

• 1.0 ml

Tidal Volume Range Rat :

• 5.0 ml

Respiratory Rate Range :

• 0 to 300 BPM

Output Signal Range :

• ±4 Volt

Sampling Rate Mouse :

• ~10 ml/min

Sampling Rate Rat :

• ~15 ml/min

Base Plate Dimensions (H × W × L) :

• 5.1 × 5.1 × 5.1 in (13 × 13 × 13 cm)

Base Plate Weight :

• 15 ml/min

Basic Measured Parameters :

• CO₂ concentration
• Respiration rate

Optional Extended Parameters :

• Peak Inspiratory Flow
• Peak Expiratory Flow
• Peak Inspiratory Pressure
• Positive End-Expiratory Pressure
• Tidal Volume
• Respiratory Rate
• Tracheal pressure
• Respiratory airflow

Extended Functions :

• Optional pressure sensor for measuring tracheal pressure
• Optional pneumotach with differential pressure transducer for measuring respiratory airflow
• Sensors can be mounted directly on the tracheal or intubation cannula
• Direct sensor mounting minimizes dead space
• Tracheal pressure and respiratory flow can be monitored during mechanical ventilation
• Supports verification of ventilation within normal physiological limits
• Helps avoid barotraumatic ventilation conditions

Output Signals :

• CO₂ waveform
• End-tidal CO₂ (EtCO₂)
• Extended configuration can provide respiratory flow
• Extended configuration can provide tracheal pressure
• Extended configuration can provide respiratory rate
• Extended configuration can provide tidal volume

Included Components :

• Capnograph unit
• CO₂ inlet tube
• Low-volume filter

Optional Accessories :

• Mouse flow pressure sensor
• Rat flow pressure sensor
• Mouse cannulating kit with ventilator adapter
• Rat cannulating kit with ventilator adapter
• Additional sensors for respiratory monitoring
• Laboratory stand

Control & Settings :

• Front-panel display
• Front-panel keypad
• RS232 interface
• Optional USB interface
• Software-based setting download capability

Analog Output :

• CO₂ waveform
• End-expiratory CO₂ (EtCO₂)
• Extended version provides additional respiratory monitoring signals

• Built-in highly sensitive infrared spectroscopy CO₂ sensor
• Pressure and temperature compensated sensor
• Very low sensor and system volume
• Micro-pump for accurate respiratory CO₂ monitoring
• Low system compliance
• Electronic compensation for interference during NO₂ anesthesia administration
• Basic measurement of CO₂ and respiration rate
• Analog output for CO₂ waveform and end-tidal CO₂
• Optional extended monitoring functions using additional sensors
• Low dead space when optional sensors are mounted directly on the tracheal or intubation cannula
• Front-panel display and keypad for system settings
• Settings can be downloaded through RS232 or optional USB connection
