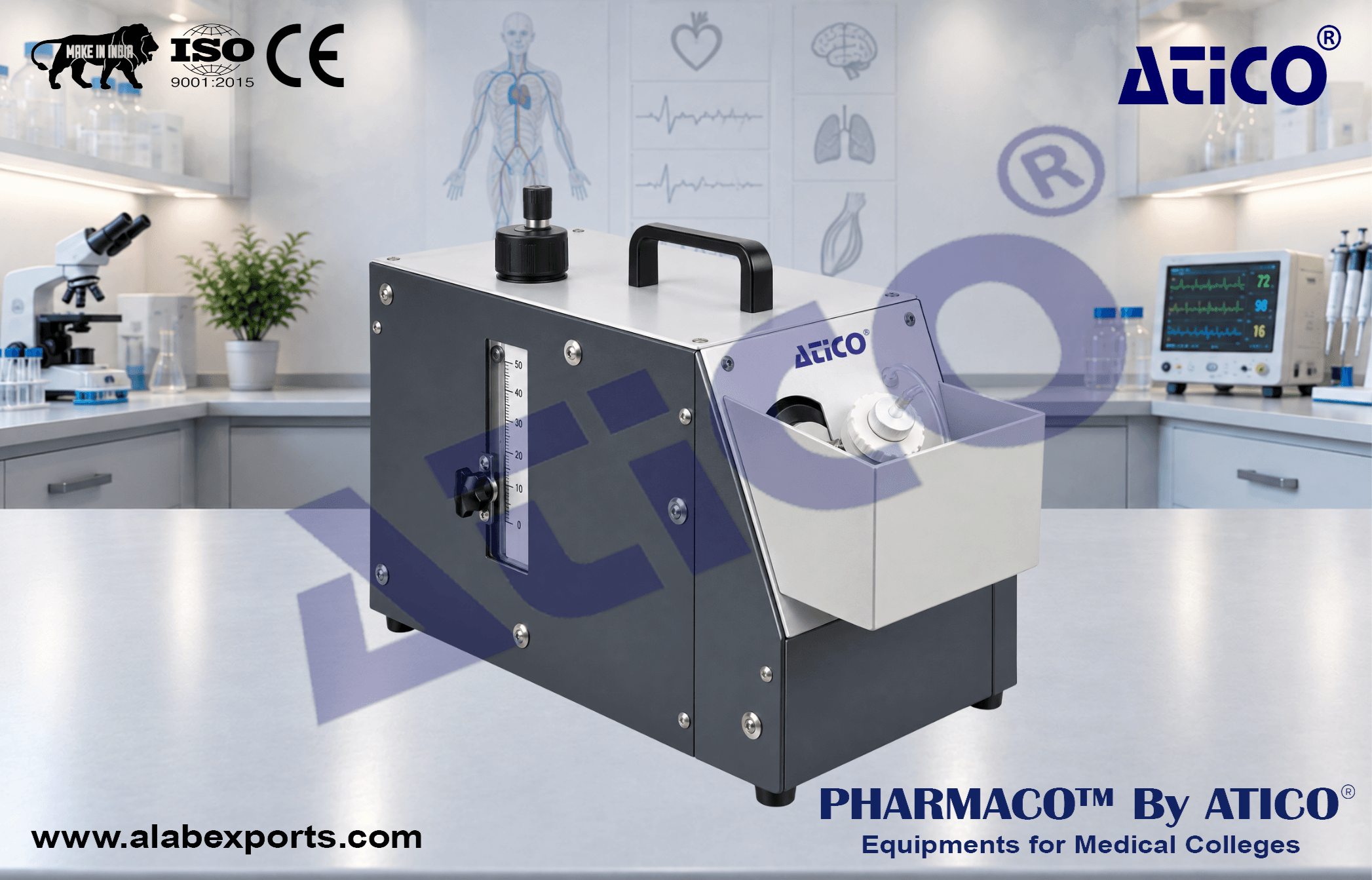

Cardiovascular Waveform Pump for Physiology Lab

The Cardiovascular Waveform Pump simulates the ventricular hemodynamic waveform of the heart, reproducing the temporal phasing of systole and diastole. It features silicone rubber-covered heart-type ball valves, smooth flow, and fluid-contacting components made from inert materials such as silicone rubber, acrylate, and PTFE. The pumping head is easy to disassemble and reassemble and can be sterilized. It is suitable for circulating emulsions, suspensions, non-Newtonian fluids such as blood, and aqueous solutions. Four models provide minute volume ranges from 1 to 200 mL, 10 mL to 2 L, 80 mL to 6 L, and 150 mL to 10 L. It is ideal for testing flow circuits and medical devices requiring ventricular hemodynamic flow morphology. Manufactured by Atico Export with a focus on precision, durability and consistent performance for physiological research and experimental laboratory use.

• Cardiovascular research
• Mock circulatory loops
• Ex vivo organ perfusion
• Flow circuit testing
• Medical device testing
• Simulation of ventricular hemodynamic flow
• Circulation of blood or blood-cell-doped solutions
• Circulation of non-Newtonian fluids
• Circulation of emulsions and suspensions

Pump Mechanism :

• Positive piston actuator and ball check valves provide the proportioning action
• Stroke rate multiplied by stroke volume provides an accurate indicator of flow rate
• Positive piston action prevents changes in flow rate despite variations in resistance or back pressure
• Piston always travels to the end of the ejection stroke, independent of the volume pumped

Available Minute Volume Ranges :

• 1 to 200 mL
• 10 mL to 2,000 mL
• 80 mL to 6,000 mL
• 150 mL to 10,000 mL

Model 1407 Specifications :

Stroke Volume Adjustable :

• 0.05 to 1.0 mL

Rate Stroke/Minute :

• 20 to 200

Minute Volume :

• 1 to 200 mL

Phasing :

• Fixed phase
• 35% systole
• 65% diastole

Piston Diameter :

• 1/4 in

Port ID :

• 0.25 in (6.35 mm)

Port OD :

• 0.325 in (8.26 mm)

Tube ID :

• 8 mm (0.31 in)

Dimensions H × W × D :

• 312 × 156 × 250 mm (12.3 × 6.1 × 9.9 in)

Weight :

• 7.3 kg (16 lb)

Voltage :

• 115 VAC, 50/60 Hz or 230 VAC, 50/60 Hz
• UK and EU models

Model 1405 Specifications :

Stroke Volume Adjustable :

• 0.5 to 10 mL

Rate Stroke/Minute :

• 20 to 200

Minute Volume :

• 10 to 2,000 mL

Phasing :

• Fixed phase
• 35% systole
• 65% diastole

Piston Diameter :

• 3/4 in

Port ID :

• 0.25 in (6.35 mm)

Port OD :

• 0.325 in (8.26 mm)

Tube ID :

• 8 mm (0.31 in)

Dimensions H × W × D :

• 312 × 156 × 250 mm (12.3 × 6.1 × 9.9 in)

Weight :

• 7.3 kg (16 lb)

Voltage :

• 115 VAC, 50/60 Hz or 230 VAC, 50/60 Hz
• UK and EU models

Model 1421 Specifications :

Stroke Volume Adjustable :

• 4 to 30 mL

Rate Stroke/Minute :

• 20 to 200

Minute Volume :

• 80 to 6,000 mL

Phasing :

• Adjustable phase
• 35 to 50% systole
• 65 to 50% diastole

Piston Diameter :

• 1-1/8 in

Port ID :

• 0.375 in (9.52 mm)

Port OD :

• 0.44 in (11.18 mm)

Tube ID :

• 11 mm (0.437 in)

Dimensions H × W × D :

• 500 × 212 × 337 mm (19.7 × 8.4 × 13.4 in)

Weight :

• 13.6 kg (30 lb)

Voltage :

• 115 VAC, 50/60 Hz or 230 VAC, 50/60 Hz
• UK and EU models

Model 1423 Specifications :

Stroke Volume Adjustable :

• 15 to 100 mL

Rate Stroke/Minute :

• 10 to 100

Minute Volume :

• 150 to 10,000 mL

Phasing :

• Adjustable phase
• 35 to 50% systole
• 65 to 50% diastole

Piston Diameter :

• 2 in

Port ID :

• 0.5 in (12.7 mm)

Port OD :

• 0.56 in (14.22 mm)

Tube ID :

• 14 mm (0.551 in)

Dimensions H × W × D :

• 500 × 212 × 337 mm (19.7 × 8.4 × 13.4 in)

Weight :

• 14.5 kg (32 lb)

Voltage :

• 115 VAC, 50/60 Hz or 230 VAC, 50/60 Hz
• UK and EU models

Fluid Compatibility :

• Blood
• Blood-cell-doped solutions
• Simulated blood solutions
• Non-Newtonian fluids
• Emulsions
• Suspensions
• Aqueous solutions

Important Note for Blood-Based Applications :

• When using blood or blood-cell-doped solutions, hemolysis may occur over time due to mechanical closing of the valves, stroke rate, and potentially the fluid pathway.
• Users are advised to determine changes in hematocrit and/or free hemoglobin at various time points during pumping.

• Reproduction of the ventricular hemodynamic waveform including temporal phasing of systole (dispensing) and diastole (refilling)
• Durable construction for hours of continuous operation
• Four flow rate range models
• Suitable for acute studies with blood
• Suitable for simulated blood solutions, other non-Newtonian solutions, and aqueous solutions
• Variable phasing available for larger models
• Pumping head can be easily disassembled and reassembled
• Pumping head can be sterilized
• Only inert materials contact the fluid
• Suitable for testing flow circuits and medical devices requiring ventricular hemodynamic flow morphology
