Compact Transducer Amplifier for Physiology Lab

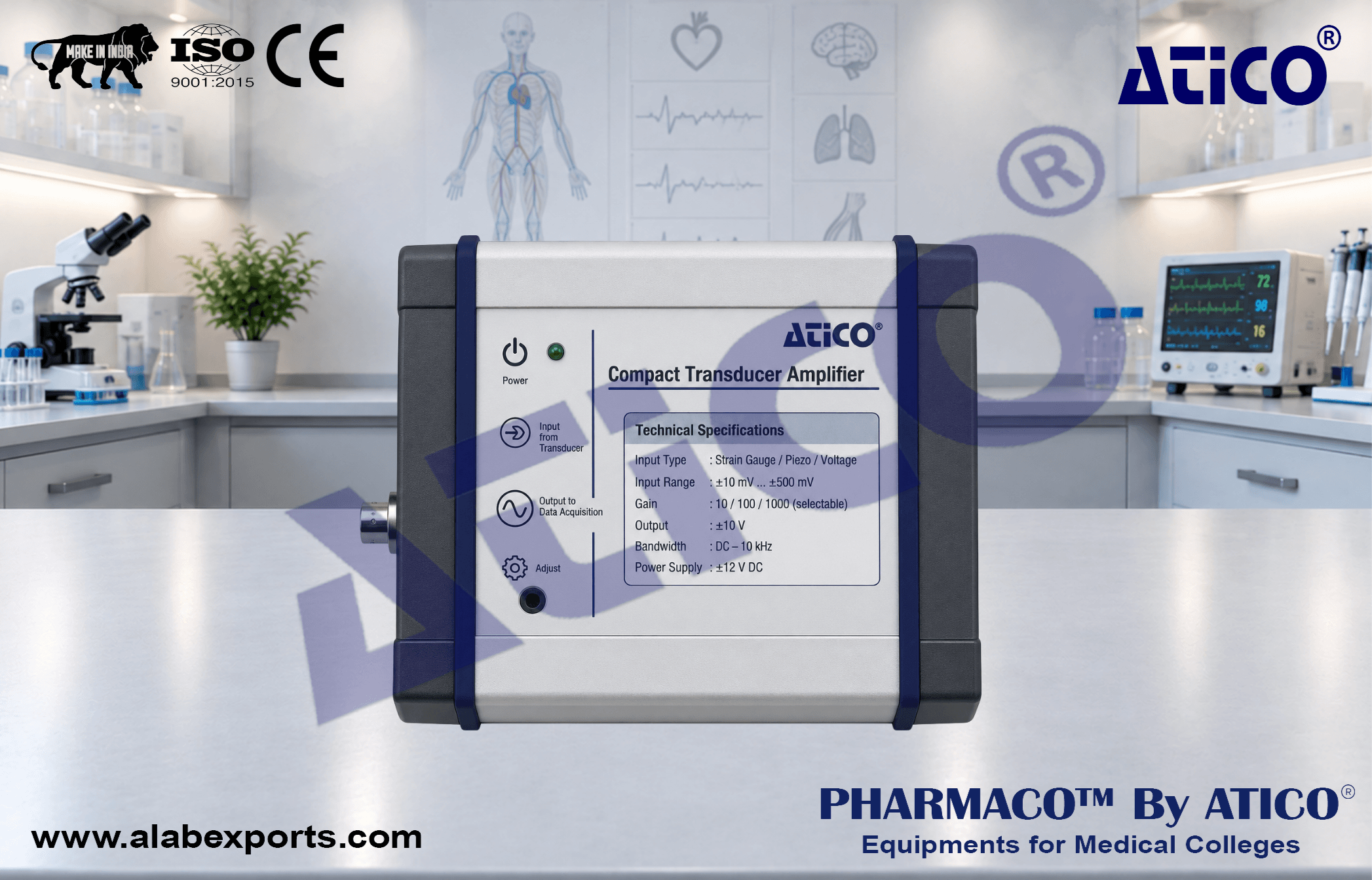

Compact DC bridge-based transducer amplifier and signal conditioner designed for pressure, force, displacement and other bridge-based transducers. The amplifier is factory adapted and calibrated for use with a specific transducer and cannot be modified for use with another transducer once configured. The amplifier and selected transducer must be ordered together. It provides 5 VDC transducer excitation, amplifies the signal and produces an output voltage in the range of ±4 V. Gain and zero offset can be adjusted using trimmer controls. The analog output can be connected to a suitable data acquisition system or other device accepting a high-level ±4 V signal. Manufactured by Atico Export with a focus on precision, durability and consistent performance for physiological research and experimental laboratory use.

• Physiological pressure measurement
• Force measurement
• Displacement measurement
• Bridge-based transducer signal conditioning
• Physiological signal data acquisition
• Experimental laboratory research

Included Components :

• Enclosed amplifier
• Universal power supply
• EU or US mains power cable
• Transducer adapter cable
• BNC-BNC output cable, 2 m
• Operating instructions

Compatible Transducers :

• Pressure transducers with ranges from -300 to 300 mmHg
• Low-range blood pressure transducers
• Manual pressure calibrator with range 0 to 300 mmHg
• Differential low-pressure transducer with range ±2.5 cmH₂O
• Differential pressure transducer with range ±100 cmH₂O
• Isometric force transducer with range ±20 g
• Isometric force transducer with range ±50 g

Frequency Response :

• DC to 1500 Hz

Transducer Excitation Voltage :

• 5 VDC, 100 mA maximum, Ri = 10 Ω

Output Voltage Range :

• ±4 V

Gain :

• 1 to 1000, factory adapted to the transducer
• Gain variable from 30 to 100% with fine-adjustment trimmer

Zero Offset :

• Manually adjustable with trimmer

Power Supply :

• External power supply
• Input voltage: 100 to 240 VAC, 50/60 Hz
• Output voltage: 12 VDC / 300 mA

Power Consumption :

• 100 mA maximum

• DC bridge-based transducer amplification and signal conditioning
• Suitable for pressure, force, displacement and other bridge-based transducers
• Factory adapted and calibrated for a specific transducer
• 5 VDC transducer excitation voltage
• Output voltage range of ±4 V
• Adjustable gain from 30 to 100% using a fine-adjustment trimmer
• Manually adjustable zero offset
• Universal power supply suitable for different countries
• Analog output suitable for data acquisition systems and compatible devices
• Compact enclosed amplifier design
