Einthoven Goldberger Module for Physiology Lab

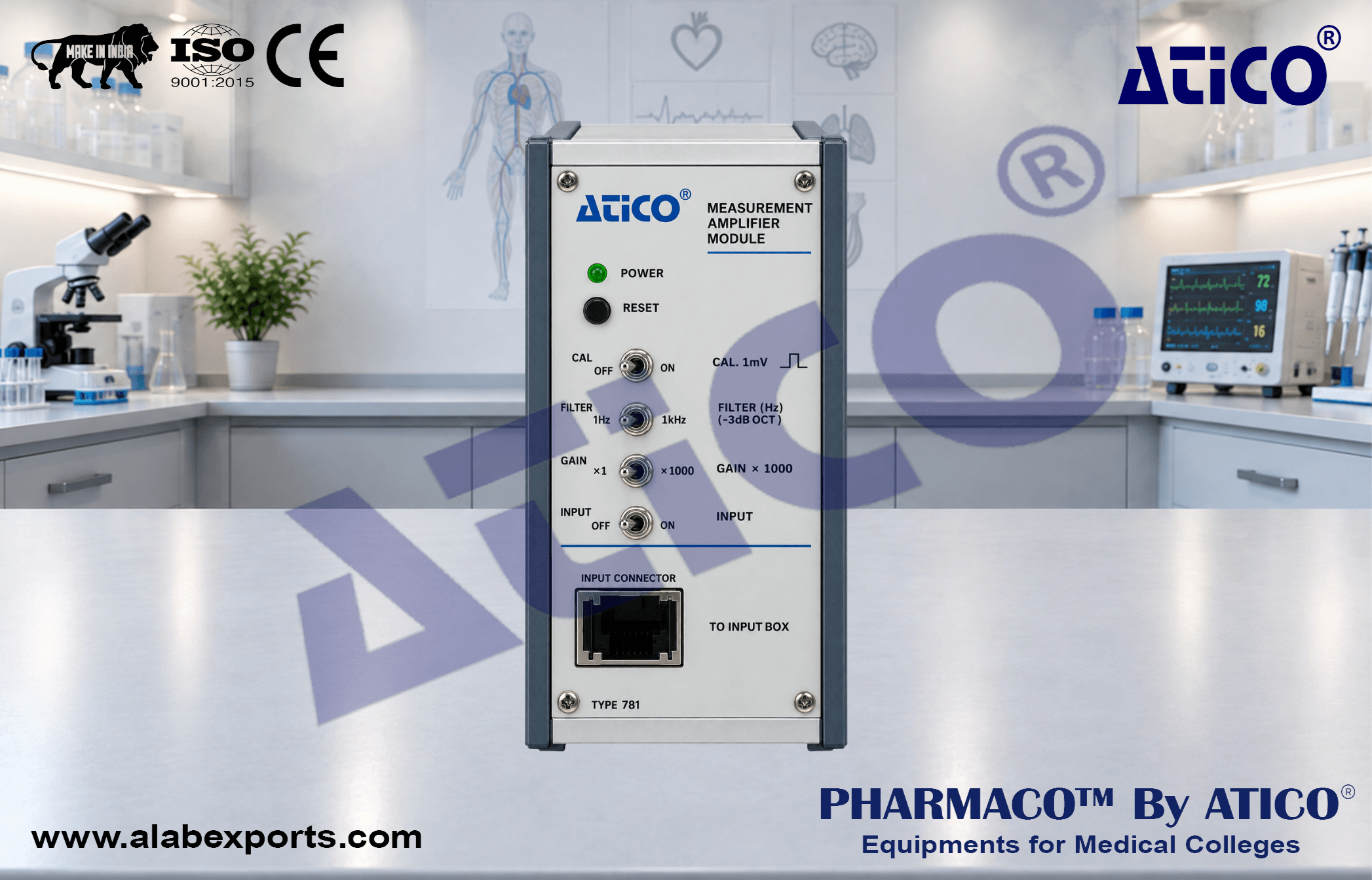

The Einthoven Goldberger ECG Amplifier Module is designed for capturing and amplifying ECG signals using Einthoven and Goldberger lead configurations for 6-lead ECG recording. It connects to four ECG electrodes and uses isolated input amplifiers to help avoid hum interference. The module provides bipolar Einthoven extremity leads I, II, and III as well as unipolar Goldberger extremity leads aVR, aVL, and aVF. The six ECG output signals can be connected to a system bus for recording or computer-based data acquisition. Manufactured by Atico Export with a focus on precision, durability and consistent performance for physiological research and experimental laboratory use.

ECG Inputs :

• RA – Right Arm
• LA – Left Arm
• LF – Left Foot
• RF – Right Foot (Reference)

Bipolar Einthoven Extremity Leads :

• Lead I: LA(+) - RA(-)
• Lead II: LF(+) - RA(-)
• Lead III: LF(+) - LA(-)

Unipolar Goldberger Extremity Leads :

• aVR: RA(+) - (LA + LF)/2(-)
• aVL: LA(+) - (RA + LF)/2(-)
• aVF: LF(+) - (RA + LA)/2(-)

Features & Benefits :

• Captures and amplifies 6-lead ECG signals
• Supports Einthoven and Goldberger lead configurations
• Four-electrode ECG input
• Isolated input amplifiers for reduced hum interference
• Six ECG output signals available
• Adjustable amplifier gain
• Multiple low-pass filter settings
• Fixed high-pass filter
• Built-in calibration signal
• Floating isolated input circuit
• ECG outputs can be connected to a system bus for recording or data acquisition

Calibration :

• Square-wave signal: 1 mV, 2 Hz
• Calibration signal activated using a switch

Gain :

• Setting ×0.5 to 500
• Setting ×1 to 1000
• Setting ×2 to 2000

High-Pass Filter :

• 0.1 Hz, fixed

Low-Pass Filter :

• 100 Hz
• 200 Hz
• 500 Hz

Input Circuit :

• Isolated input circuit
• Floating input
• Isolation voltage: 200 VDC maximum

Input Impedance :

• 107 ohm

ECG Input :

• 4-way input cable
• Connections: RA, LA, LF, and RF

Input Cable Options :

• 4-way ECG input cable with needles
• 4-way ECG input cable with banana plugs
• Input box with 4 + 6 inputs for stimulation applications and 6 unipolar Wilson chest leads (V1 to V6)

Connector :

• 96-pin VG connector according to DIN 41612
• 8-pin RJ-45

Recorder Output :

• Six ECG lead outputs can be linked to the system bus
• System bus connection can be used for recording or computer-based data acquisition

Power Supply :

• 5 V, 1.2 mA from the system bus

Module Width :

• 2 slot units

• 6-lead ECG recording
• ECG signal capture and amplification
• Einthoven lead configuration
• Goldberger lead configuration
• Physiological research
• Electrophysiological measurements
• Direct ECG recording
• Computer-based ECG data acquisition
