Electrocardiogram Amplifier Module for Physiology Lab

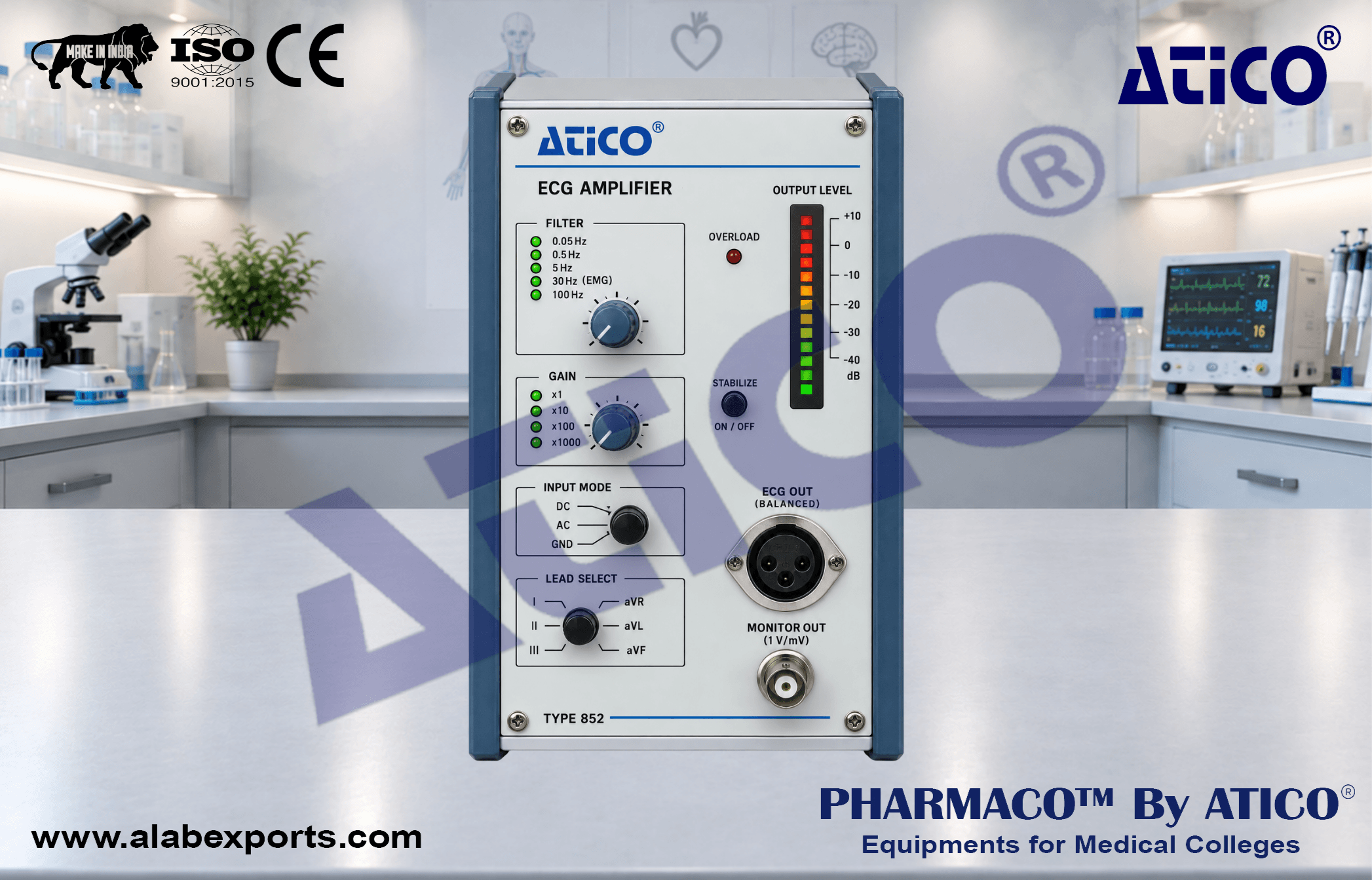

The Electrocardiogram (ECG) Amplifier Module is designed to amplify ECG signals and supports heart rates up to 1,000 beats per minute. It features a floating input circuit to help avoid hum and grounding problems. A bar graph display provides visualization of the ECG signal, while the filter system supports high heart rates. Both output channels can be used for chart recorder recording or data acquisition. An integrated square-wave signal generator provides 0.3 mV and 1 mV amplitudes for calibration. Manufactured by Atico Export with a focus on precision, durability and consistent performance for physiological research and experimental laboratory use.

• ECG signal amplification
• ECG recording
• Physiological research
• Electrophysiological measurements
• Chart recorder applications
• Computer-based data acquisition
• High heart-rate ECG measurements

Heart Rate Range :

• Up to 1,000 beats per minute

Input Circuit :

• Floating input circuit

Display :

• Bar graph display for ECG signal visualization

Outputs :

• Two outputs
• Suitable for chart recorder recording
• Suitable for data acquisition

Calibration Signal :

• Square-wave signal
• 0.3 mV amplitude
• 1 mV amplitude

• Amplifies ECG signals
• Supports heart rates up to 1,000 beats per minute
• Floating input circuit helps avoid hum and grounding problems
• Bar graph display for ECG signal visualization
• Filters suitable for heart rates up to 1,000 beats per minute
• Two output channels for recording or data acquisition
• Integrated square-wave signal generator for calibration
• Calibration signal amplitudes of 0.3 mV and 1 mV
• Suitable for use with an R-wave trigger module
