Electronic Von Frey for Behavioral Research test

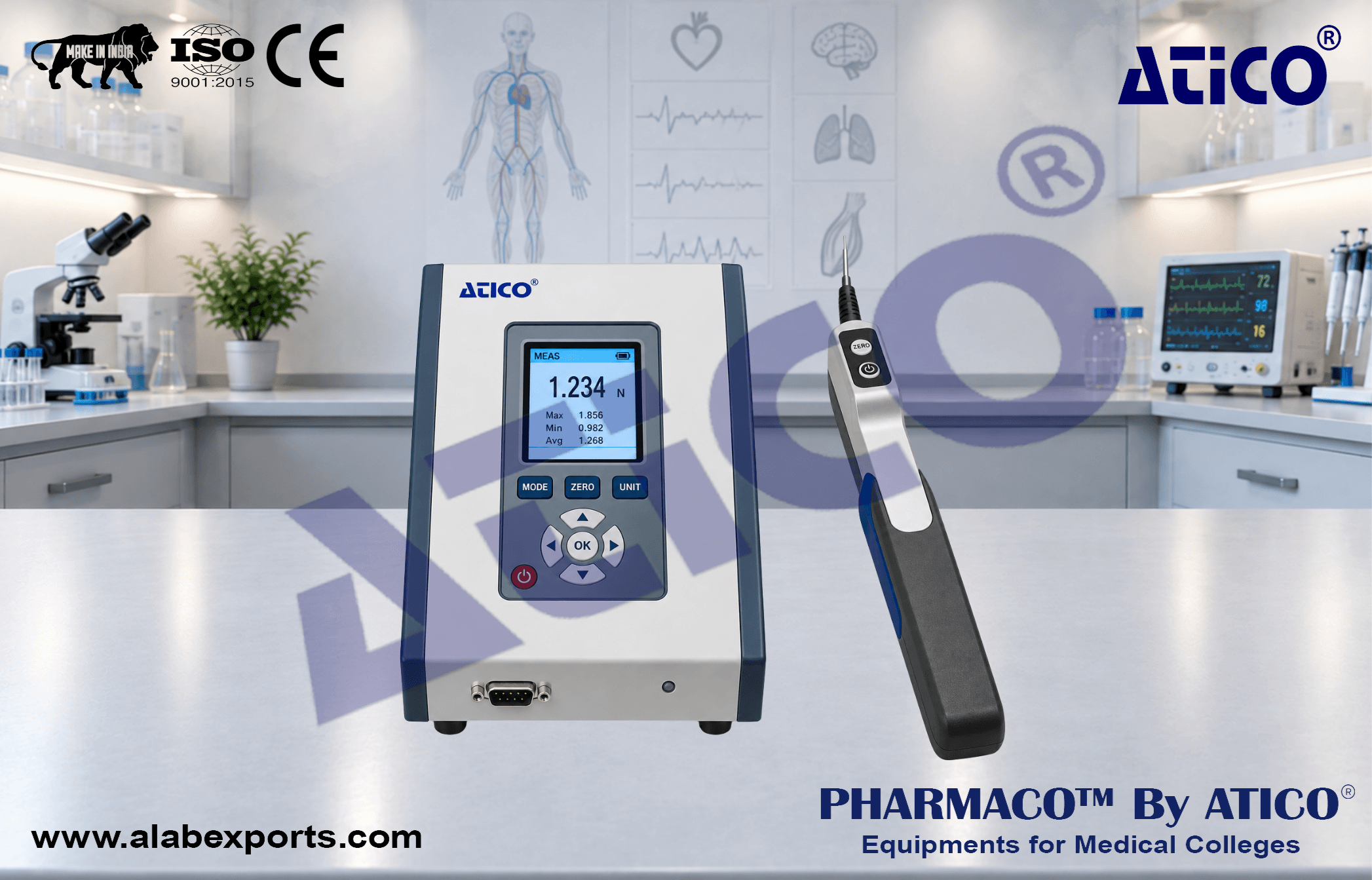

The Electronic Von Frey is designed for rapid and reproducible determination of mechanical sensitivity thresholds in rodents. The stimulus is applied to the central edge of the animal hind paw, and the paw withdrawal response is detected while the corresponding applied force is recorded and displayed on the instrument. The system provides objective measurement without the temperature or humidity drift associated with conventional manual filaments, while the threshold can be obtained in a single test. The ergonomic stimulus handle, interchangeable hard and soft tips, automatic endpoint recording, and optional embedded video provide convenient and accurate stimulation positioning. The system can also display real-time force curves and store measurement values for further analysis. Manufactured by Atico Export with a focus on reliable performance for animal nociception and mechanical sensitivity research.

• Mechanical sensitivity threshold testing
• Nociception research
• Paw withdrawal response studies
• Pain sensitivity assessment
• Analgesic research
• Animal behavioral research
• Rodent neurological and sensory research

Measurement Range :

• 0 to 500 g (5 N)
• 120% overload allowed without causing damage to the sensor

Precision :

• Resolution: 0.1 g
• Accuracy: 0.2 g

Temperature Compensation :

• 0 to 50°C

Statistical Functions :

• Average value for each subject
• Standard deviation for each subject

Internal Memory :

• Up to 100 values

Power Supply :

• 220–240 V
• Other voltages available on request

Weight :

• 6.5 kg

Software :

• Computer-based analysis software available depending on configuration
• BIO-CIS
• BIOEVF software

Video Option :

• Available with the latest configuration

Video Resolution :

• 640 × 480

Video Frame Rate :

• 30 fps

Video Sensor :

• 1/3.7-inch lens, 1.39 mm, F2.4

Tablet Option :

• Available with tablet configuration

Animal Enclosure :

• Mouse: 6 compartments, 11 × 7 × 14 cm each
• Rat: 2 compartments, 22 × 11 × 14 cm each

Stand with Mesh Floor Dimensions :

• 100 cm W × 50 cm D × 30 cm H

Included Components :

• Control unit
• Stimulus handle
• Hard tips
• Soft tip
• Dust protection disk
• Footswitch
• Storage casing
• Software according to selected configuration

Optional Accessories :

• Animal enclosure
• Stand with mesh floor
• Replacement hard plastic tips
• Replacement elastic spring tip
• Tablet configuration

• Easy-to-use ergonomic stimulus handle
• Objective and accurate mechanical sensitivity measurements
• Rapid and highly reproducible threshold determination
• Automatic recording of endpoint values
• Eliminates filament standardization problems associated with manual filaments
• Provides stimulation over areas of equal size
• Hard plastic tip for rats
• Elastic spring tip for mice
• Battery-powered operation for several hours without mains connection
• Real-time force curve display
• Optional embedded video for visualization of the stimulation point
• Target pointer assists accurate paw stimulation
• Internal memory for up to 100 values
• Average value and standard deviation calculated for each subject
• Foot-switch operation
• Storage casing included
• Optional computer-based data recording and export
