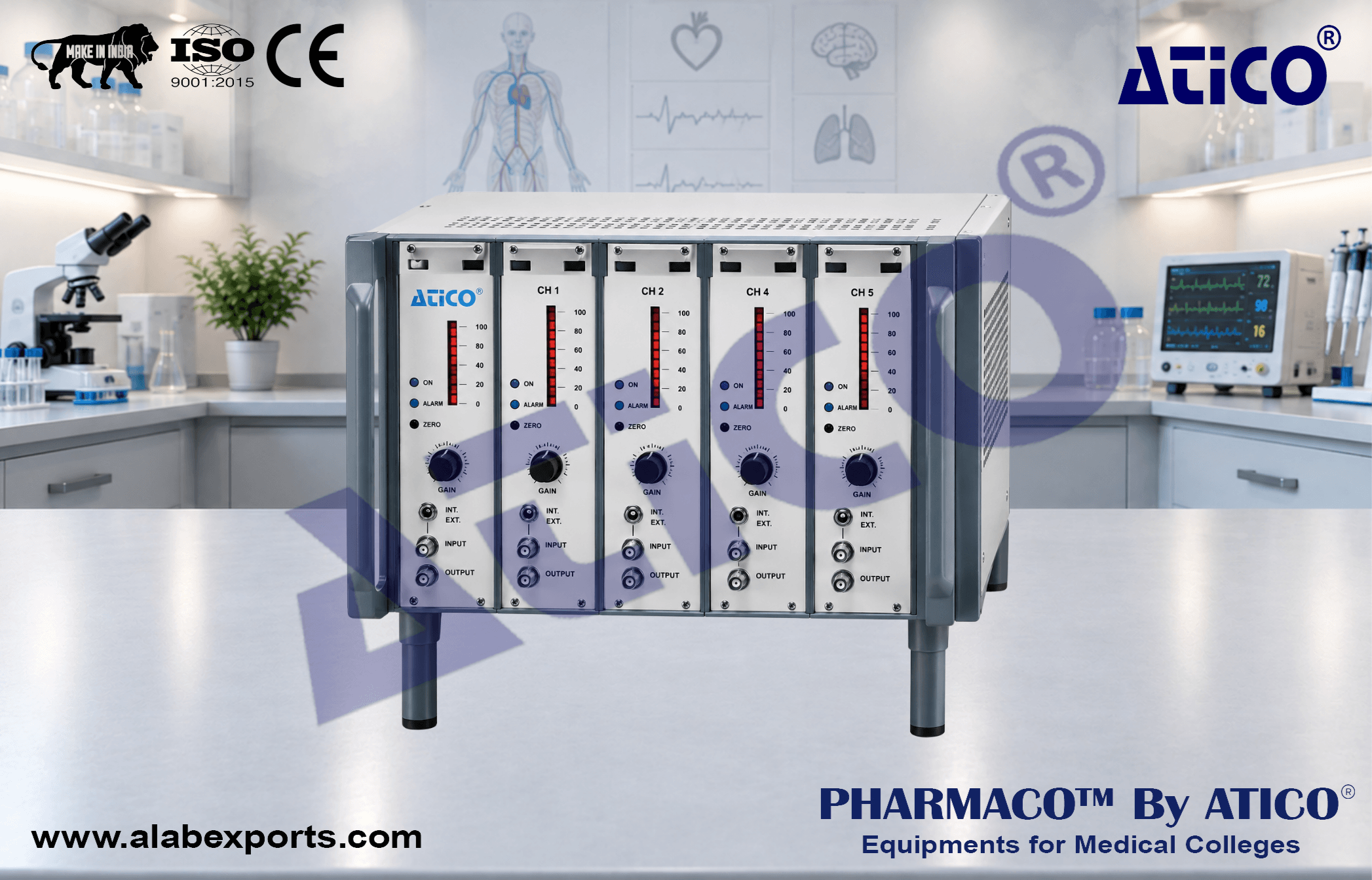

Instrument Case for Physiology Lab

The basic system case with an internal system bus is supplied completely wired and ready for use. The case provides a total space of 10 positions (slot units) for PLUGSYS modules. An additional 24 V power supply is available and is required only for some modules. PLUGSYS modules occupy one or multiple slot units depending on their individual width. For example, a Transducer Amplifier Module occupies two slot spaces. The maximum number of modules that can be installed depends on the number of slot units required by each module. Manufactured by Atico Export with a focus on precision, durability and consistent performance for physiological research and experimental laboratory use.

Accessories :

• Line cable
• Screwdriver for fitting function modules
• Document folder for operating instructions of function modules

Dimensions (H × W × D) – English :

• 5.9 × 9.25 × 16.5 in

Dimensions (H × W × D) – Metric :

• 150 × 235 × 420 mm

Housing Construction :

• Metallic housing
• Gray plastic coated
• Pivoting feet

Module Positions :

• Maximum 10 slot units

Power Supply :

• 85 to 264 VAC
• 40 Watts
• Output voltage: +5 VDC, 5 A

Additional Power Supply :

• 24 V power supply available for modules that require it

• Internal system bus
• Completely wired and ready for use
• Provides 10 slot units for modular installation
• Supports modules with one or multiple slot-unit widths
• Additional 24 V power supply available for modules requiring it
• Maximum module capacity depends on the slot requirements of individual modules
• Suitable for modular physiological measurement and control systems
