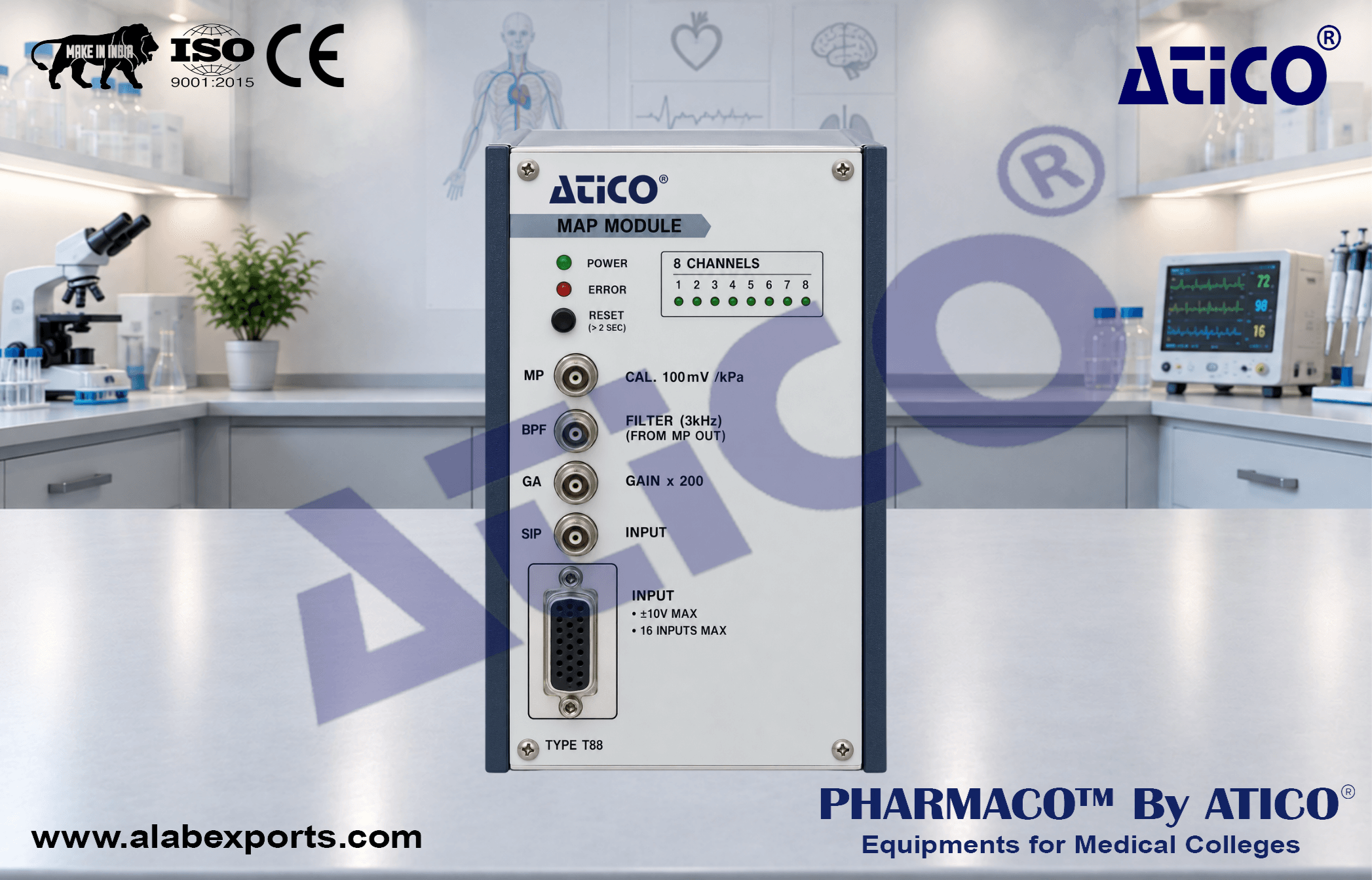

Monophasic Action Potential Module for Physiology Lab

Module designed for capturing and amplifying monophasic action potentials (MAPs). It incorporates isolated input amplifiers to minimize hum interference by electrically isolating the inputs from the output circuits and housing. Amplified MAP signals can be connected to the system bus for direct recording or computer-based data acquisition. A 10 mV square-wave calibration generator is incorporated for amplitude calibration. A separate connection box is required for connecting MAP electrodes, with individual channel switch-off facilities. Manufactured by Atico Export with a focus on precision, durability and consistent performance for physiological research and experimental laboratory use.

• Recording monophasic action potentials
• Amplification of physiological electrical signals
• Electrophysiological research and experimental studies
• Direct signal recording and computer-based data acquisition

• Amplifier type: DC amplifier with automatic zeroing, 6 channels
• Calibration: Square-wave signal, 10 mV, 2 Hz
• Common mode rejection: Better than 1 in 50,000 at 50 Hz
• Connector: 96-pin VG connector to DIN 41612 subminiature D 15-HD
• Filter: Low-pass filter, 1 kHz, 2 kHz and 5 kHz
• Gain:
  • Setting ×0.5 to 100
  • Setting ×1 to 200
  • Setting ×2 to 400
• Input circuit: Differential inputs, isolated floating input
• Maximum isolating voltage: 200 V DC
• Input impedance when switched on: 10¹⁰ Ω
• Input impedance when switched off: Approximately 5000 Ω
• Output: Six MAP signal outputs linked by jumpers to the system bus; connection to a display unit through a recorder output module
• Module width: 3-slot unit
• Power supply: 5 V, 1.2 mA from the system bus
• Zeroing: Voltage range

Input Box :

• Required separately for connection of MAP electrodes
• Six differential inputs
• Sockets suitable for 2 mm diameter plug pins
• Approximately 2 m connecting cable
• Individual channel switch-off facility
• Should be positioned close to the electrodes to minimize the length of unscreened electrode leads

Available Components :

• Six-channel monophasic action potential module
• Separate six-channel input box with connection cables

• Captures and amplifies monophasic action potentials
• Six-channel configuration
• Isolated input amplifiers for reduced hum interference
• Electrically isolated inputs from output circuits and housing
• Amplified signals can be connected to the system bus
• Supports direct recording through a recorder output module
• Supports computer-based data acquisition
• Built-in 10 mV square-wave calibration generator
• Individual channel switch-off facility through the separate input box
• Six differential input channels
• Floating and isolated input circuit
• Low-pass filter settings of 1 kHz, 2 kHz and 5 kHz
• Adjustable gain settings
