Mouse Misstep Wheel for Physiological Research Instrumentation

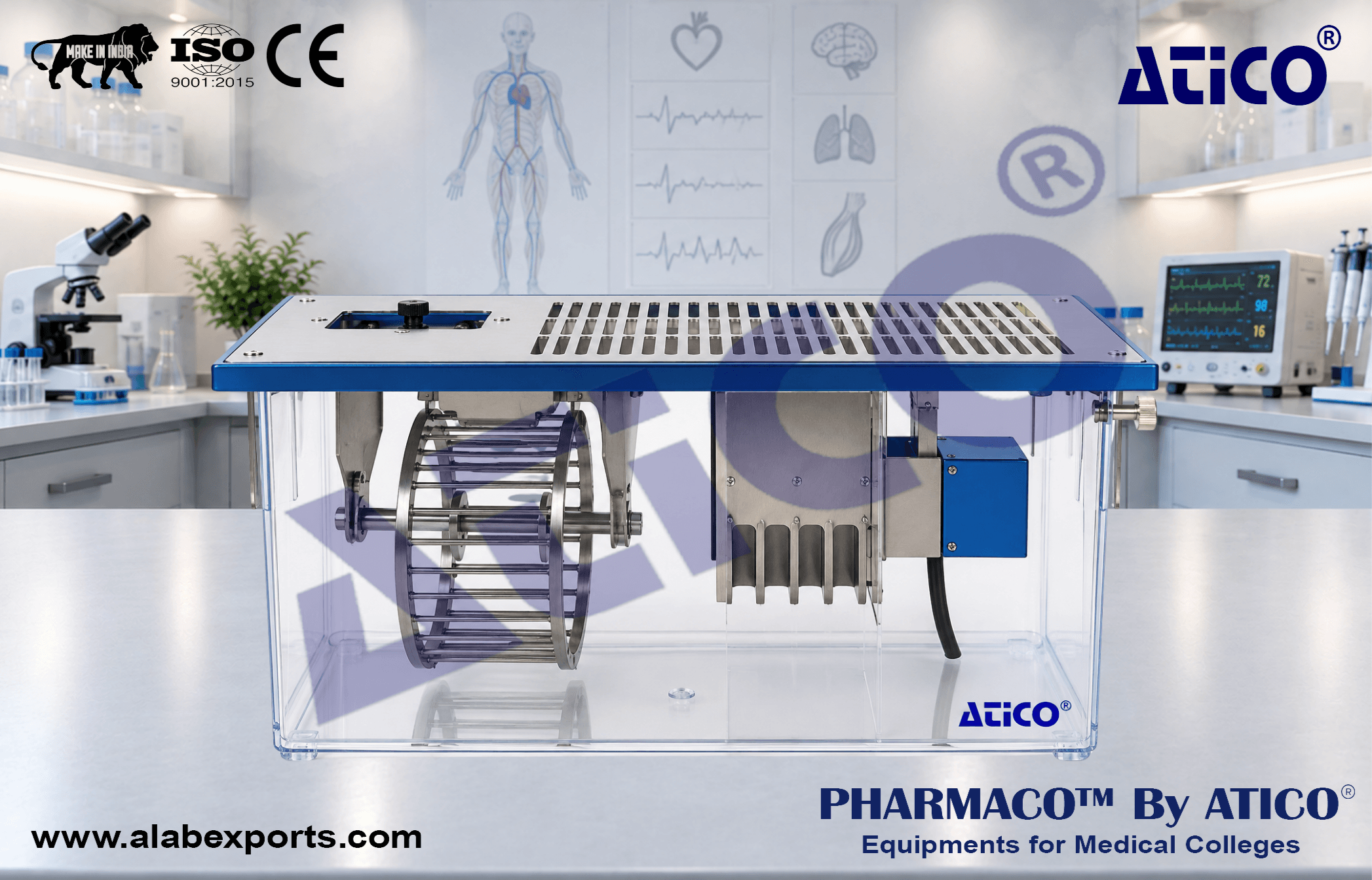

The Mouse Misstep Wheel is a complete activity wheel chamber designed for mouse locomotor and motor skill studies. It features individually removable rungs that can be arranged or removed to create complex wheel rung patterns similar to the Motor Skill Sequence (MOSS) test. The clear polycarbonate cage includes a stainless steel top cover, integrated food and water support, a removable lightweight anodized aluminum wheel, and a vented access hatch. The wheel operates with virtually friction-free movement on two low-friction bearings and can be easily removed for cleaning and maintenance. All major components can be removed together through the top cover, while the complete chamber can be disassembled for cleaning. The system includes both a standard wheel and a configurable misstep wheel. Manufactured by Atico Export with a focus on reliable performance, animal well-being and convenient maintenance for mouse activity and motor skill research.

Overall Dimensions :

• 13.9 × 9.25 × 7.875 in
• 35.3 × 23.5 × 20 cm

Weight :

• 5.8 lbs

Wheel Diameter :

• 5.0 in ID (12.7 cm)

Run Distance :

• 0.40 meters/revolution

Wheel Drag :

• Less than 3 grams

Run Surface :

• 38 rods
• Rod diameter: 0.188 in (4.8 mm)
• Rod spacing: 0.4298 in (10.9 mm) centers
• Gap: 0.2418 in (6.14 mm)
• Internal width: 2.25 in (5.72 cm)

Rung Configuration :

• Each of the 38 rungs can be individually removed
• Standard configuration uses all rungs in place
• Removable rungs allow customized wheel patterns

Wheel Material :

• Anodized aluminum

Animal Chamber Material :

• Clear polycarbonate

Top Cover :

• Stainless steel

Access Hatch :

• Removable stainless steel vented hatch

Wheels Included :

• Standard 38-rung wheel
• Configurable misstep wheel
