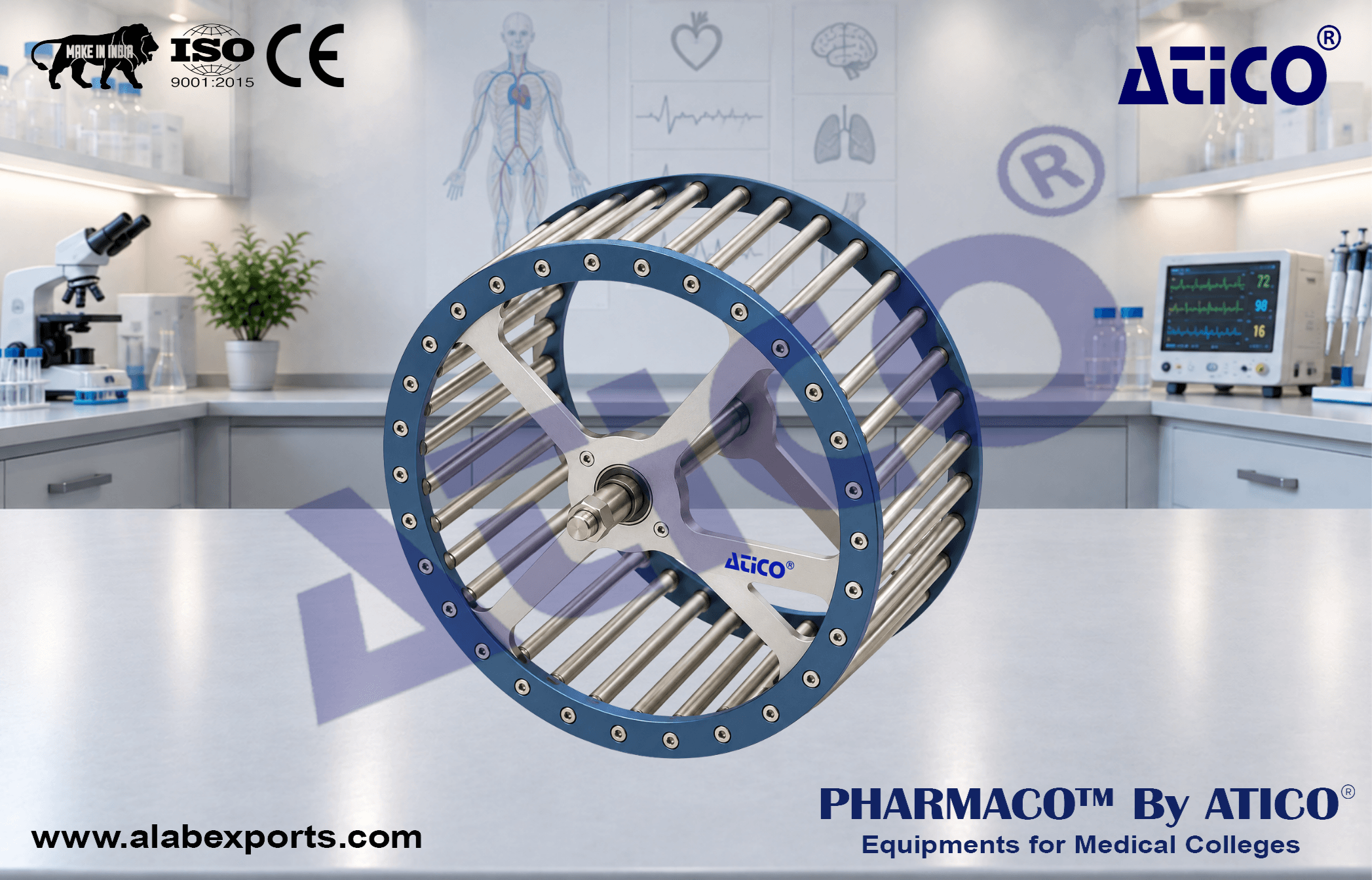

Replacement Mouse Activity Wheel for Physiological Research Instrumentation

The Replacement Mouse Activity Wheel is designed as a replacement wheel assembly for mouse activity wheel chambers, supporting high-throughput activity studies and convenient cleaning or wheel replacement. The assembly includes the activity wheel, wheel shaft, shaft cover, two low-friction bearings and two thumbscrews. It can be used to facilitate switching between different wheel configurations as required. The wheel features permanently fixed rods secured with rivets. Manufactured by Atico Export for reliable performance in mouse activity, exercise and behavioral research.

Unit Includes :

• Mouse activity wheel
• Wheel shaft
• Shaft cover
• Two low-friction bearings
• Two thumbscrews

Wheel Diameter :

• 5.0 in ID (12.7 cm)

Run Distance :

• 0.40 meters/revolution

Run Surface :

• 38 rods
• Rod diameter: 0.188 in
• Rod spacing: 0.4298 in centers
• Gap: 0.2418 in
• Approximate rod diameter: 4.8 mm
• Approximate rod spacing: 10.9 mm centers
• Approximate gap: 6.14 mm

Rod Construction :

• Permanently fixed with rivets
