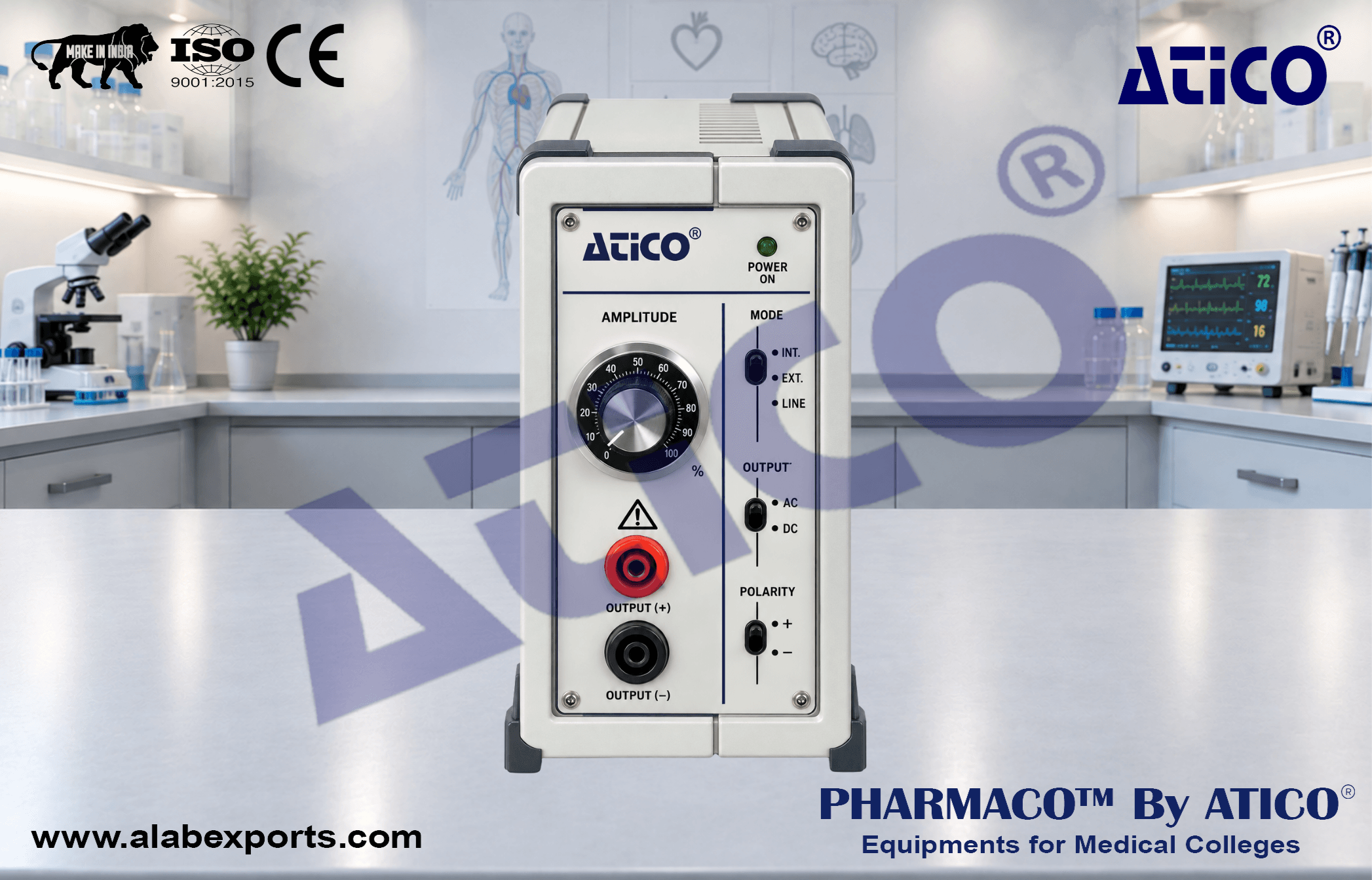

Universal Isolated Stimulator Output for Physiology Lab

The Universal Isolated Stimulator Output is designed to produce ungrounded, isolated, or floating electrical stimuli while preventing interference with simultaneously recorded biopotentials such as ECG, EMG, and EEG. It can be connected between a stimulator and stimulation electrode and is compatible with virtually any stimulator that provides a trigger pulse with timing and pulse width corresponding to the stimulus duration. It can also be connected to a TTL trigger output generated by computer software for use as a power amplifier. The unit provides adjustable output voltage ranges and supports positive, negative, or alternating stimulation. Manufactured by Atico Export with a focus on precision, durability and consistent performance for physiological research and experimental laboratory use.

• Electrophysiology
• Simultaneous biopotential recording
• Electrical stimulation of tissue in tissue baths
• Papillary muscle stimulation
• Intracellular action potential measurement applications
• Cell stimulation using field electrodes

Stimuli Output :

• Constant voltage
• Floating
• Isolated

Stimuli Output Current :

• 1.8 to 2 A for stimulus durations less than 100 µs
• 0.5 A at 10 ms stimulus duration

Stimuli Output Voltage :

• Two ranges: 0 to 50 V and 0 to 100 V

Stimuli Polarity :

• Positive
• Negative
• Alternating

Trigger Input Impedance :

• 10 kΩ

Trigger Input Width :

• 10 µs to 10 ms defines stimulus duration
• If trigger signal width exceeds 10 ms, stimulus duration is limited to 10 ms

Trigger Signal :

• 3 to 15 V
• Trigger level: 1.5 V
• Active low or active high
• Trigger polarity can be switched internally using a jumper

Dimensions (H × W × D) – English :

• 6.3 × 2.2 × 8.7 in

Dimensions (H × W × D) – Metric :

• 160 × 55 × 250 mm

Weight – English :

• 2.0 lbs

Weight – Metric :

• 1.3 kg

• Generates isolated stimuli from 0 to 100 V
• Floating and isolated output
• Compatible with virtually any stimulator providing a suitable trigger signal
• Output timing follows the trigger signal timing
• Can be used with TTL trigger output generated by computer software
• Can function as a booster output for computer-generated trigger signals
• Two selectable output voltage ranges
• Fine output adjustment using a 10-turn potentiometer
• Supports positive, negative, and alternating stimulation
• Alternating stimulation helps avoid electrode polarization
• Suitable for high-voltage field stimulation in tissue baths
