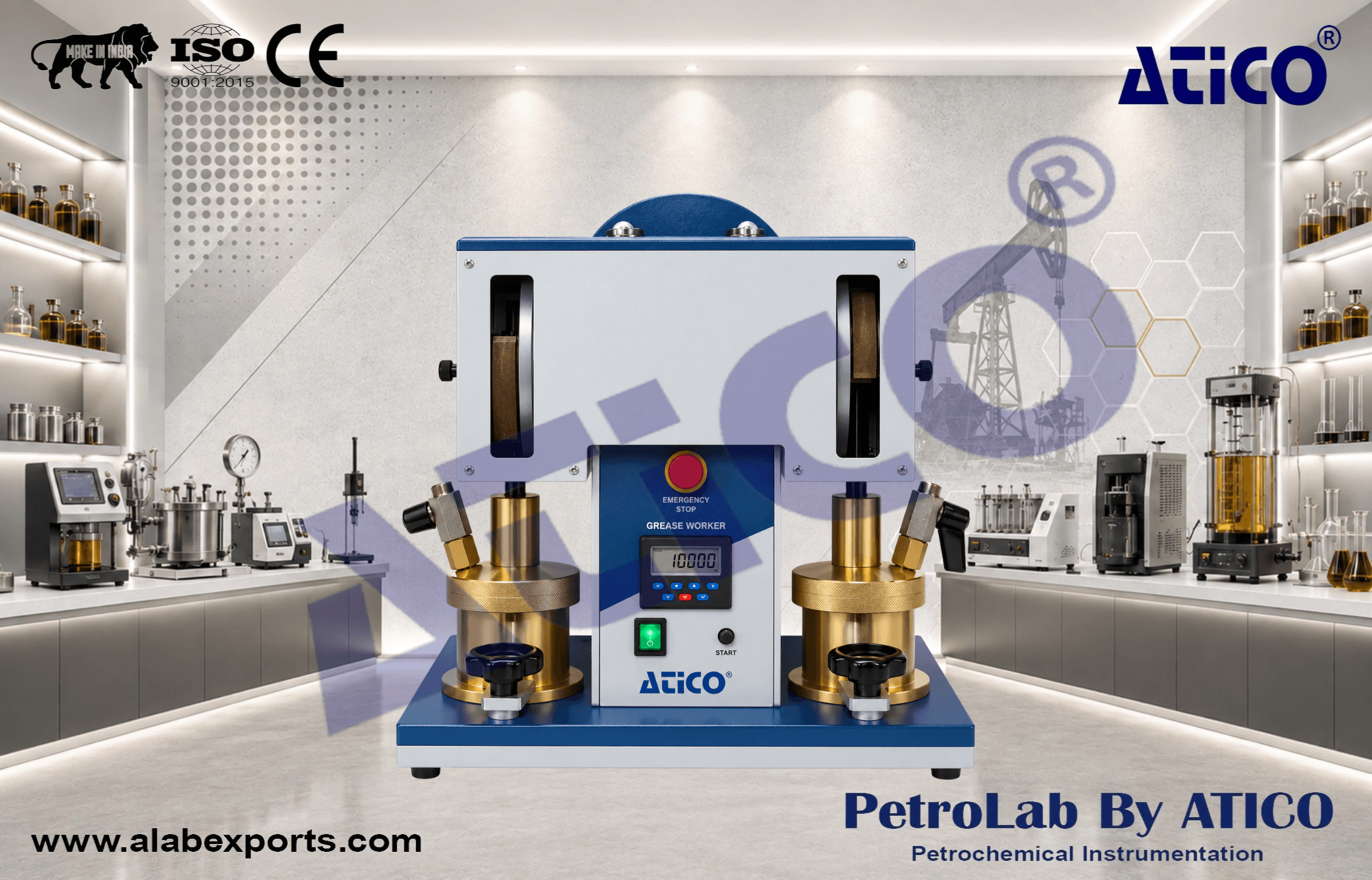

Automatic Grease Mixer ASTM D1403 , ASTM D217 and ASTM D7342 for developing and manufacturing laboratory test equipment

The automatic grease mixer is designed for preparing and homogenizing lubricating grease samples under controlled operating conditions. It features a compact dual-unit design, an electronic stroke counter, and programmable operation from 1 to 100,000 strokes. The system operates at 60 strokes per minute with a 67 mm stroke length and automatically shuts down when the test is complete. Manufactured by Atico Export for reliable performance in lubricant testing and petroleum research applications.

Operating Capacity :

• 2 positions
• 60 strokes per minute
• Stroke length: 67 mm
• Programmable stroke count: 1 to 100,000

Supplied With :

• 2 perforated plates with 51 holes each
• 2 bowls with lids
• 2 dial thermometers
• 1 safety cover

Options and Accessories :

• Perforated plate with 270 holes
• Grease cutter with blade
• Spatula, 30 - 200 mm

Safety Features :

• Automatic shutdown at the end of the test

Power Supply :

• 400 V, three-phase, 50 Hz, 16 A

Dimensions :

• Width: 400 mm
• Depth: 260 mm
• Height: 500 mm

Weight :

• 29 kg

• Compact dual-unit design
• Electronic stroke counter
• Automatic shutdown at the end of the test
• Dial thermometers
• Brass base with 51 holes of 6.35 mm diameter
