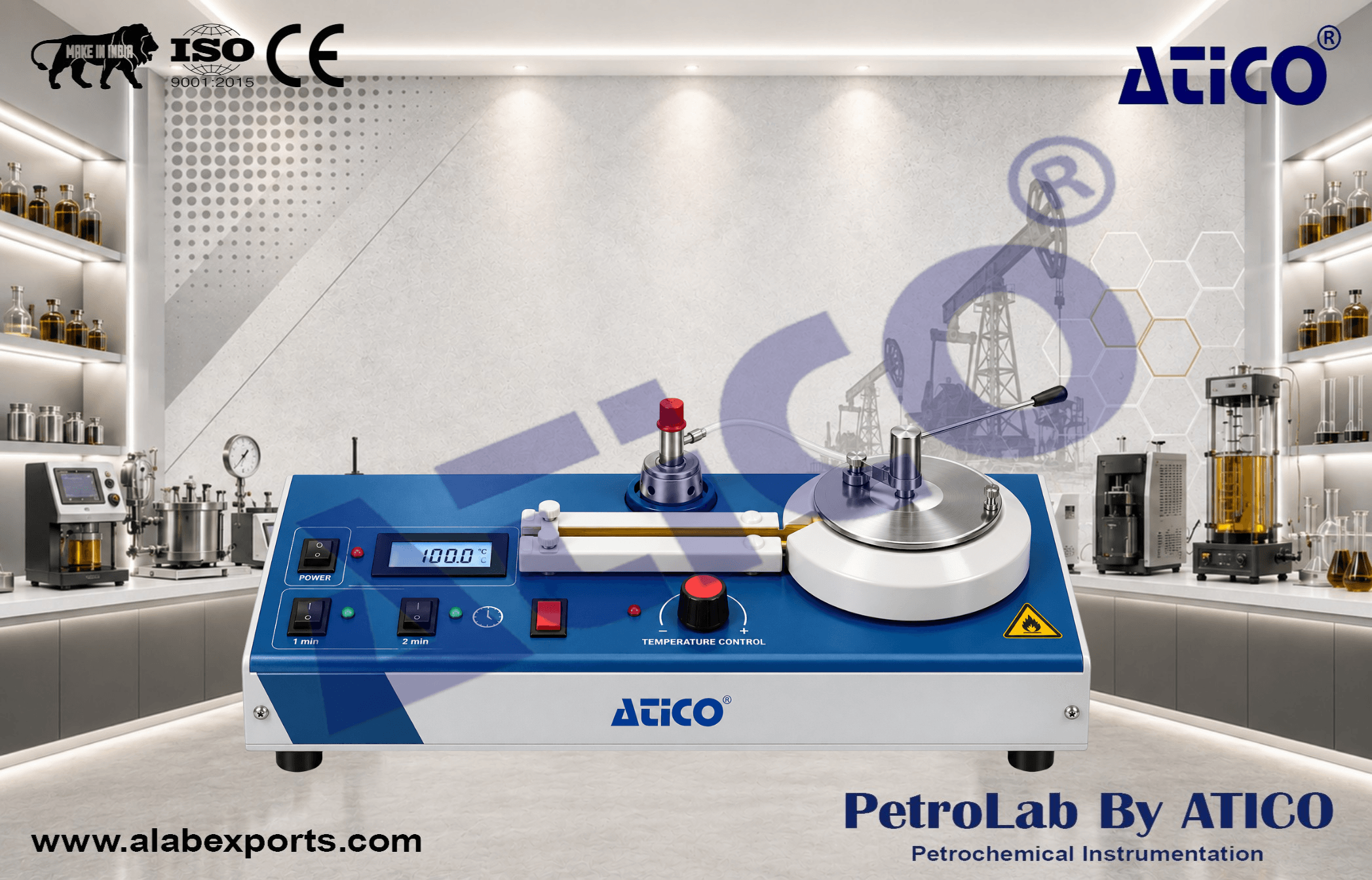

Rapid Flash Tester Open Cup for Oil and Petroleum Testing Equipment

The Rapid Open-Cup Sustained Burning Tester is designed to verify the sustained burning characteristics of small liquid samples. It is suitable for evaluating the flammability of mixtures containing flammable and non-flammable liquids or liquids with significantly different flash points.

The instrument provides rapid flash/no-flash test results in approximately one minute for suitable samples below 100°C using a 2 mL sample. It features semi-automatic operation and a digital temperature display. The operator selects the test temperature and introduces a 2 mL or 4 mL sample into the test cup. Once the instrument stabilizes at the selected temperature, the test flame is applied and the result is observed.

Manufactured by Atico Export for reliable flammability assessment and quality control in laboratory applications.

• Sustained burning tests of liquid samples
• Flammability assessment of liquid mixtures
• Testing paints, fragrances, hydrocarbons, and other liquids
• Quality assurance and environmental compliance testing

Test Temperature Range :

• Ambient temperature to 100°C (212°F)

Sample Volume :

• 2 mL or 4 mL

Test Duration :

• Approximately one minute for suitable flash/no-flash tests below 100°C using a 2 mL sample

Power Supply :

• 115 V, 60 Hz
• 220–240 V, 50/60 Hz

Dimensions (L × W × H) :

• 38.1 × 8.6 × 16.2 cm (15 × 23.4 × 6.3 inches)

Net Weight :

• 4.6 kg (10 lbs)

Standard Accessories :

• Thermometer, range 0°C to 110°C (32°F to 230°F)
• Syringe

• Rapid testing with a 2 mL sample
• Simple, semi-automatic operation
• Digital temperature display
• Open-cup testing configuration
• Suitable for sustained burning evaluations
• Accommodates 2 mL and 4 mL sample volumes
