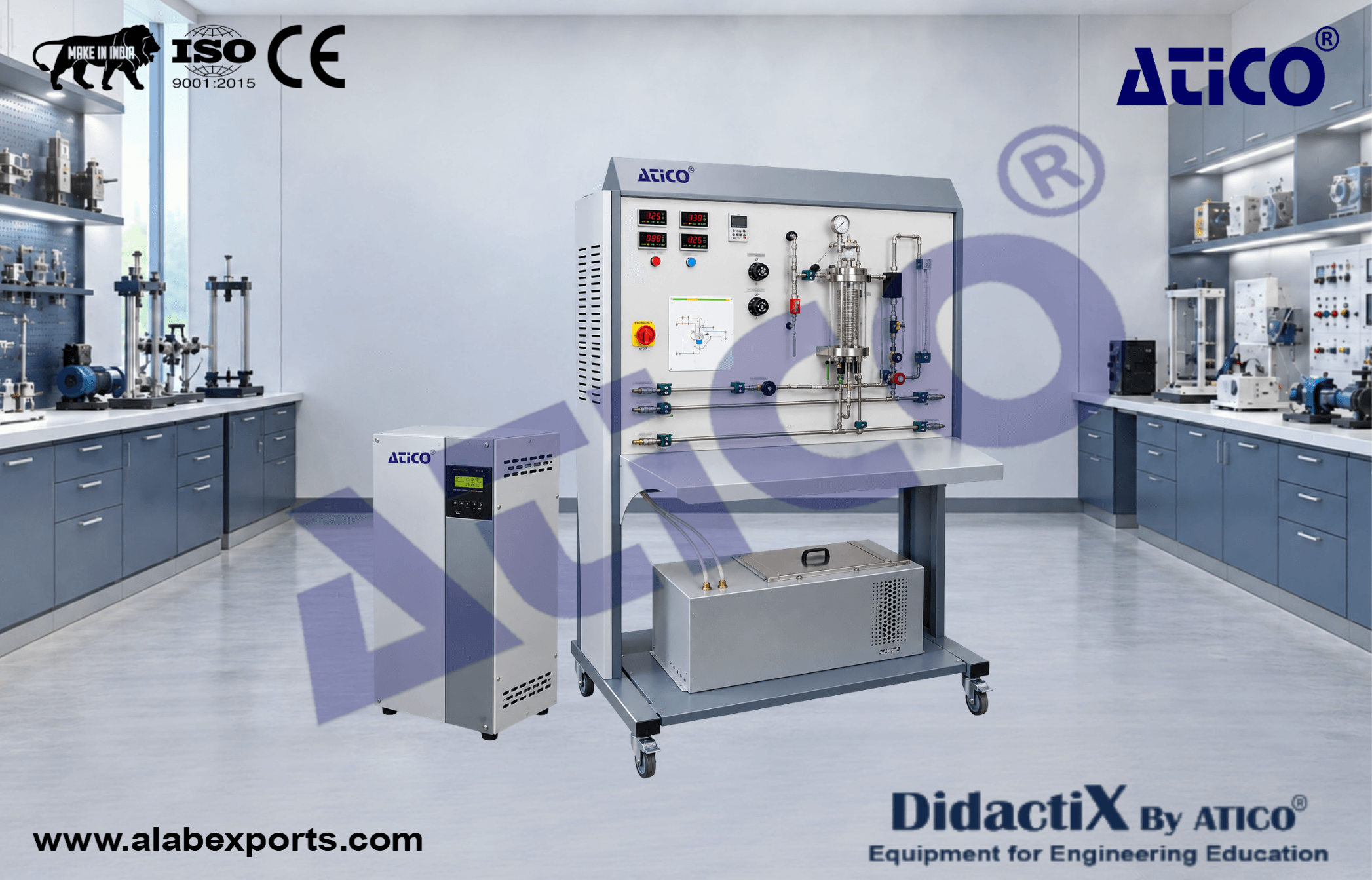

Axial Steam Turbine Teaching Equipment

The Axial Steam Turbine is a single-stage axial impulse turbine designed for practical study and demonstration of steam turbine operating principles. The turbine is mounted in corrosion-resistant, sealed ball bearings and is loaded using an eddy current brake.

The system includes a water-cooled coiled-tube condenser and can receive steam from either a gas-fired or electrically heated steam generator. Various safety devices are provided for safe operation.

Sensors and a digital indicator enable measurement of speed, temperature, pressure and flow rate. PC-based data acquisition via USB under Windows is provided for recording and analyzing experimental data.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Pressure Measurement :

• Measuring range: 0–16 bar (steam)
• Measuring range: 0–1.6 bar (condenser)
• Differential pressure: 0–50 mbar

Flow Rate :

• Cooling water: 0–720 L/h

Speed :

• Measuring range: 0–50000 min⁻¹

Torque :

• Measuring range: 0–70 Nmm

Temperature :

• Measuring range: 0–400 °C

Power and Electrical :

• Mains connection: 230 V, 50 Hz, 1 phase

Dimensions and Weight :

• L × W × H: approximately 1530 × 790 × 1770 mm (without chimney)
• Weight: approximately 180 kg

Required for Operation :

• Water connection: 350 L/h
• Drain
• PC with Windows recommended

• Single-stage axial impulse turbine
• Rotor inner diameter: 54 mm
• Maximum speed: 40000 min⁻¹
• Maximum inlet pressure: 9 bar abs.
• Maximum outlet pressure: 1 bar abs.
• Nominal power output: 50 W
• Load on the turbine by eddy current brake
• Condenser with water-cooled coiled tube
• Steam supply from gas-fired or electrical steam generator
• Various safety devices for safe operation
• Sensors and digital indicator for speed, temperature, pressure and flow rate
• PC-based data acquisition via USB under Windows
