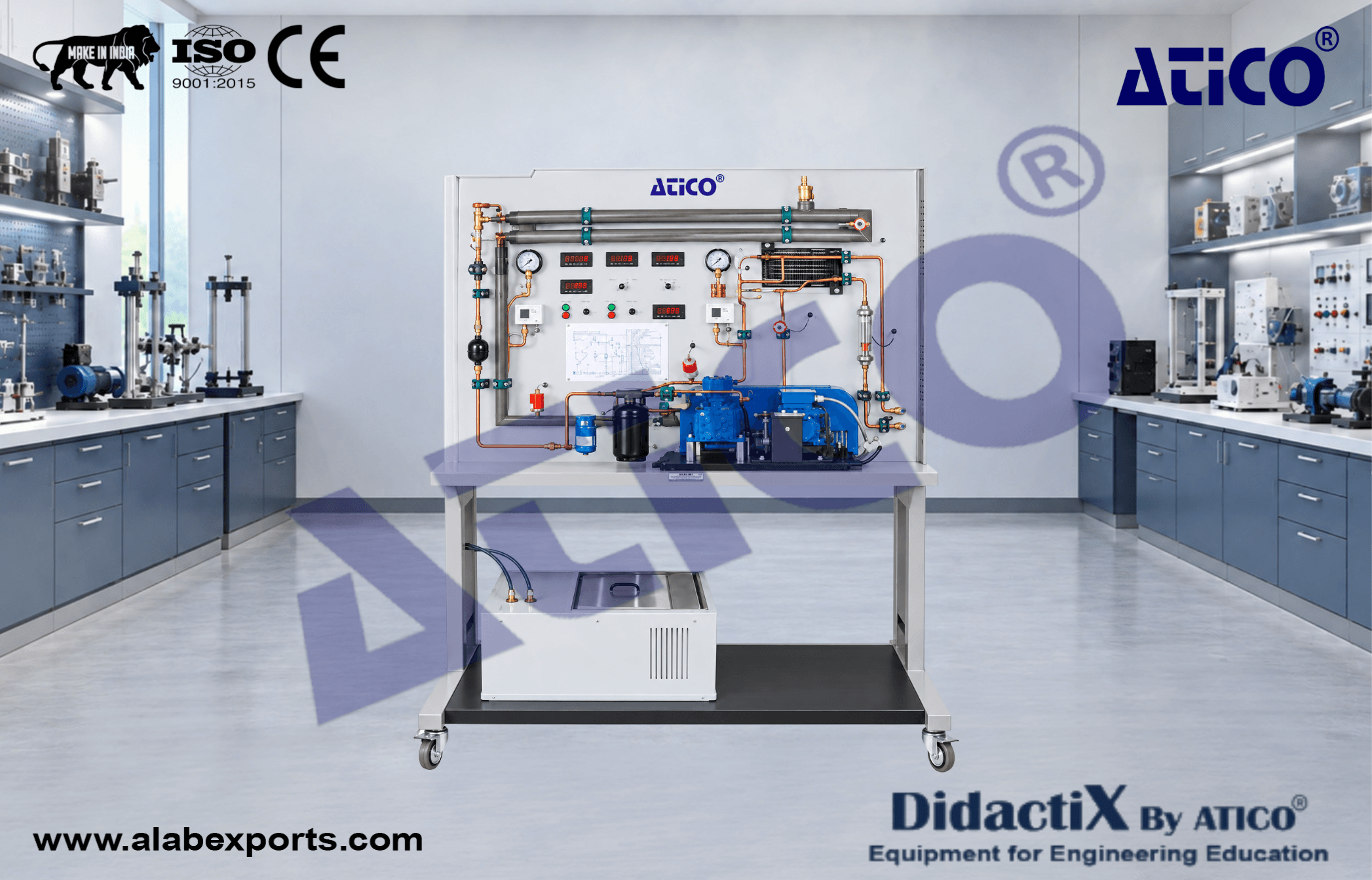

Behavior of a Piston Compressor Teaching Equipment

Behavior of a Piston Compressor is designed as a practical test stand for investigating the operating behavior and performance characteristics of a piston compressor. The system uses an open, two-cylinder compressor driven by an asynchronous motor, with a frequency converter for variable speed adjustment.

The inlet and outlet pressures can be adjusted using valves, allowing students to investigate the effect of pressure ratio and operating conditions on compressor performance. The system is equipped with instruments and sensors for measuring flow rate, pressure, temperature, speed and torque.

An integrated PLC provides data acquisition, while stored measured values can be accessed via Ethernet. The setup is suitable for practical studies of compressor characteristics, energy performance and operating behavior in refrigeration and thermal engineering laboratories.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

PLC :

• Integrated PLC for data acquisition and storage

Compressor :

• Type: Piston compressor
• Number of cylinders: 2
• Speed: 465…975 min⁻¹
• Stroke: 26 mm
• Bore: 35 mm
• Displaced volume: 50 cm³

Drive Motor :

• Type: Asynchronous motor
• Power: 550 W
• Speed: 0…975 min⁻¹
• Frequency converter for variable speed operation

Measuring Ranges :

• Torque: 0…10 Nm
• Speed: 0…10000 min⁻¹
• Power: 0…600 W
• Temperature: 0…100 °C
• Temperature: 0…200 °C
• Flow rate: 0…4 m³/h
• Pressure: -1…1.5 bar
• Pressure: -1…24 bar

Power Supply :

• 230 V, 50 Hz, 1 phase
• 230 V, 60 Hz, 1 phase
• 120 V, 60 Hz, 1 phase
• UL/CSA optional

Dimensions and Weight :

• Dimensions (L × W × H): 1512 × 790 × 1414 mm
• Weight: approximately 148 kg

Required for Operation :

• Ventilation: 3.2 m³/h

• Test stand for investigating the behavior of a piston compressor
• Open two-cylinder compressor
• Asynchronous motor drive
• Frequency converter for speed adjustment
• Adjustable inlet pressure
• Adjustable outlet pressure and pressure ratio
• Flow meter for flow rate measurement
• Sensors for pressure and temperature
• Measurement of speed and torque
• Torque measurement via force sensor
• Data acquisition via PLC
• Access to stored measured values via Ethernet
