Bernoulli's Theorem and Flow Measurement

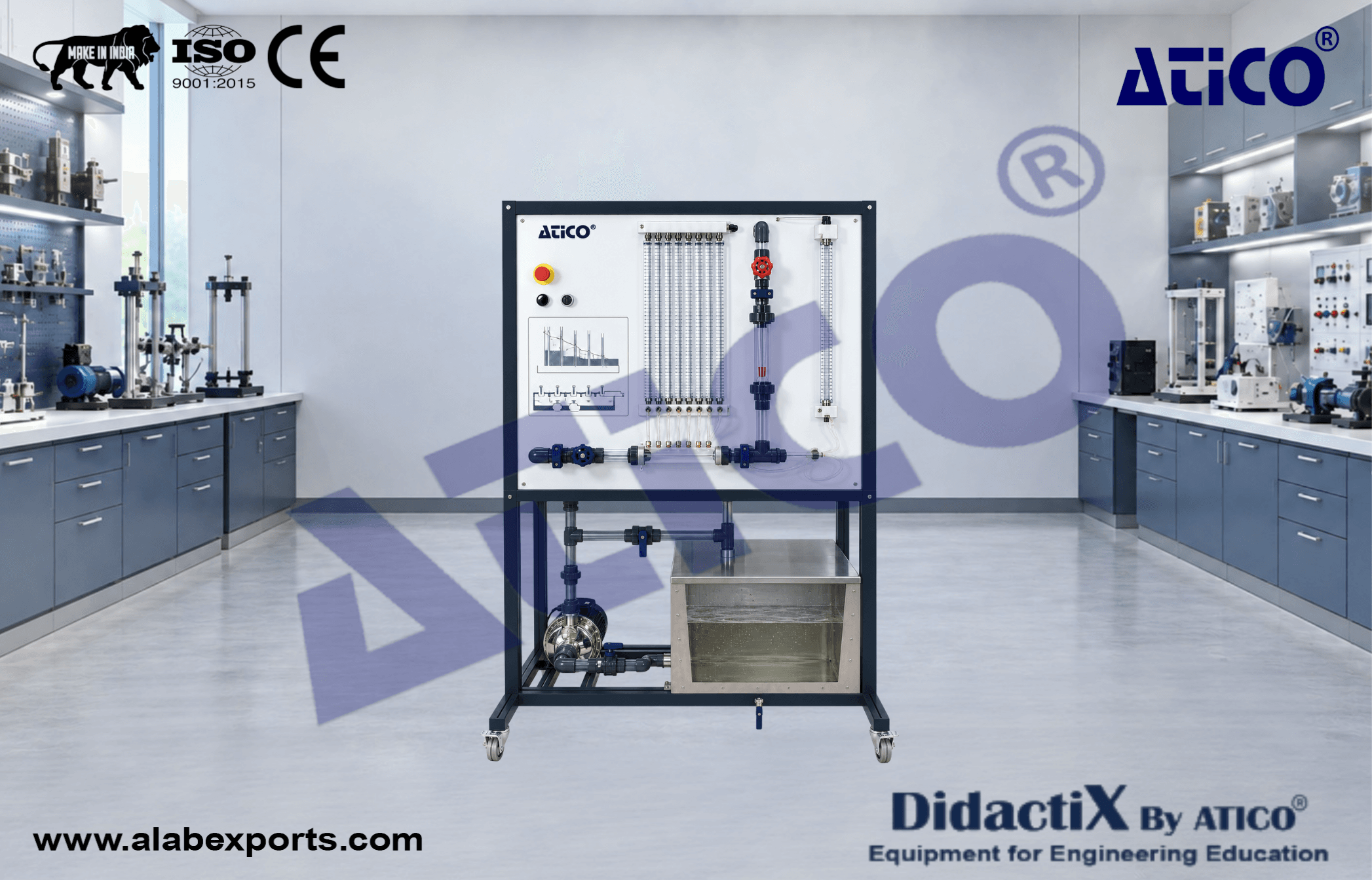

The Bernoulli’s Theorem and Flow Measurement Teaching Equipment is designed for practical demonstration of Bernoulli’s theorem and flow measurement principles. It enables students to perform flow measurement calculations using various flow measurement elements and observe the relationship between pressure, velocity and fluid flow.

The training set is a self-contained system with its own storage tank, pump and supporting table, allowing it to operate independently. The transparent Venturi section provides clear visibility of the measuring points, while different flow measurement devices allow comparative study of flow measurement methods.

Specifications :

• Demonstration of Bernoulli’s theorem
• Flow measurement calculations using various flow measurement elements
• Self-contained system with storage tank, pump and supporting table
• Transparent Venturi with clearly visible measuring points
• Rotameter type flow meter
• Turbine flow meter with digital indicator
• Venturi with 6 tubes
• Orifice plate with 2 tubes
• U-manometer with 2 tubes
• Total 12-tube column manometer, including 2 tubes connected to the Pitot tube
• Column manometers with minimum height of 500 mm
• Pump for generating positive pressure when required
• Throttle valve at the outlet for adjusting the flow rate
• All pipes are transparent with 1 inch diameter

Dimensions :

• Height × Length × Width: 1600 × 1200 × 800 mm

Manufacturing :

• Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.
