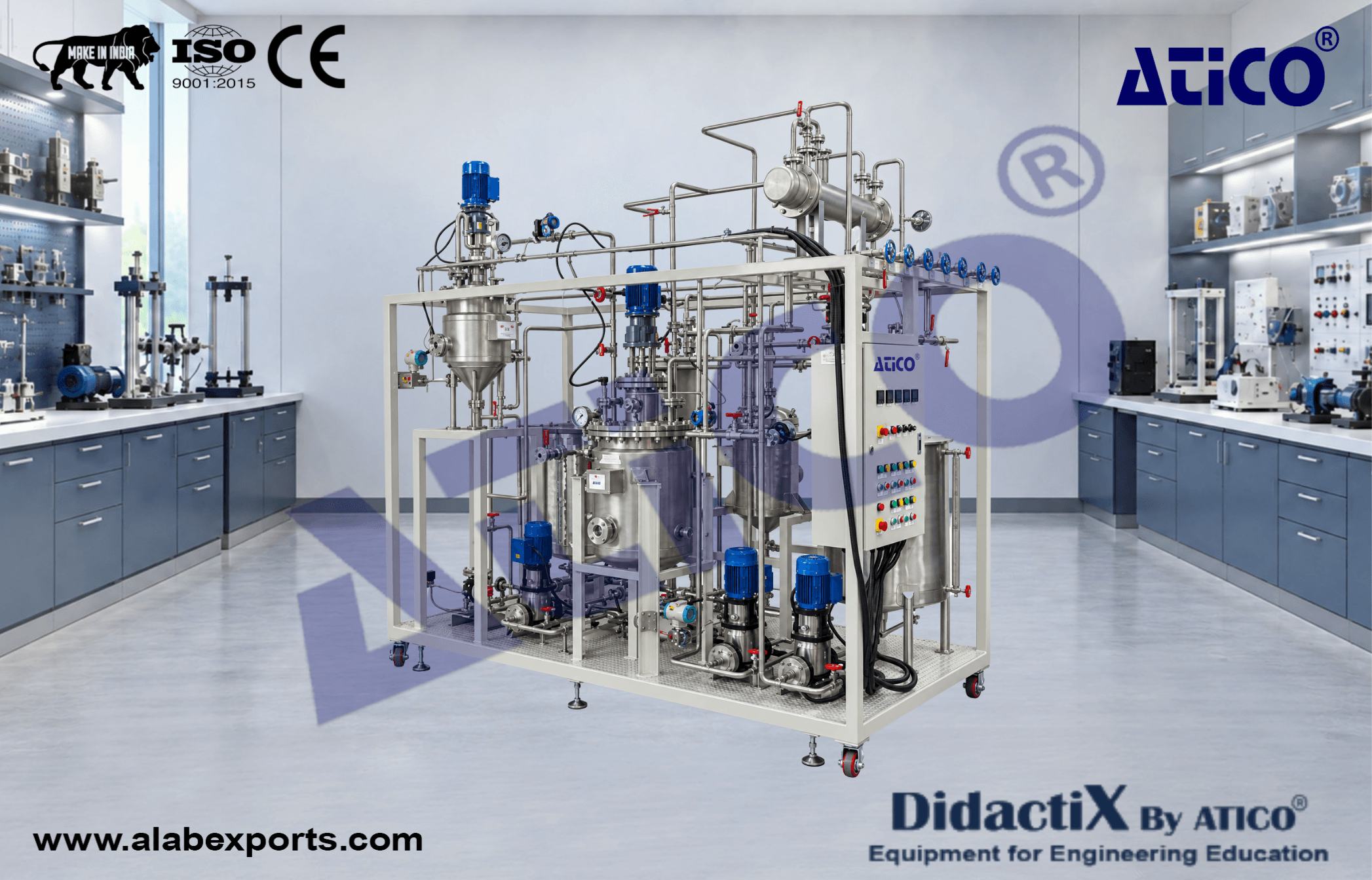

Biotechnical Production of Ethanol is designed for practical teaching and laboratory investigation of the batch conversion of starch-based raw materials into ethanol. The system demonstrates the main stages of ethanol production, including mash preparation, fermentation and distillation.

The equipment includes an open mash tank with water-jacket cooling, steam injection and stirrer, along with a closed fermentation tank equipped with stirring and water-jacket cooling/heating. A distillation unit with three bubble-cap trays, dephlegmator, condenser and stirrer is provided for separation and recovery of the ethanol product.

Two air-operated diaphragm pumps are used for mash transfer, while metering pumps provide controlled addition of acid and caustic for pH adjustment in the mash tank. PID controllers allow adjustment of injected heating steam, cooling-water flow rates and head temperature.

The complete system is controlled by a PLC and operated through a touch screen. Data acquisition via USB supports recording and analysis of experimental measurements.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Mash Tank :

• Capacity: 40 L
• Water-jacket cooling
• Steam injection
• Stirrer
• pH control

Fermentation Tank :

• Capacity: 30 L
• Stirrer
• Water-jacket cooling/heating

Product Tank :

• Capacity: 10 L

Distillation Unit :

• Column diameter × height: 220 × 1200 mm
• Number of bubble-cap trays: 3
• Sump capacity: 45 L
• Sump heater: 0…7500 W
• Dephlegmator
• Condenser
• Stirrer

Mash Transfer Pumps :

• Quantity: 2 air-operated diaphragm pumps
• Drive pressure: 2 bar
• Maximum flow rate: 15 L/min
• Maximum head: 20 m
• Maximum solid lump size: 4 mm

Metering Pumps :

• Quantity: 2
• Application: Acid and caustic dosing
• Maximum flow rate: 2.1 L/h each

Measuring Ranges :

• Temperature: 10 × 0…150 °C
• Flow rate to mash tank: 0…25 L/min
• pH value: 2…10
• Steam pressure: 0…10 bar

Physical and Environmental :

• Overall dimensions: approximately 3500 × 1200 × 2000 mm
• Weight: approximately 500 kg

Power and Electrical :

• Mains connection: 400 V, 50 Hz, 3 phases
• Compressed air: 1.5…6 bar
• Cold and hot water connection: minimum 400 L/h, up to 40 °C
• Drain connection
• Steam: 10 kg/h, minimum 3 bar
• PC with Windows recommended

• Batch conversion of starch-based raw materials into ethanol
• Open mash tank with water-jacket cooling, steam injection and stirrer
• Closed fermentation tank with stirrer and water-jacket cooling/heating
• Distillation unit with 3 bubble-cap trays, dephlegmator, condenser and stirrer
• Two pumps for delivering the mash
• pH control in the mash tank using acid and caustic delivered by metering pumps
• Adjustment of injected heating steam, cooling-water flow rates and head temperature using PID controllers
• Plant control using PLC
• Operation via touch screen
• Data acquisition via USB
• Suitable for practical study of mash preparation, fermentation and ethanol distillation
