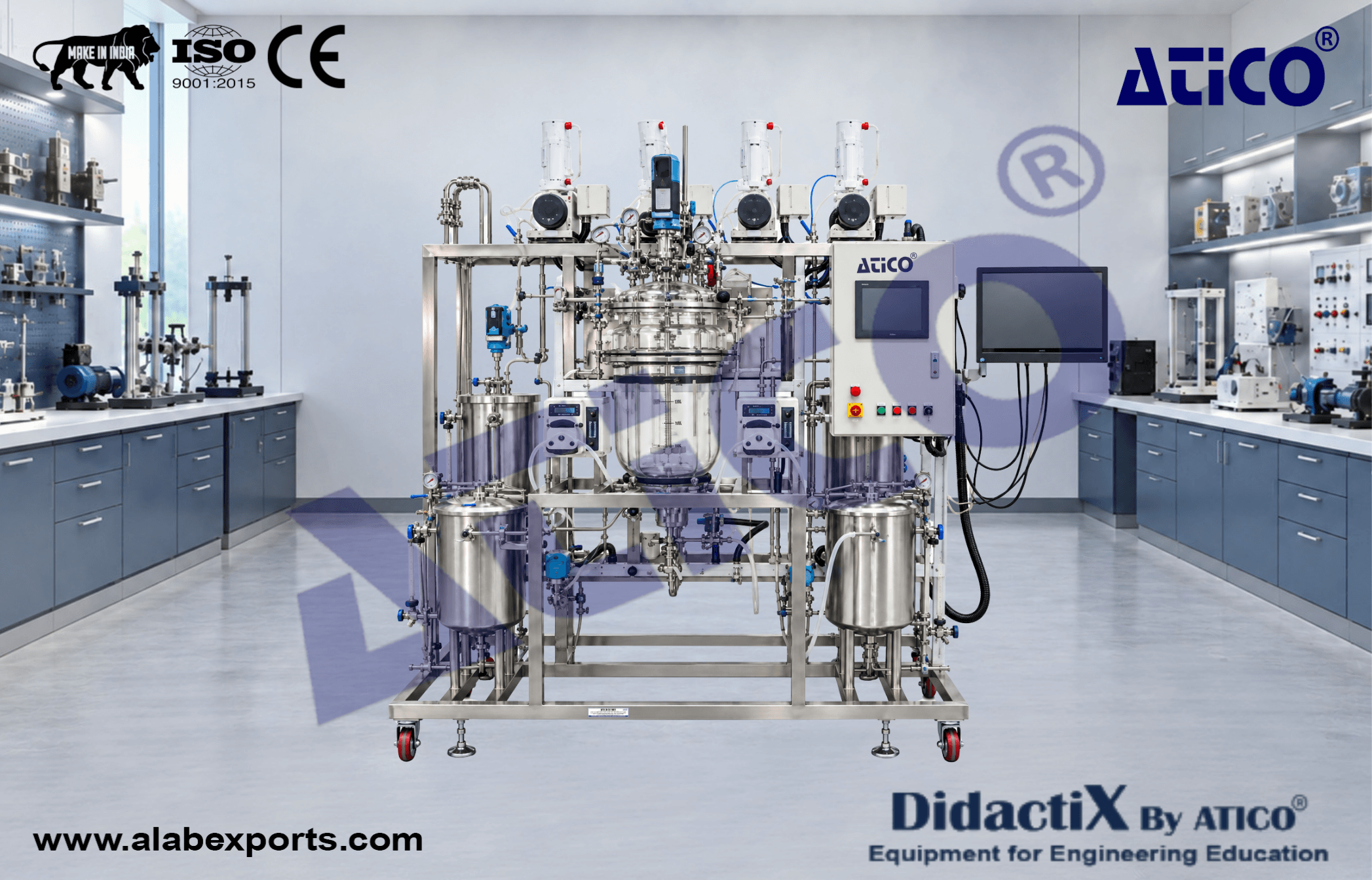

Biogas Plant Teaching Equipment

Biogas Plant is designed for practical teaching and laboratory investigation of anaerobic digestion and biogas production using a two-stage process. The system can be operated continuously or discontinuously and provides a complete platform for studying substrate conversion, reactor operation, biogas generation and post-fermentation processes.

The plant consists of two stirred stainless-steel tank reactors with level sensors, a separate supply unit with substrate tank and feed pump, and a post-fermentation unit. Temperature and pH in the reactors can be controlled using heating and dosing systems. Acid and caustic are supplied through metering pumps for controlled pH adjustment.

The biogas produced is dried using silica gel and analyzed for methane content, carbon dioxide content, flow rate, humidity and temperature. An integrated PLC with touch screen provides plant control, while the integrated router allows operation through an end device and screen mirroring on up to 5 end devices. Measured values can be stored internally and accessed through WLAN or LAN connection.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Tanks :

• Reactor, Stage 1: 26.3 L
• Reactor, Stage 2: 73.5 L
• Substrate tank: approximately 30 L
• Digestate tank: 26.3 L
• Tanks made of stainless steel

Pumps :

• 3 peristaltic pumps
• Maximum flow rate: 25 L/h each
• 2 metering pumps
• Maximum flow rate: 2.1 L/h each
• Heating water pump
• Maximum flow rate: 480 L/h

Stirring Machines :

• Substrate tank: maximum 200 min⁻¹
• Reactors: maximum 120 min⁻¹ each

Biogas Analysis :

• Biogas drying using silica gel
• Methane content measurement
• Carbon dioxide content measurement
• Biogas flow rate measurement
• Humidity measurement
• Temperature measurement

Measuring Ranges :

• Methane content: 0…100%
• Carbon dioxide content: 0…100%
• Biogas flow rate: 0…30 NL/h
• pH value: 2 × 1…14
• Humidity: 0…100%
• Temperature: 3 × 0…100 °C

Physical and Environmental :

• Supply unit dimensions (L × W × H): approximately 1100 × 790 × 1400 mm
• Trainer dimensions (L × W × H): approximately 2060 × 790 × 1910 mm
• Post-fermentation unit dimensions (L × W × H): approximately 1100 × 790 × 1400 mm
• Weight: approximately 770 kg

Power and Electrical :

• Mains connection: 400 V, 50 Hz, 3 phases
• Biomass from a biogas plant
• Substrate, recommended: potatoes or maize
• Caustic soda
• Hydrochloric acid
• Inert gas, e.g. carbon dioxide
• Gas supply: 5 kg/h, minimum 2 bar
• Water connection and drain: 300 L/h, minimum 3 bar
• Exhaust air and ventilation: 245 m³/h

• Two-stage biogas plant
• Continuous or discontinuous operation
• Stainless-steel construction
• Two stirred tank reactors with level sensors
• Separate supply unit with substrate tank and feed pump
• Control of temperature and pH value in the reactors
• Two metering pumps for acid and caustic
• Heating water circuit with tank, heater, temperature controller and pump
• Biogas drying using silica gel
• Biogas analysis for flow rate, methane content, carbon dioxide content, humidity and temperature
• PLC-based plant control via touch screen
• Integrated router for operation and control via an end device
• Screen mirroring of the user interface on up to 5 end devices
• Data acquisition via PLC on internal memory
• Access to stored measured values via WLAN
• LAN connection to the customer's own network
