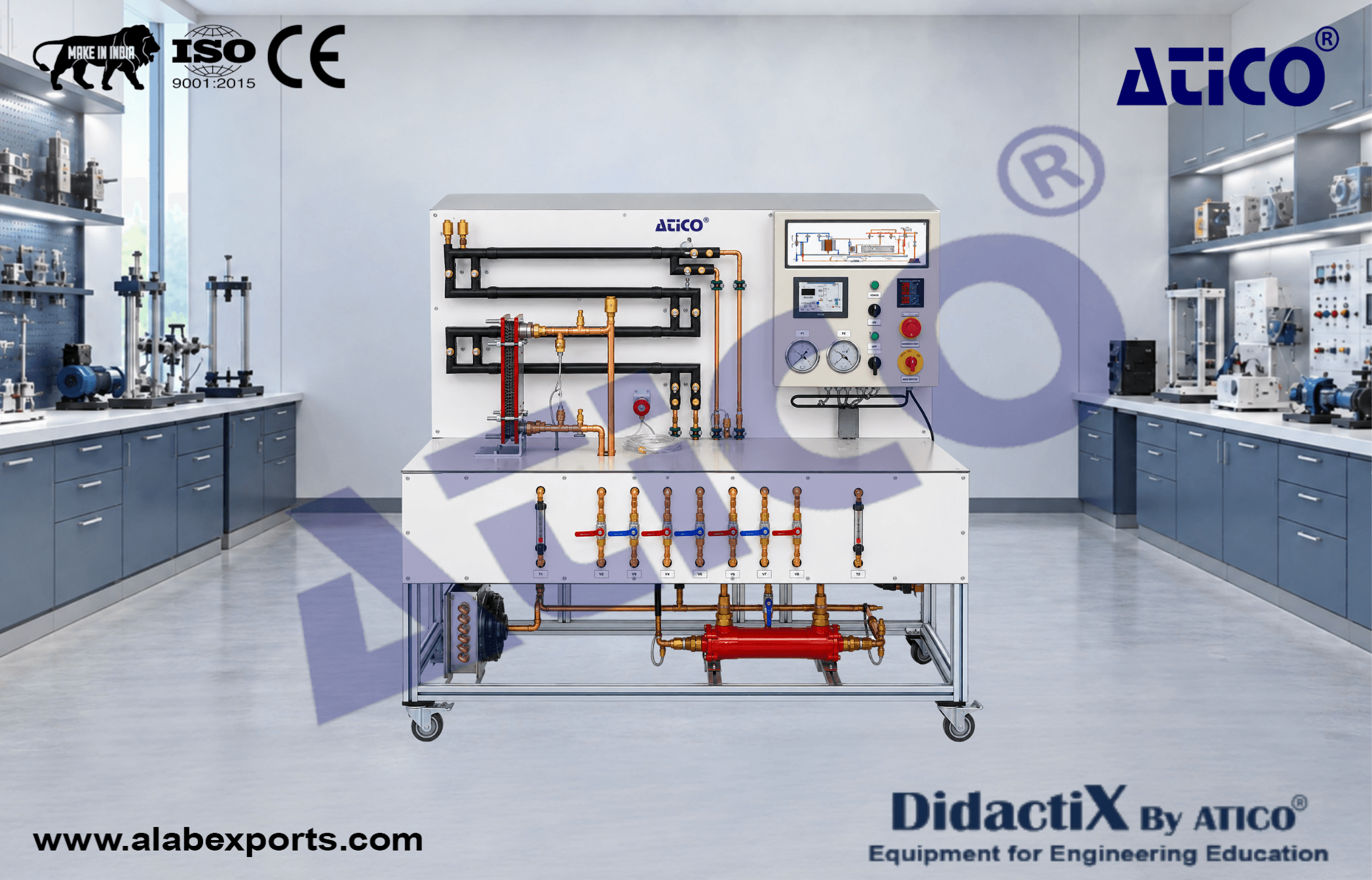

Comparison of Various Heat Exchangers Teaching Equipment

Comparison of Various Heat Exchangers is designed for practical investigation and comparison of five different types of heat exchangers. The system allows parallel-flow or counter-flow operation to be selected using valves, while flow rates can be adjusted for different experimental conditions.

The setup includes electromagnetic flow meters for hot and cold water, a portable differential pressure sensor for water and a fixed differential pressure sensor for air to determine volumetric flow rate. Digital displays provide readings for temperature, differential pressure and flow rate.

Five different heat exchanger configurations are available for comparative studies, including plate, tubular, shell-and-tube, finned-tube and stirred-tank heat exchangers with double jacket and coiled tube. A hot water generator and water chiller are available for supplying the required working fluids.

PC-based software supports data acquisition via USB for recording and analyzing experimental results.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Plate Heat Exchanger (Water–Water) :

• Number of plates: 10
• Heat transfer area: approximately 0.26 m²
• Output: 15 kW

Tubular Heat Exchanger (Water–Water) :

• Heat transfer area: 0.1 m²

Shell & Tube Heat Exchanger (Water–Water) :

• Output: 13 kW

Finned Tube Heat Exchanger (Water–Air) :

• Heat transfer area: approximately 2.8 m²
• Fan maximum flow rate: 780 m³/h
• Fan maximum pressure difference: 430 Pa

Stirred Tank with Double Jacket and Coiled Tube (Water–Water) :

• Double jacket heat transfer area: 0.16 m²
• Coiled tube heat transfer area: 0.17 m²

Measuring Ranges :

Differential Pressure :

• 1 × 0–10 mbar (air)
• 1 × 0–1000 mbar (water)

Flow Rate :

• 2 × 0–3 m³/h

Temperature :

• 10 × 0–100 °C

Power and Electrical :

• Mains connection: 230 V, 50 Hz, 1 phase
• Mains connection: 230 V, 60 Hz, 1 phase
• Mains connection: 120 V, 60 Hz, 1 phase
• UL/CSA optional

Dimensions and Weight :

• L × W × H: approximately 2010 × 800 × 1760 mm
• Weight: approximately 250 kg

Required for Operation :

• Cold and hot water connection: 400 L/h
• Drain
• PC with Windows recommended

• Investigation and comparison of five different heat exchanger types
• Parallel-flow or counter-flow operation selectable via valves
• Adjustable flow rates via valves
• Electromagnetic flow meters for hot and cold water
• Portable differential pressure sensor for water
• Fixed differential pressure sensor for air
• Volumetric flow rate determination
• Digital displays for temperature, differential pressure and flow rate
• Hot water generator and water chiller available
• PC-based data acquisition via USB
• Windows-compatible software
