Cooling Tower Teaching Equipment

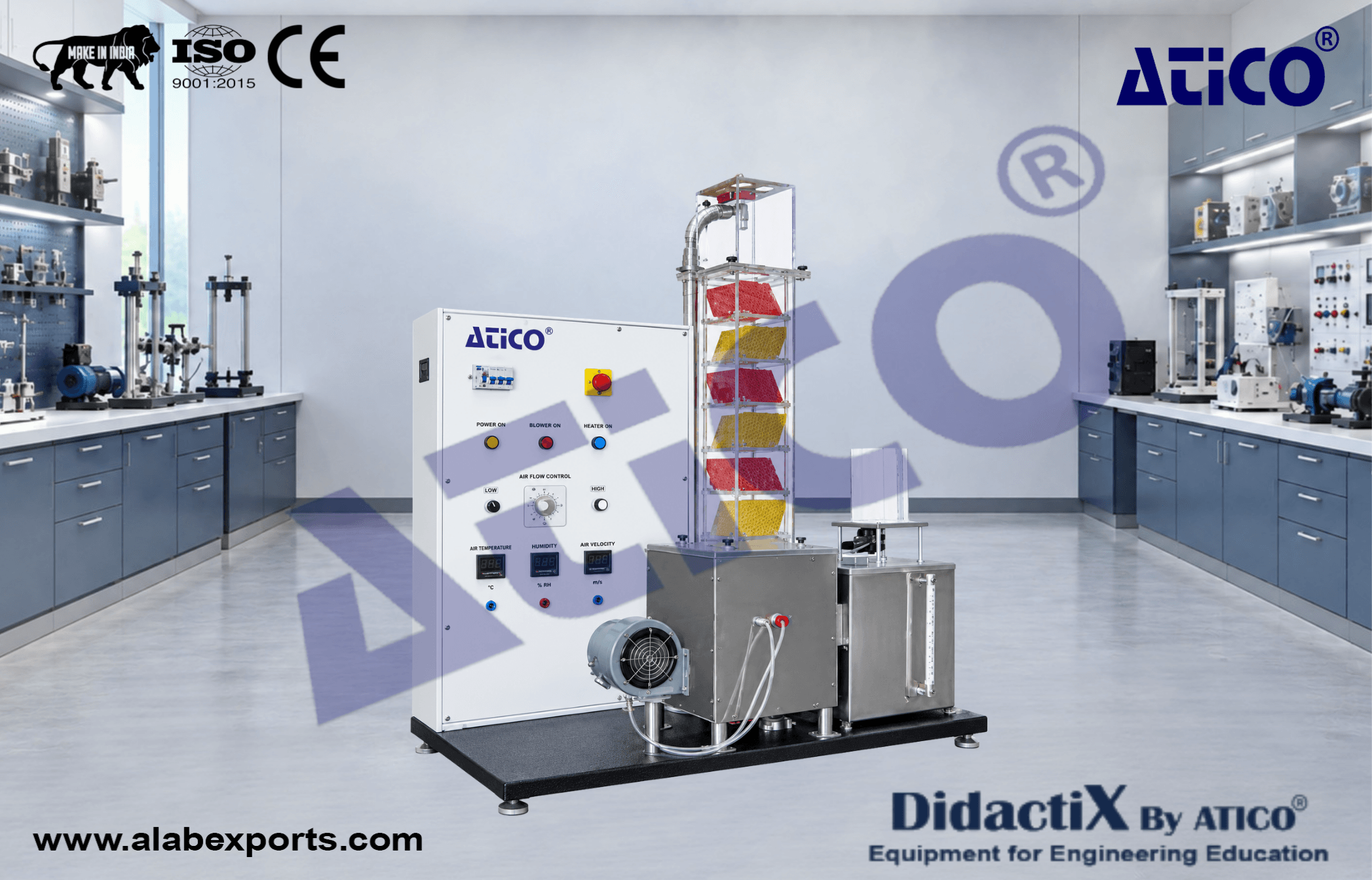

Cooling Tower is designed for practical teaching and demonstration of the operating principles and performance of a wet cooling tower with forced ventilation. The system reproduces the main processes found in an industrial cooling system served by a forced-draught cooling tower.

The unit incorporates a process load, circulating pump, cooling column, water distribution system, volume control system and fan. Water is circulated through the cooling column and distributed using a nozzle as an atomizer, while a radial fan provides forced ventilation. Interchangeable cooling columns with different wet deck surfaces can be used for comparative studies.

A three-stage heater with thermostat is provided for controlled water heating. A throttle valve allows adjustment of the air flow, while a demister unit at the cooling column outlet minimizes water loss. An additional water tank compensates for evaporation and other water losses.

The system allows measurement of air and circulating water flow rates, temperatures and humidity. Students can investigate evaporation rates under varying load and flow conditions, observe water flow patterns and distribution, determine end-state conditions and develop energy balances using the steady-flow equation. Performance can be investigated over a range of process cooling loads and inlet temperatures.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

• Reproduces the processes found in an industrial system serviced by a forced-draught cooling tower
• Incorporates a process load, circulating pump, packed column, water distribution, volume control system and fan
• Measurement of air and circulating water mass flow rates
• Measurement of end-state temperatures using wet and dry bulb thermocouples
• Investigation of evaporation rates under varying load and flow conditions
• Observation of water flow pattern and distribution
• Measurement of end states and flow rates of water, air and make-up water
• Plotting of end states on a psychrometric chart
• Application of the steady-flow equation for energy balance calculations
• Investigation of performance over a range of process cooling loads
• Investigation of performance over a range of inlet temperatures

Cooling Column :

• Specific surface of wet deck surface: 110 m²/m³
• Cross-section: 150 × 150 mm
• Volumetric air flow measurement via orifice: Ø 80 mm
• Heater, adjustable in three stages: 500 W – 1000 W – 1000 W
• Thermostat: switches off at 50 °C
• Fan power consumption: 250 W
• Maximum pressure difference: 4.3 mbar
• Maximum volumetric flow rate: 13 m³/min

Pump :

• Maximum head: 70 m
• Maximum flow rate: 6.0 L/min
• Additional water tank capacity: 4.2 L

Measuring Ranges :

• Differential pressure: 0…10 mbar (air)
• Flow rate: 12…360 L/h (water)
• Temperature: 2 × 0…50 °C
• Temperature: 3 × 0…100 °C
• Relative humidity: 10…100%

Power Supply :

• 230 V, 50 Hz, 1 phase

• Principle of a wet cooling tower with cooling column and forced ventilation
• Interchangeable cooling columns with different wet deck surfaces available as accessories
• Water circuit with pump, filter, valve and nozzle as atomizer
• Three-stage heater with thermostat for water heating
• Radial fan for forced ventilation
• Throttle valve for adjusting the air flow
• Demister unit at the outlet of the cooling column to minimize water loss
• Additional water tank to compensate for water loss
• Display of temperature, differential pressure, flow rate and humidity
• Closed-loop PID control of water temperature or constant-power operation of the heater
• Manually controlled variable-speed air blower
• Data acquisition via USB
• Suitable for plotting end states on a psychrometric chart and performing energy balance calculations
