Efficiency in Heating Technology Teaching Equipment

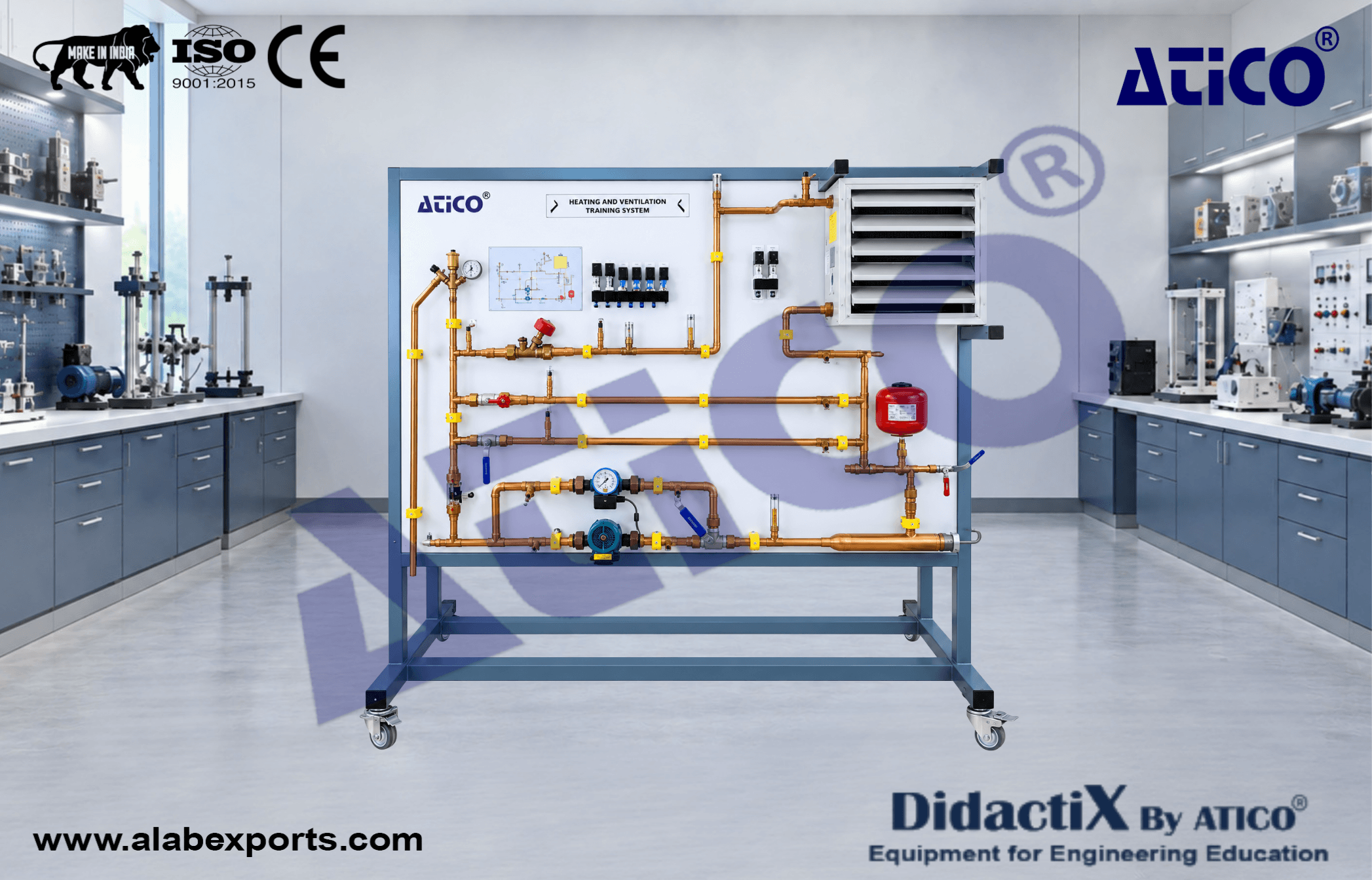

This training equipment is designed for the practical study of energy-efficient heating technology and the fundamentals of heating system operation. It features a complete closed heating circuit with circulating pumps, an electrical heater, a convector for heat dissipation, various pipe sections, fittings and safety devices.

The system allows students to investigate pressure losses across important pipe fittings and compare the operating characteristics of conventional and differential pressure-controlled circulating pumps. Seven differential pressure sensors are provided for pressure loss measurements.

Control response and energy flow can be analyzed using temperature sensors, a flow rate sensor and an effective power sensor. Measured values can be transferred directly to a PC via Ethernet for data acquisition and analysis. The circulating pumps, heater and convector fan can also be controlled through the PC.

The integrated temperature control system supports two-point and PID control, allowing practical investigation of temperature regulation, hysteresis and PID parameters.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Fundamentals of energy-efficient heating technology
• Closed water circuit with 2 circulating pumps, expansion vessel, heater and convector
• Two-point and PID temperature control
• Adjustable reference variable, hysteresis and PID parameters
• Boiler safety group according to DIN 4751
• 7 differential pressure sensors
• 4 temperature sensors
• 1 effective power sensor
• 1 flow rate sensor
• PC-based control functions and data acquisition via Ethernet
• Compatible with Windows operating systems

Technical Details :

Conventional Circulating Pump :

• Power consumption: 140 W
• Maximum flow rate: 5 m³/h
• Maximum head: 7 m

Differential Pressure-Controlled Circulating Pump :

• Power consumption: 4 to 50 W
• Maximum flow rate: 3.5 m³/h
• Maximum head: 6 m

Electric Heater :

• Power: 2000 W

Expansion Vessel :

• Capacity: 2 L

Software Controller :

• Adjustable reference variable: 0 to 80°C

Measuring Ranges :

Differential Pressure :

• 5 × 0 to 600 mbar
• 2 × 0 to 100 mbar

Temperature :

• 0 to 100°C

Flow Rate :

• 0 to 50 L/min

Effective Power :

• 0 to 200 W

Power Supply :

• 230 V, 50 Hz, 1 phase

Required for Operation :

• PC with Windows recommended
