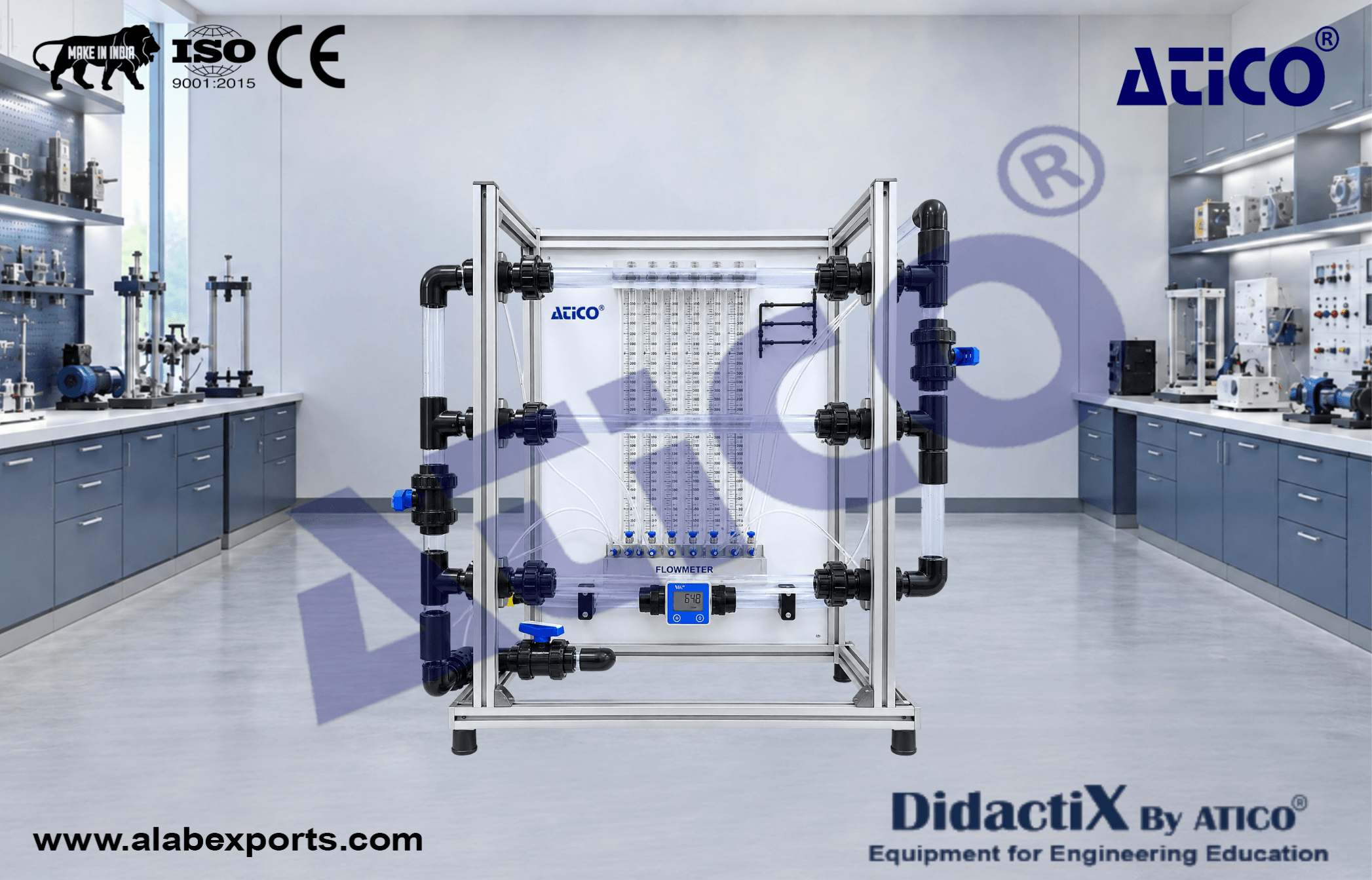

Energy Losses in Bends and Fittings Teaching Equipment

This experimental unit is designed for the investigation of pressure losses during flow through various pipe fittings and a ball valve. The system allows practical study of sudden contraction, sudden enlargement, pipe bends, segment bends, pipe angles and ball valve flow characteristics.

Annular chambers enable precise pressure measurement at different points in the flow path. Six tube manometers provide visual pressure readings, while a Bourdon tube pressure gauge is used for additional pressure measurement. The flow rate is determined using a suitable base module, and the water supply can be provided through the base module or directly from the laboratory supply.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Investigation of pressure loss in flow through pipe fittings and ball valve
• Sudden contraction and sudden enlargement as measurement objects
• Pipe bend, segment bend and pipe angle as measurement objects
• Ball valve as a measurement object
• Annular chambers for precise pressure measurement
• 6 tube manometers for displaying pressures
• Bourdon tube pressure gauge for pressure measurement
• Flow rate determined by a suitable base module
• Water supply via base module or laboratory supply

Technical Details :

Pipe :

• Material: PVC
• Inner diameter: 17 mm

Pipe Elements :

• Material: PVC
• Inner diameter: d

Sudden Contraction :

• From d = 17 mm to d = 9.2 mm

Sudden Enlargement :

• From d = 9.2 mm to d = 17 mm

Segment Bend :

• Diameter: 17 mm
• Angle: 90°

Pipe Angle :

• Diameter: 17 mm
• Angle: 90°

Narrow Pipe Bend :

• Diameter: 17 mm
• Radius: 40 mm
• Angle: 90°

Wide Pipe Bend :

• Diameter: 17 mm
• Radius: 100 mm
• Angle: 90°

Measuring Ranges - Pressure :

• 1 × 0...1.6 bar
• 6 × 0...0.03 bar
