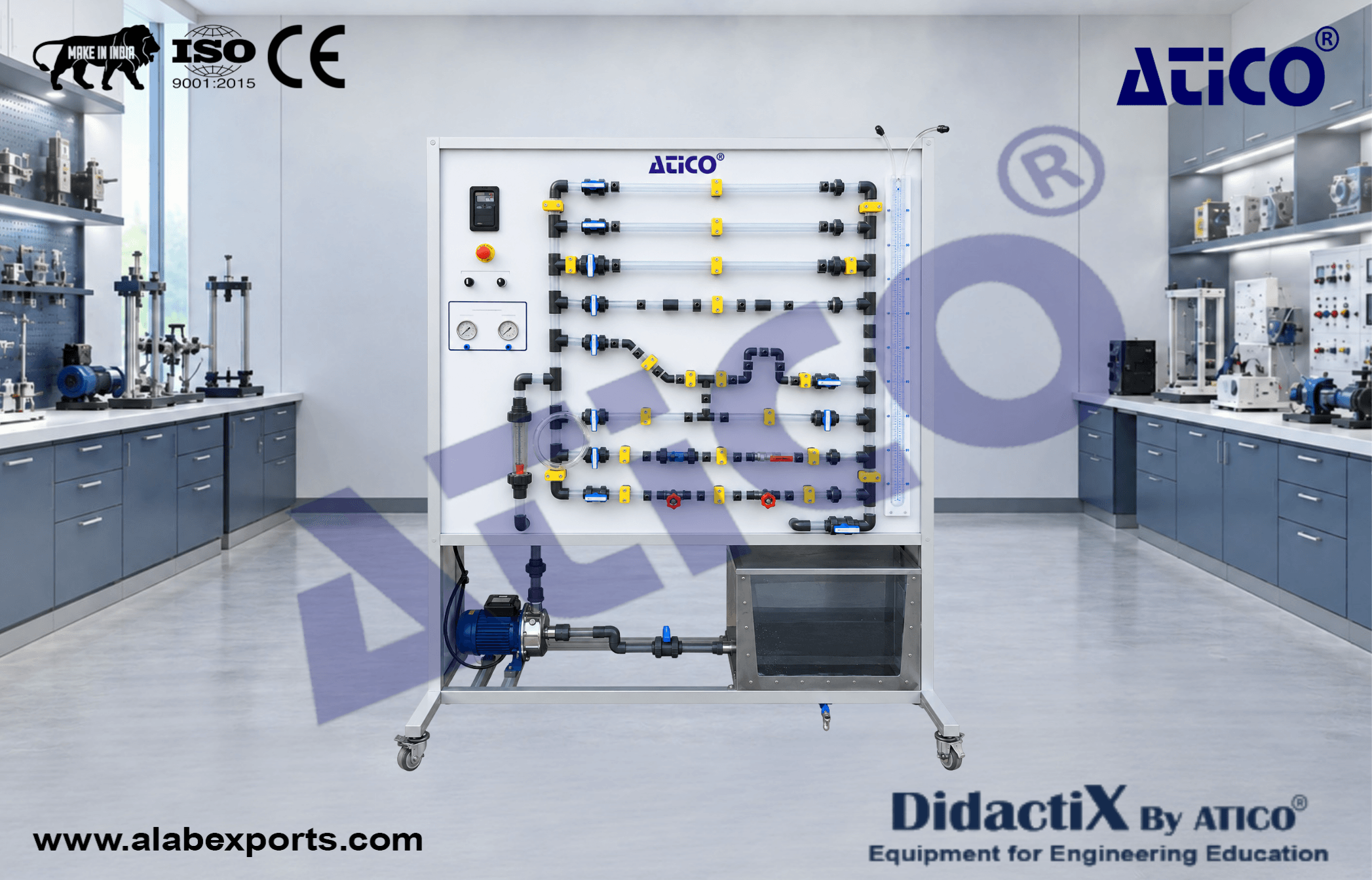

Flow Through Pipes and Fittings Teaching Equipment

Flow Through Pipes and Fittings is designed for practical teaching and investigation of pressure losses and head losses occurring in pipes, piping elements and various fittings. The system allows students to study the relationship between flow velocity and pressure loss and determine resistance coefficients for different piping components.

The experimental unit incorporates smooth pipes of different diameters and at least one rough pipe with known roughness. Variable flow rates allow investigations under different operating conditions. Pressure measurement is performed without interaction through annular chambers, while transparent measuring objects support practical determination of flow rate.

The system includes a hydraulic bench with a centrifugal pump and bypass pipe with valve, together with flow measuring instruments and differential pressure measurement devices. It is suitable for fluid mechanics and hydraulic engineering laboratories.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Fittings for Investigation :

• 90-degree standard elbows
• 45-degree elbow
• Gate valve
• Ball valve
• Globe valve
• 90-degree long-radius bend
• Sudden enlargement
• Sudden contraction
• 90-degree T-fitting or Y-fitting

Learning Objectives / Experiments :

• Study of pressure losses in pipes, piping elements and fittings
• Investigation of the effect of flow velocity on pressure loss
• Determination of resistance coefficients
• Investigation of opening characteristics of angle-seat valve and gate valve
• Familiarization with various measuring devices for determining flow rate
• Investigation using Venturi nozzle
• Investigation using orifice plate flow meter
• Investigation using measuring nozzle

Scope of Delivery :

• One experimental unit
• Two shut-off devices: angle-seat valve and gate valve
• One Venturi nozzle
• One orifice plate flow meter or measuring nozzle
• One set of hoses
• One set of tools
• One set of instructional material

• Investigation of pressure losses in the piping system
• Pressure measurement without interaction via annular chambers
• Transparent measuring objects for determining flow rate
• Determination of head loss associated with pipes and fittings
• Smooth pipes with at least two different diameters
• At least one rough pipe with known roughness
• Minimum pipe length: 1 m
• Variable flow rates
• Determination of loss coefficients for various fittings
• Rotameter for flow measurement
• Digital flow meter
• U-tube manometer
• Digital differential manometer
• Hydraulic bench with centrifugal pump and bypass pipe with valve
• Maximum hydraulic bench sump tank capacity: 300 L
• Maximum flow rate range: 60 to 110 L/min
• Manual data recording
