Flow Visualization in Channels Teaching Equipment

In research and training, flow processes are often considered in simplified models, such as pipe flows, open-channel drainage processes and incident flow of structures.

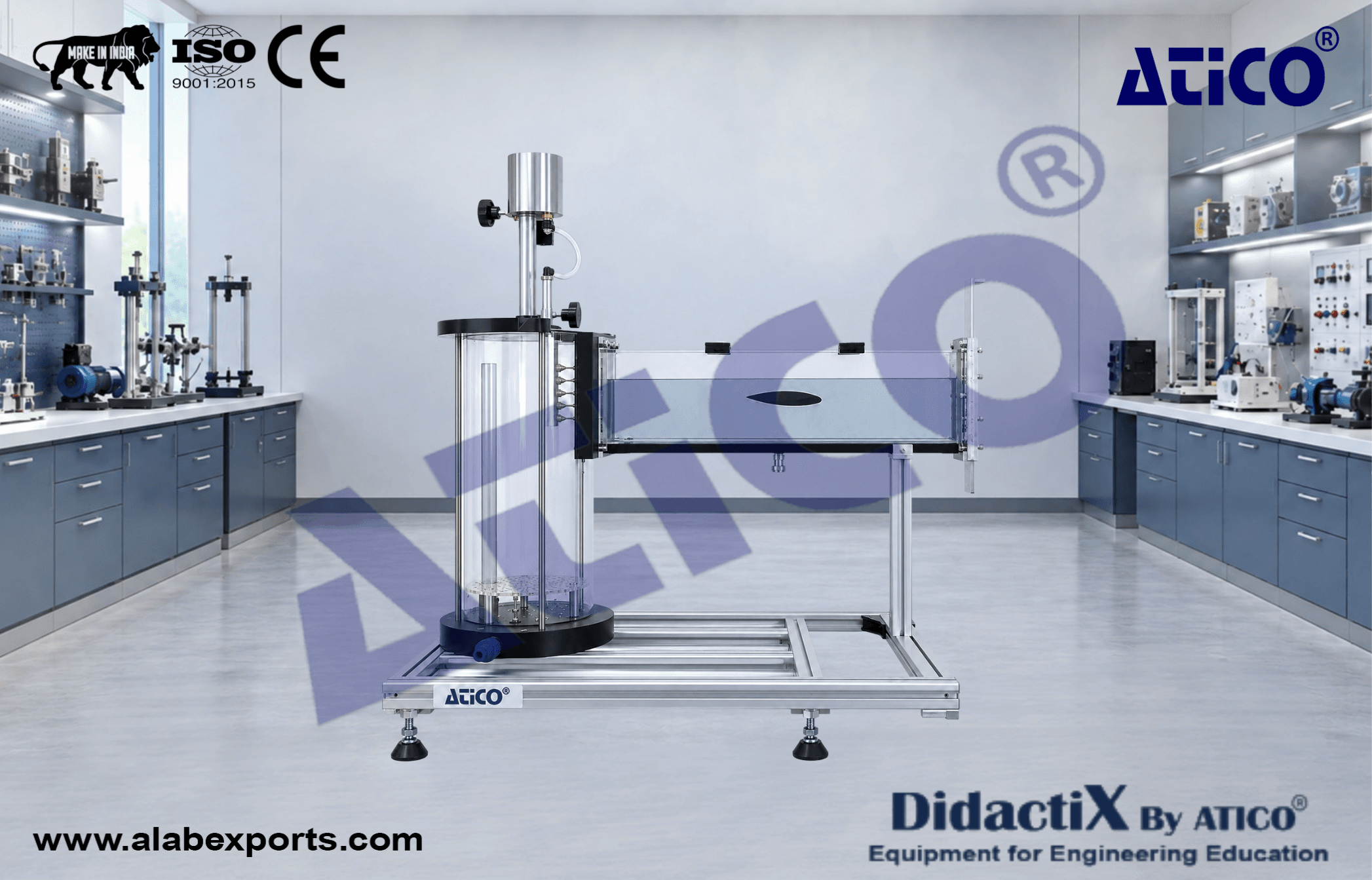

The experimental unit is designed to visualize flow around bodies, pipe flows and flow phenomena in open channels. Various models are fixed in the flow section, and streamlines are made visible using injected ink as a contrast medium. The flow section is illuminated from behind and features a transparent front panel.

Open-channel flow is demonstrated using two weirs. The downstream water level can be adjusted with the aid of another weir. Flow through different cross-sections is demonstrated using four models, including a tube bundle. Streamlines in flow around bodies are demonstrated using four drag bodies.

The unit includes a closed water circuit and can alternatively be operated using the laboratory water supply.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Experimental unit for visualization of various flow processes
• Illuminated flow section with transparent front panel
• Open-channel flow demonstrated using 2 weirs
• Flow through demonstrated using 4 differently shaped models
• Flow around solid bodies demonstrated using 4 drag bodies
• Contrast medium: Ink
• Optional operation via laboratory water supply or as a closed water circuit

Technical Details :

Flow Section :

• Capacity: Approx. 5 L

Contrast Medium :

• Ink
• Injection through 5 nozzles

Pump :

• Flow rate: 10 L/min
• Head: 5.7 m

Weirs :

• Broad-crested
• Sharp-crested

Drag Bodies :

• 2-cylinder cross-sections
• Aerofoil
• Symmetrical aerofoil
• Asymmetrical aerofoil

Change in Cross-Section / Flow Through :

• Gradual contraction
• Sudden enlargement
• Sudden contraction
• Gradual enlargement
• Sudden contraction / enlargement
• Tube bundle

Power Supply :

• 230 V, 50 Hz, 1 phase
• 230 V, 60 Hz, 1 phase
• 120 V, 60 Hz, 1 phase
• UL/CSA optional

Dimensions :

• L × W × H: 1000 × 310 × 680 mm

Weight :

• Approx. 25 kg
