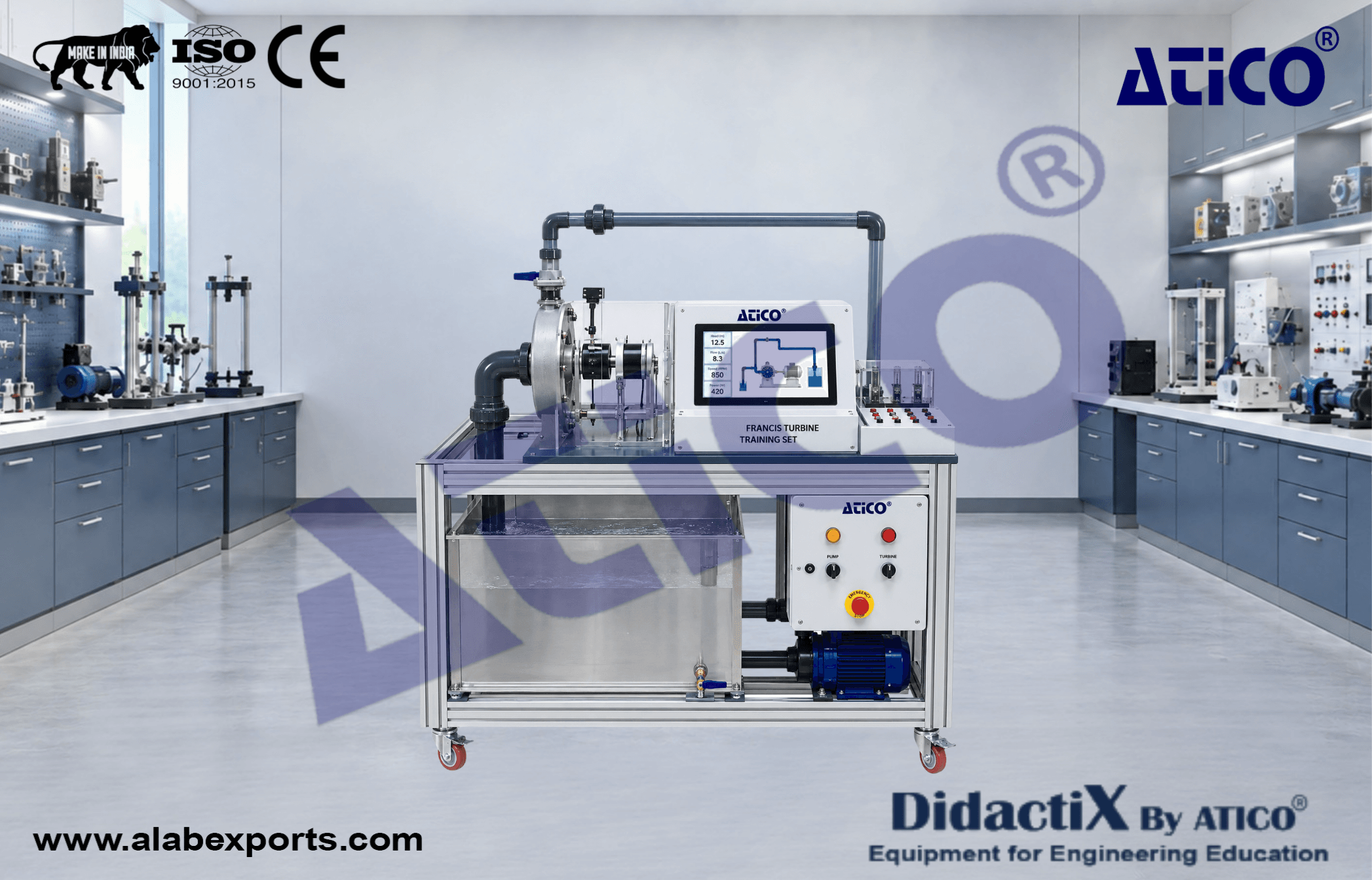

Francis Turbine Training Teaching Equipment

Water turbines are turbomachines that utilize water power. The Francis turbine is a type of reaction turbine that converts the pressure energy of water into kinetic energy in both the distributor and the rotor. Water is supplied to the distributor through a spiral housing and accelerated by adjustable guide vanes before being directed onto the rotor blades. The redirection and further acceleration of water in the rotor generates an impulse that is transferred to the rotor.

This teaching equipment is designed to demonstrate the operating principle of a Francis reaction turbine. The experimental unit consists of a rotor, distributor with adjustable guide vanes, band brake for loading the turbine and a housing with a transparent front panel. The transparent cover allows clear observation of the water flow, rotor and guide vanes during operation.

The angle of attack and consequently the rotor power can be varied by adjusting the guide vanes. Turbine torque is determined through force measurement using a band brake and spring balances. A non-contact speed sensor is used to measure rotational speed, while a pressure gauge indicates the water pressure at the turbine inlet.

The unit can be positioned securely on a suitable base module. Water supply and flow rate measurement can be provided through the base module or alternatively through the laboratory water supply.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Demonstration of the function of a Francis turbine
• Transparent front panel for observing the operating area
• Turbine loading using a band brake
• Adjustable guide vanes for setting different angles of attack
• Marking on brake drum for non-contact speed measurement
• Spring balances for determining turbine torque
• Pressure gauge for indicating pressure at the turbine inlet
• Flow rate determination using a suitable base module
• Water supply using a suitable base module or laboratory supply

Technical Details :

Turbine :

• Output: 12 W at 1100 min⁻¹
• Flow rate: Approx. 40 L/min
• Head: 8 m

Rotor :

• Number of blades: 7
• Blade width: 5 mm
• External diameter: 50 mm

Guide Vanes :

• Number of vanes: 6
• Adjustable: 20 stages

Measuring Ranges :

Force :

• 2 × 0 to 10 N

Pressure :

• 0 to 1 bar
