Free and Forced Vortex Profiles Teaching Equipment

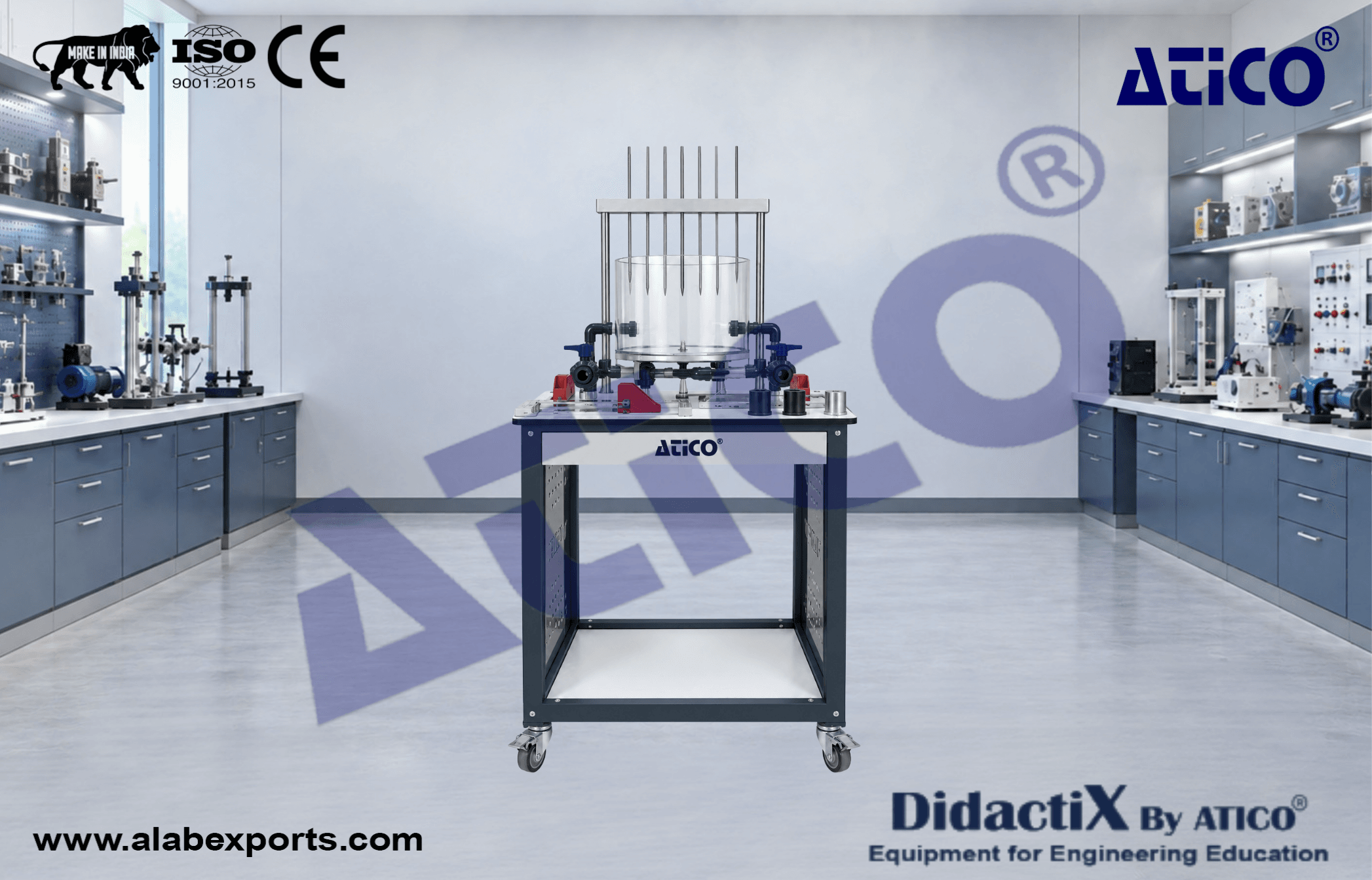

The Free and Forced Vortex Teaching Equipment is designed for practical demonstration and study of free and forced vortex formation in fluids. It provides a self-contained setup with its own pump, water storage reservoir and supporting table, allowing experiments to be performed independently.

The equipment enables students to observe different vortex profiles using three discharge funnels of different diameters. Forced vortex formation is produced by a DC motor, while the rotational speed can be precisely adjusted and monitored using a speed sensor and digital revolution counter.

A transparent water reservoir provides clear visibility of vortex formation and fluid behavior. A steel scale with horizontal and vertical vernier is provided for measuring and studying the vortex profile. The equipment also includes a drain valve for convenient water removal and a spirit level for proper leveling of the setup.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Designed for demonstration of free and forced vortex
• Self-contained system with pump, water storage and supporting table
• 3 discharge funnels with different diameters for creating different vortex profiles
• Forced vortex generated using a DC motor
• DC motor power: 90 W
• Steel scale with horizontal and vertical vernier for vortex profile measurement
• Precisely adjustable hopper rotation
• Speed sensor for monitoring rotational speed
• Digital revolution counter
• Transparent water reservoir for clear observation of vortex formation
• Water chamber diameter: Minimum 250 mm
• Drain valve for draining the water reservoir
• Spirit level for proper leveling
• Supplied fully assembled, tested and ready to operate

Technical Specifications :

Motor :

• Type: DC motor
• Power: 90 W

Water Chamber :

• Diameter: Minimum 250 mm
• Transparent construction

Discharge Funnels :

• 3 different diameters

Measuring System :

• Steel scale with horizontal and vertical vernier
• Speed sensor
• Digital revolution counter

Dimensions :

• Width × Depth × Height: 900 × 700 × 1200 mm
