Frost Formation Setup Teaching Equipment

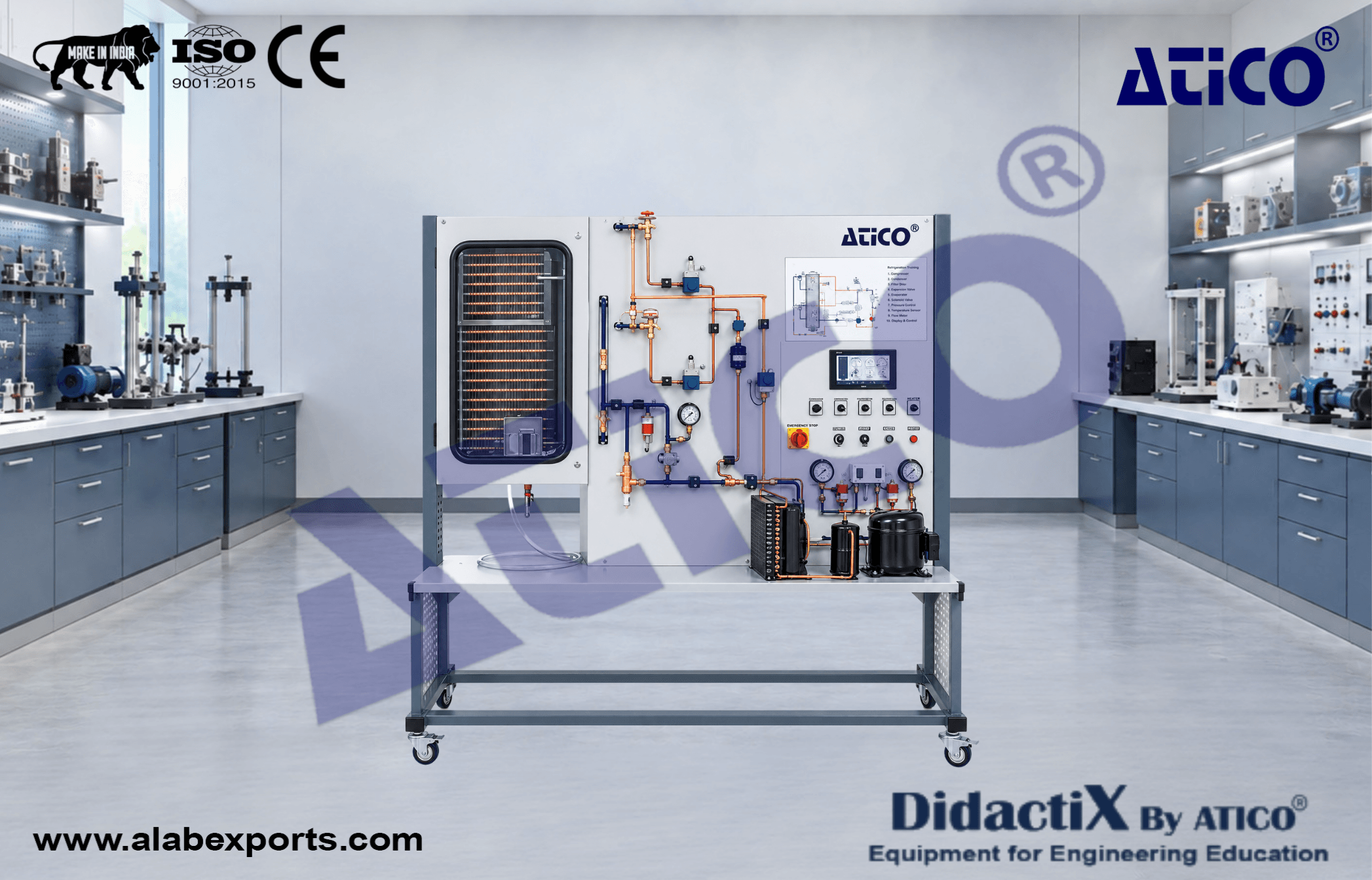

Frost Formation Setup is designed for practical teaching and investigation of frost formation in refrigeration systems and different defrosting methods. The system enables students to study the climate inside a refrigeration chamber, frost formation processes and the effects of different defrosting techniques.

The refrigeration system is equipped with two separately switchable evaporators controlled by solenoid valves. Electric defrost heating and hot gas defrosting are provided for comparative studies. A defrost controller and defrost timer support controlled defrosting operations.

The setup includes latent and sensible cooling loads, with adjustable evaporation pressure and temperature. A heat exchanger is provided for refrigerant superheating and supercooling. Temperature and humidity inside the refrigeration chamber can be digitally displayed, while the refrigerant mass flow rate can be calculated from recorded measured values.

The system supports data acquisition and online representation of the h-x diagram for analysis of refrigeration and air-conditioning processes.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Compressor :

• Power consumption: 565 W at 7.2/54.4 °C
• Refrigeration capacity: 1363 W at 7.2/54.4 °C

Cooling Loads :

• Latent cooling load: 2 × 0…250 W
• Sensible cooling load: 1 × 0…200 W
• Sensible cooling load: 1 × 0…250 W

Receiver :

• Capacity: 1.3 L

Refrigerant :

• R134a

Measuring Ranges :

• Pressure: 2 × 0…16 bar
• Pressure: 1 × 0…25 bar
• Temperature: 7 × -50…150 °C
• Temperature: 1 × -25…125 °C
• Relative humidity: 0…100%
• Refrigerant flow rate: 0…39 kg/h

Power Supply :

• 230 V, 50 Hz, 1 phase

• Refrigeration system for investigating the climate in the refrigeration chamber and different defrosting methods
• Two evaporators, separately switchable via solenoid valves
• Electric defrost heater
• Hot gas defrosting
• Defrost controller and defrost timer
• Latent and sensible cooling loads
• Adjustable evaporation pressure and temperature
• Heat exchanger for superheating and refrigerant supercooling
• Digital display for temperature and humidity in the refrigeration chamber
• Refrigerant mass flow rate calculated from recorded measured values
• Online representation of the h-x diagram
• Data acquisition via Ethernet
• Suitable for studying frost formation and defrosting processes
