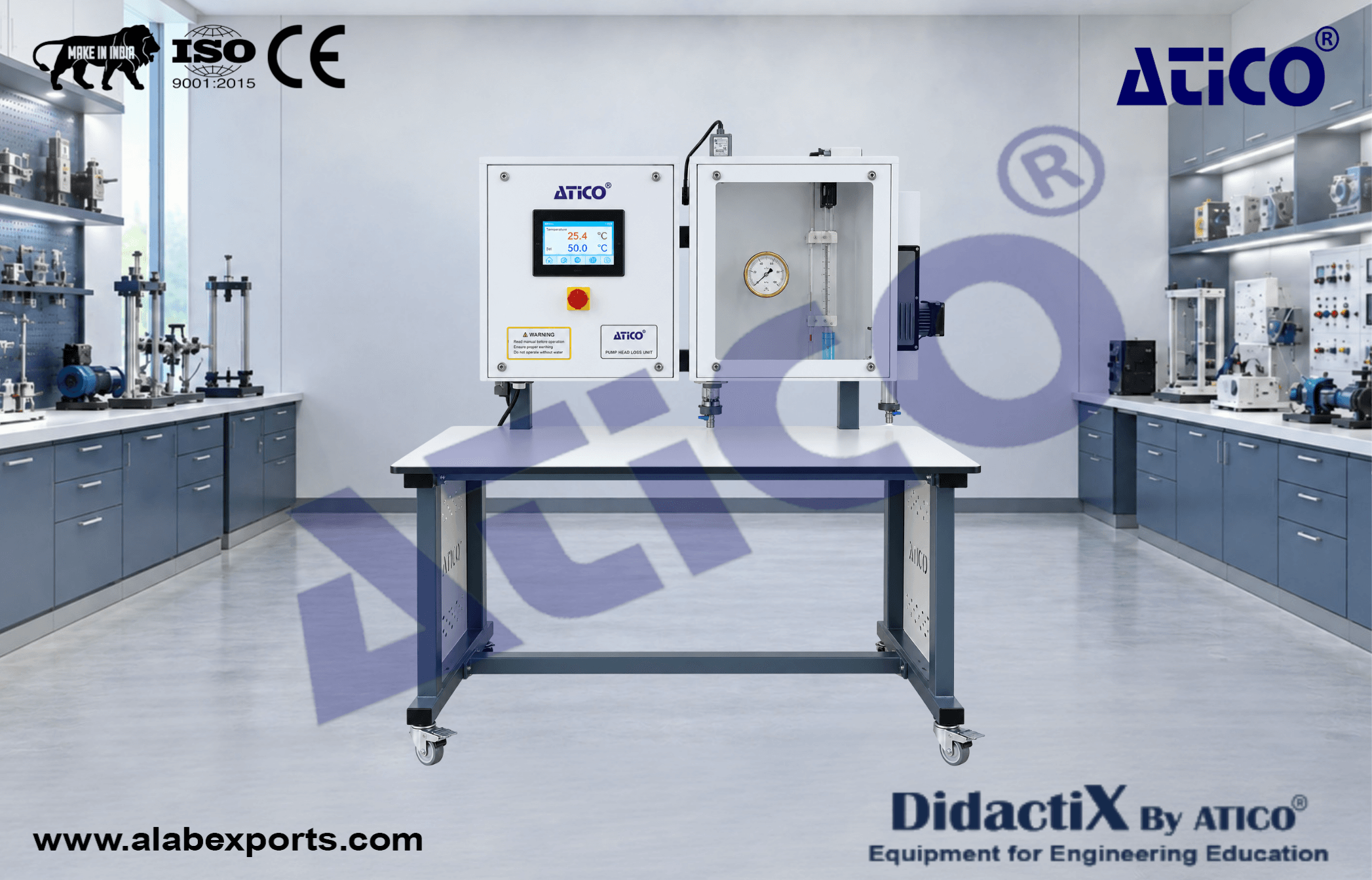

Fundamentals of Humidity Measurement Training Set

Air humidity measurement plays an important role in many industrial applications, including drying processes and air conditioning of buildings and vehicles. Different measurement methods are used to determine humidity, and their characteristics can be studied and compared through practical experimentation.

This Humidity Measurement Teaching Equipment is designed to demonstrate and compare four different methods of air humidity measurement. It includes two mechanical instruments, a psychrometer and hair hygrometer, along with two electronic instruments, a capacitive humidity sensor and a hygrometer with synthetic fiber and combined temperature sensor.

The core of the trainer is a climatic chamber with a transparent door. The chamber can be humidified and dehumidified to create different humidity conditions for comparative measurements. An ultrasonic atomizer is used for humidification, while a Peltier cooling element provides dehumidification. A fan ensures continuous air circulation and good mixing inside the chamber.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Demonstration of different methods for measuring air humidity
• Climatic chamber with adjustable humidity and transparent door
• Humidification using an ultrasonic atomizer
• Dehumidification using a Peltier cooling element
• Fan for air recirculation
• 2 mechanical instruments: psychrometer and hair hygrometer
• 2 electronic instruments: capacitive sensor and hygrometer with synthetic fiber and combined temperature sensor

Technical Details :

Humidifier :

• Type: Ultrasonic atomizer
• Power consumption: 21.6 W
• Low water cut-off

Dehumidifier :

• Type: Peltier element
• Cooling capacity: 56.6 W at 50°C ambient temperature
• Cooling surface: 1600 mm²

Hair Hygrometer :

• Deflective needle
• Measuring range: 0 to 100% RH

Hygrometer with Synthetic Fiber :

• Output voltage: 0 to 10 V
• Measuring range: 0 to 100% RH
• Temperature range: -30 to 80°C

Capacitive Sensor :

• Digital display
• Output voltage: 0 to 10 V
• Measuring range: 1 to 100% RH

Psychrometer :

• With thermometer
• Measuring range: -10 to 60°C
• Graduation: 0.5°C

Power Supply :

• 230 V, 50 Hz, 1 phase
• 120 V, 60 Hz, 1 phase
• 230 V, 60 Hz, 1 phase
