Fundamentals of Wind Power Plants Teaching Equipment

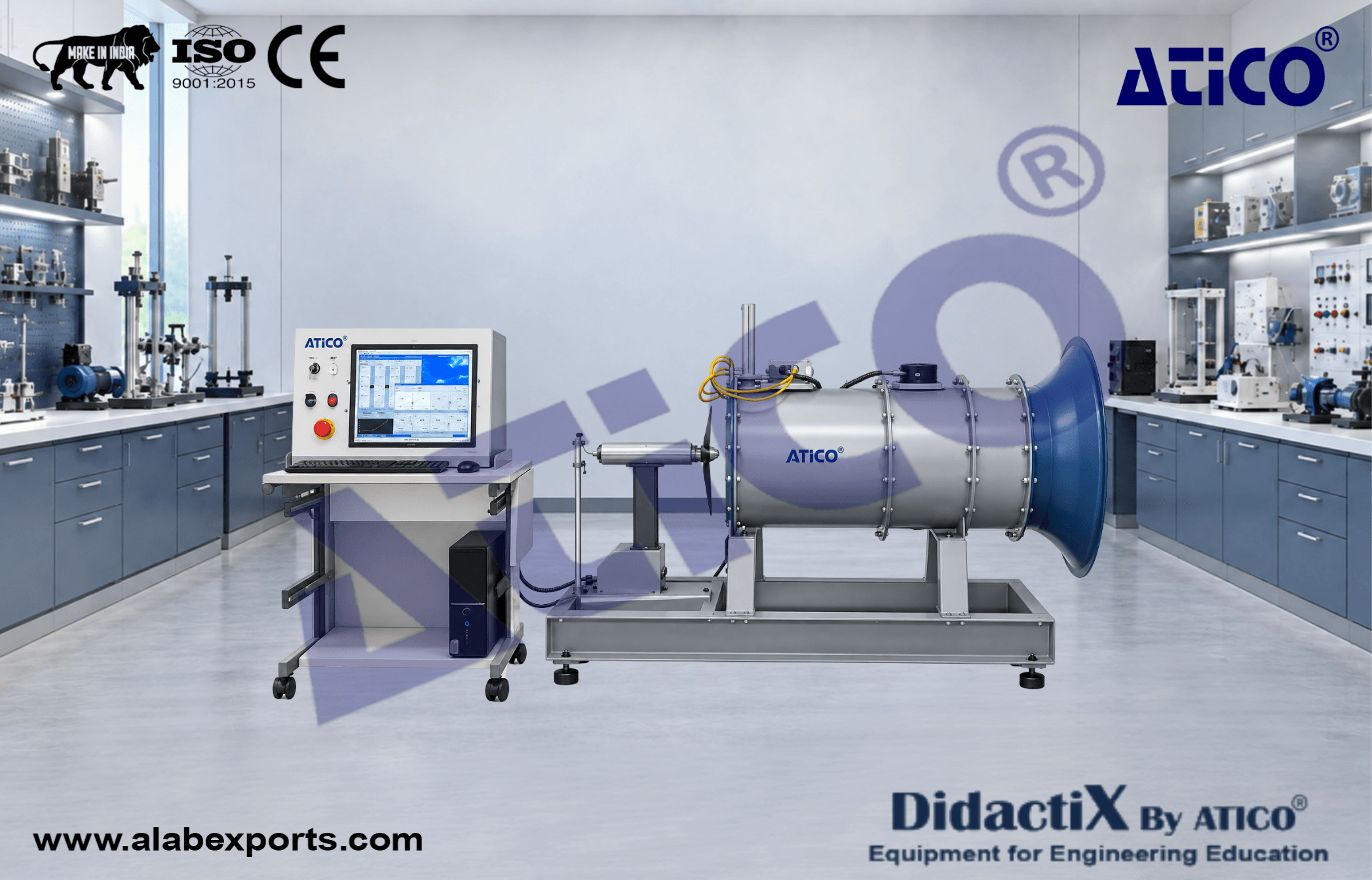

Fundamentals of Wind Power Plants is designed for practical teaching and demonstration of the basic principles of wind power generation. The system features a gearless wind power plant with a three-blade rotor, variable-speed generator system and adjustable rotor blade and yaw angles.

Power regulation is achieved through rotor blade adjustment, with interchangeable rotor blades provided for investigating different rotor blade profiles. An adjustable-speed fan generates the required airflow for practical experiments.

Sensors are used to measure wind velocity, rotor speed and yaw angle. The system can be controlled and operated via PC using software as well as through the control elements on the experimental unit.

The system also supports network-based operation, allowing experiments to be observed, acquired and analyzed from multiple workstations through a LAN/WLAN network. A detailed online e-learning course on the fundamentals of wind power is also available for remote learning.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Wind Power Plant :

• Rotor diameter: 0.3 m
• Number of rotor blades: 3
• Rated electrical power: approximately 6 W
• Rated wind velocity: 10 m/s
• Rated speed: 2865 min⁻¹
• Designed tip-speed ratio: 4.5
• Rotor blade adjustment: −5–35°
• Weight: approximately 1.6 kg
• L × W × H: approximately 270 × 65 × 90 mm

Generator :

• Rated voltage: 12 V
• Rated current: 2.02 A

Rotor Blades :

• 3 × straight rotor blade profile
• 3 × optimized rotor blade profile

Wind Tunnel / Axial Fan :

• Diameter: 400 mm
• Maximum volumetric flow rate: 6860 m³/h
• Maximum power consumption: 1.1 kW

Measuring Ranges :

• Wind velocity: 1–15 m/s
• Speed: 0–4000 min⁻¹
• Current: ±2.02 A
• Yaw angle: ±40°

• Wind power plant with adjustable rotor blade and yaw angle
• Remote learning with detailed e-learning course on the basics of wind power
• Gearless wind power plant with 3-blade rotor
• Variable-speed generator system
• Power regulation by rotor blade adjustment
• Interchangeable rotor blades
• Adjustable-speed fan for generating the required airflow
• Sensors for measuring wind velocity, rotor speed and yaw angle
• PC-based control and operation
• Control elements on the experimental unit
• Network capability via LAN/WLAN
• Observation, acquisition and analysis of experiments from multiple workstations
• PC software with USB connection
• Windows-compatible software
