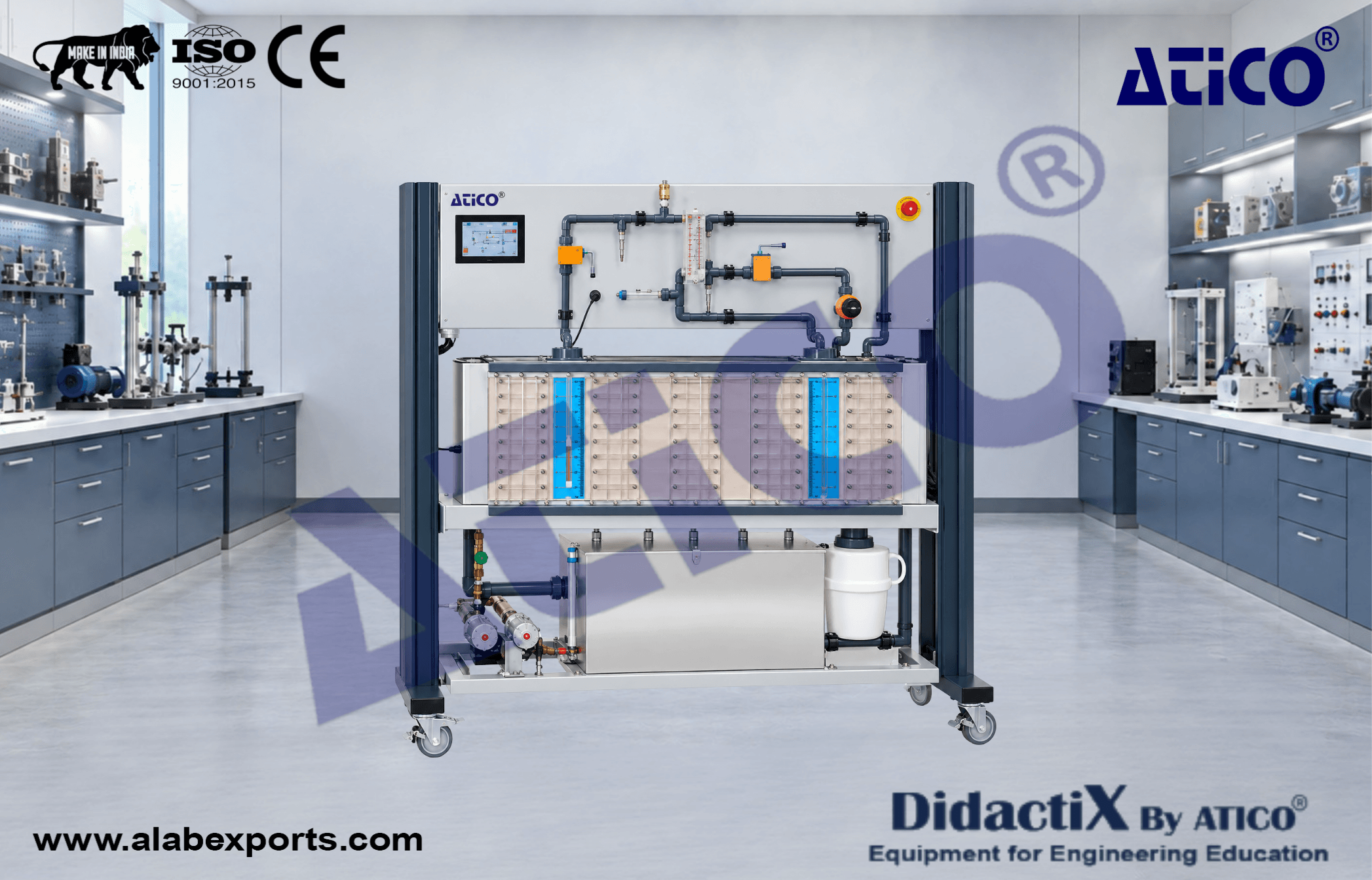

Geothermal Energy with Two Well System

Geothermal Energy with Two-Well System is designed for the demonstration and practical investigation of a two-well system for utilizing geothermal energy. The system features a temperature-controlled groundwater circuit for studying heat transfer and groundwater flow.

Height-adjustable overflows allow adjustment of the groundwater flow, while the pump in the production well provides adjustable flow rates. Temperature and flow rate measurements enable determination of the transmitted heat capacity.

A multi-tube manometer is provided for visualizing groundwater levels. The working medium can be supplied through a laboratory water supply or water chiller. The system also supports calculation of transmitted heat capacity and simulation of the energy balance of a heat pump.

PC-based software enables data acquisition via USB for recording and analyzing experimental results.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Experimental Section :

• L × W × H: approximately 1600 × 270 × 470 mm

Production Well Pump :

• Power consumption: maximum 72 W
• Maximum flow rate: approximately 16 L/min

Storage Tank Pump :

• Power consumption: approximately 70 W
• Maximum flow rate: approximately 18 L/min

Storage Tank :

• Capacity: approximately 135 L

Plate Heat Exchanger :

• Heat transfer surface: 0.39 m²
• Number of plates: 30

Heater :

• Power consumption: maximum 8 kW

Measuring Ranges :

• Temperature: 0–50 °C
• Flow rate, production well: 2.5–16 L/min
• Flow rate, groundwater circuit: 5–18 L/min

• Demonstration and operation of a two-well system for utilizing geothermal energy
• Temperature-controlled groundwater circuit
• Height-adjustable overflows for adjusting groundwater flow
• Adjustable pump flow rate in the production well
• Temperature and flow rate measurement
• Determination of transmitted heat capacity
• Multi-tube manometer for visualizing groundwater levels
• Working medium supply via laboratory water supply or water chiller
• Calculation of transmitted heat capacity
• Simulation of the energy balance of a heat pump
• PC-based data acquisition via USB
• Windows-compatible software
