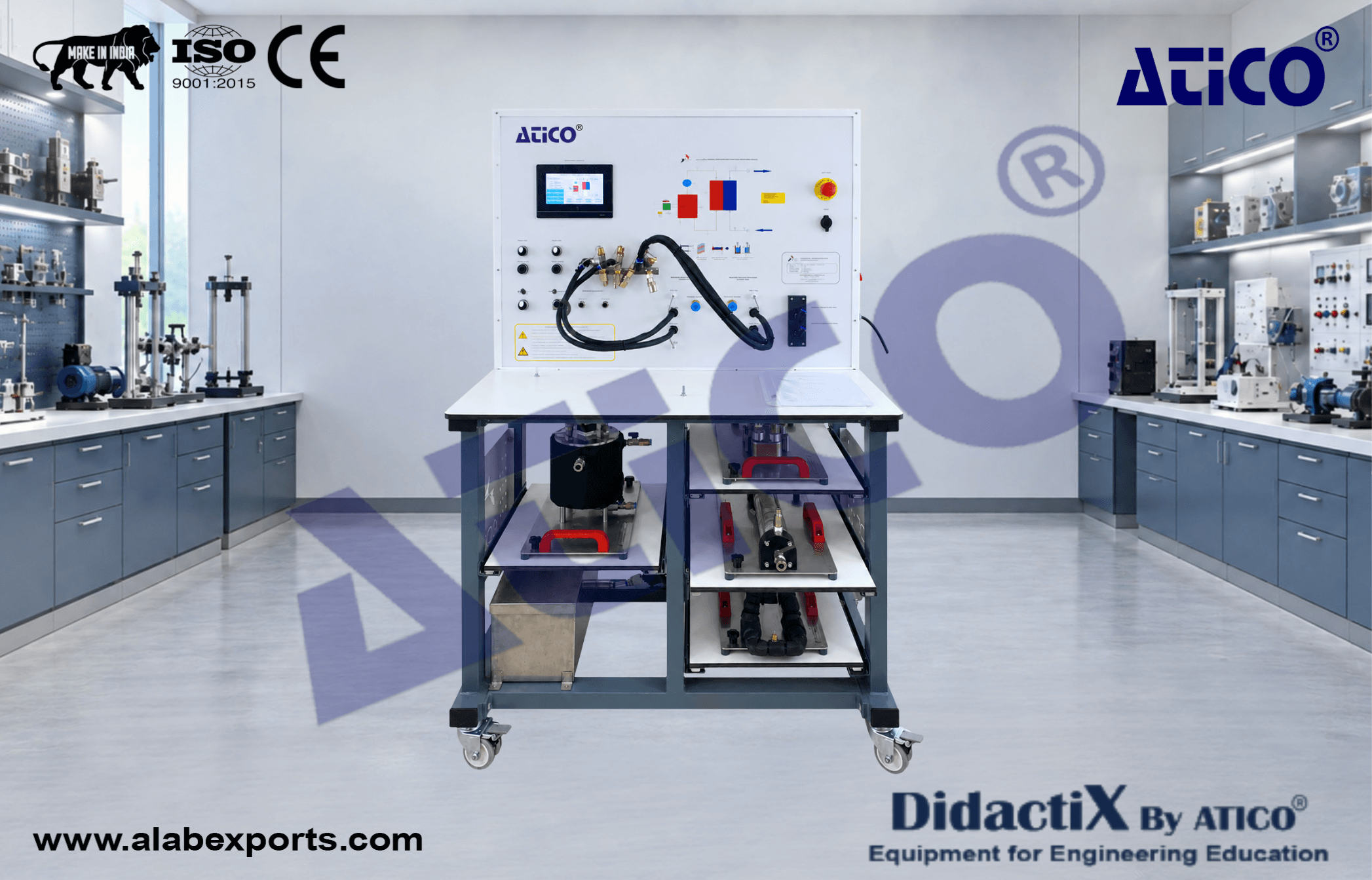

Heat Exchanger Experiment Teaching Equipment

Heat Exchanger Experiment Equipment is designed for practical study of the construction, operating principles and performance of different types of heat exchangers. It provides a comprehensive laboratory setup for investigating heat transfer processes and comparing different heat exchanger configurations under various operating conditions.

The equipment includes shell-and-tube, plate, air or air-to-water and pipe-in-pipe heat exchangers. An electric water heater and circulation pumps provide controlled operating conditions, while the hydraulic piping system with valves and fittings supports flexible experimental arrangements.

The measuring system and electronic unit allow students to monitor relevant operating parameters and determine thermal performance. Experiments can be conducted to evaluate transferred thermal power, heat transfer coefficients and heat losses under different operating modes.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Aluminum frame
• Hydraulic piping system with valves, taps and fittings
• Shell-and-tube heat exchanger
• Plate heat exchanger
• Air heat exchanger / pipe-in-pipe heat exchanger
• Electric water heater
• Circulation pumps
• Measuring system
• Electronic unit
• Complete laboratory equipment set for heat exchanger experiments
• Description of possible laboratory experiments included

Experiments :

• Study of the construction and operating principle of a shell-and-tube heat exchanger
• Study of the construction and operating principle of a plate heat exchanger
• Study of the construction of an air or air-to-water heat exchanger
• Determination of transferred thermal power of a pipe-in-pipe heat exchanger under different operating modes
• Determination of heat transfer coefficient
• Determination of heat loss coefficient

Power Specifications :

• Power: 2.5 kW
• Voltage: 220 V ±10%
• Frequency: 50 Hz
• Power cable: European standard

Dimensions and Weight :

• Height: 700 mm
• Width: 600 mm
• Depth: 700 mm

Delivery Set :

• Heat Exchanger Laboratory Equipment: 1 set
• Description of possible laboratory experiments with the equipment: 1 set
