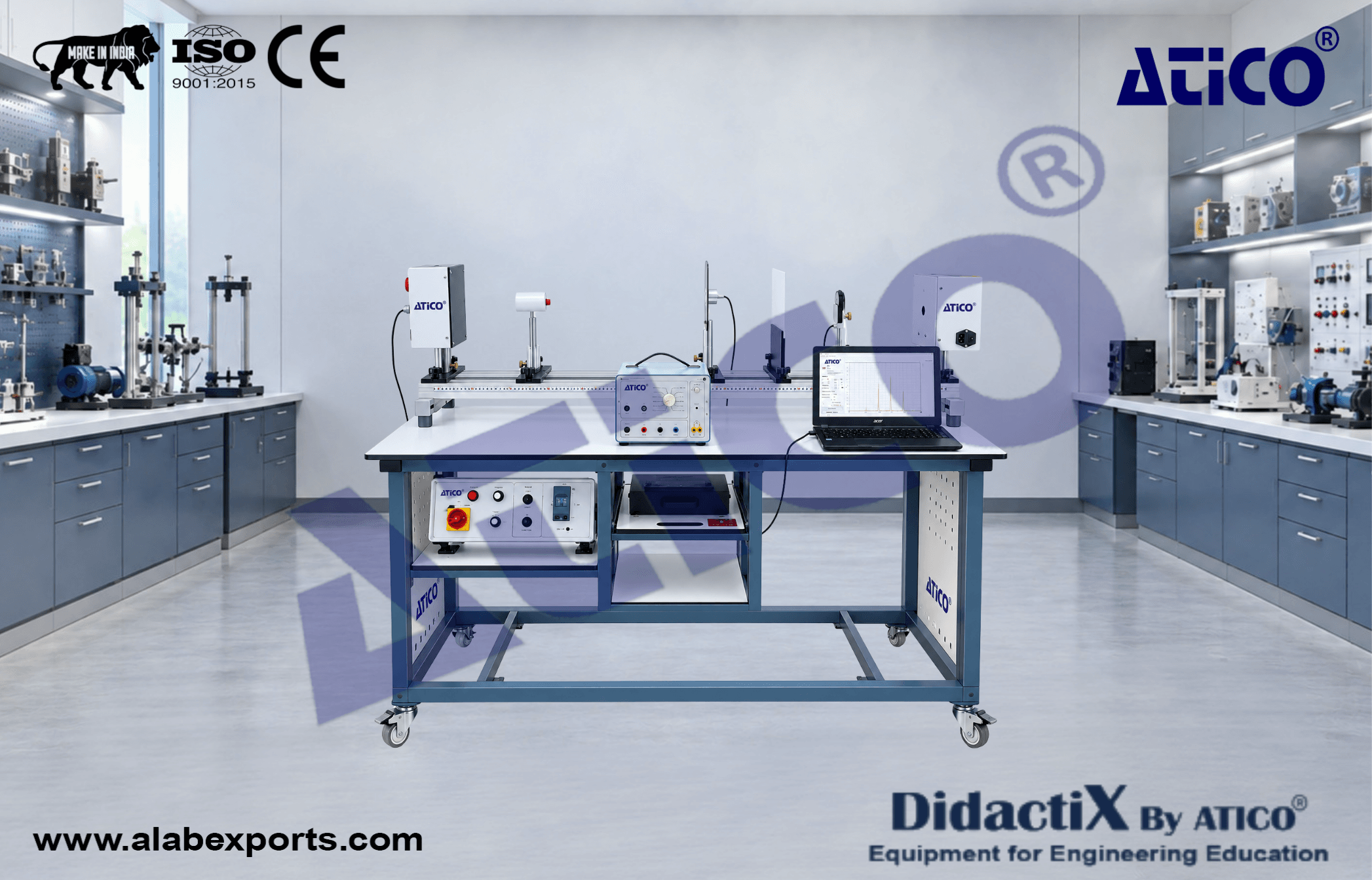

Laws of Radial Heat Transfer and Exchange Teaching Equipment

Thermal radiation is a non-material-bound form of energy transfer through electromagnetic waves within a specific wavelength range. Any body with a temperature above absolute zero emits thermal radiation, which includes infrared radiation, visible light and ultraviolet radiation.

This Laws of Radiant Heat Transfer and Exchange Teaching Equipment is designed for practical investigation of thermal and light radiation. The system includes a thermal radiator and a light source, with thermal radiation detected using a thermopile and light radiation measured using a lux meter. Various optical elements can be positioned between the emitter and detector to study radiation behavior.

A range of optical elements, including apertures, absorption plates, reflection plates and color filters, enables investigation of reflection, absorption and transmission at different wavelengths and temperatures. The radiant output of the emitters can be adjusted. The thermal radiator, light source and measuring instruments can be rotated to study the influence of distance and angle of incidence on radiation intensity.

The equipment supports practical verification of fundamental radiation laws, including Lambert’s law, the Stefan-Boltzmann law and Kirchhoff’s laws. Measured values are displayed digitally and can be transferred to a PC through a data acquisition system for further analysis.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Demonstration and investigation of thermal and light radiation
• Thermal radiator and thermopile for studying thermal radiation
• Light source and lux meter for studying light radiation
• Absorption and reflection plates for investigation of radiation laws
• Adjustable thermal radiator and light source output
• 3 color filters: red, green and infrared
• Slit diaphragm with holder
• Lux meter for measuring illumination
• Thermocouple for temperature measurement
• Thermopile for measuring radiant power
• Data acquisition system included
• PC-based data acquisition and analysis
• Supplied fully assembled, tested and ready to operate

Technical Details :

Thermal Radiator :

• Material: AlMg 3, black anodized
• Output: 400 W at 230 V
• Maximum achievable temperature: 300°C

Bright Field Plate :

• Length × Width: 200 × 200 mm

Light Source :

• Type: Halogen lamp
• Output: 50 W
• Luminous flux: 1185 lm
• Color temperature: 2950 K

Rotation Range :

• Both sides: 0 to 90°

Optical Elements :

• Radiating lens: 193 × 193 mm
• Orifice plate: Ø25 mm
• Slit diaphragm
• 3 color filters: red, green and infrared
• Absorption plate and reflection plate
• Thermocouple Type K
• Plates with matt black lacquered surface

Measuring Ranges :

Illumination :

• 0 to 1000 lux

Temperature :

• 2 pieces: 0 to 200°C

Radiant Power :

• 0 to 1000 W/m²

Experiments :

• Lambert’s law of direction
• Lambert’s law of distance
• Stefan-Boltzmann law
• Kirchhoff’s laws
• Radiation absorption
• Radiation reflection
• Study of thermal and light radiation emission
• Influence of distance and angle of incidence
• Investigation of radiation behavior using different optical elements

Required for Operation :

• PC with Windows recommended
