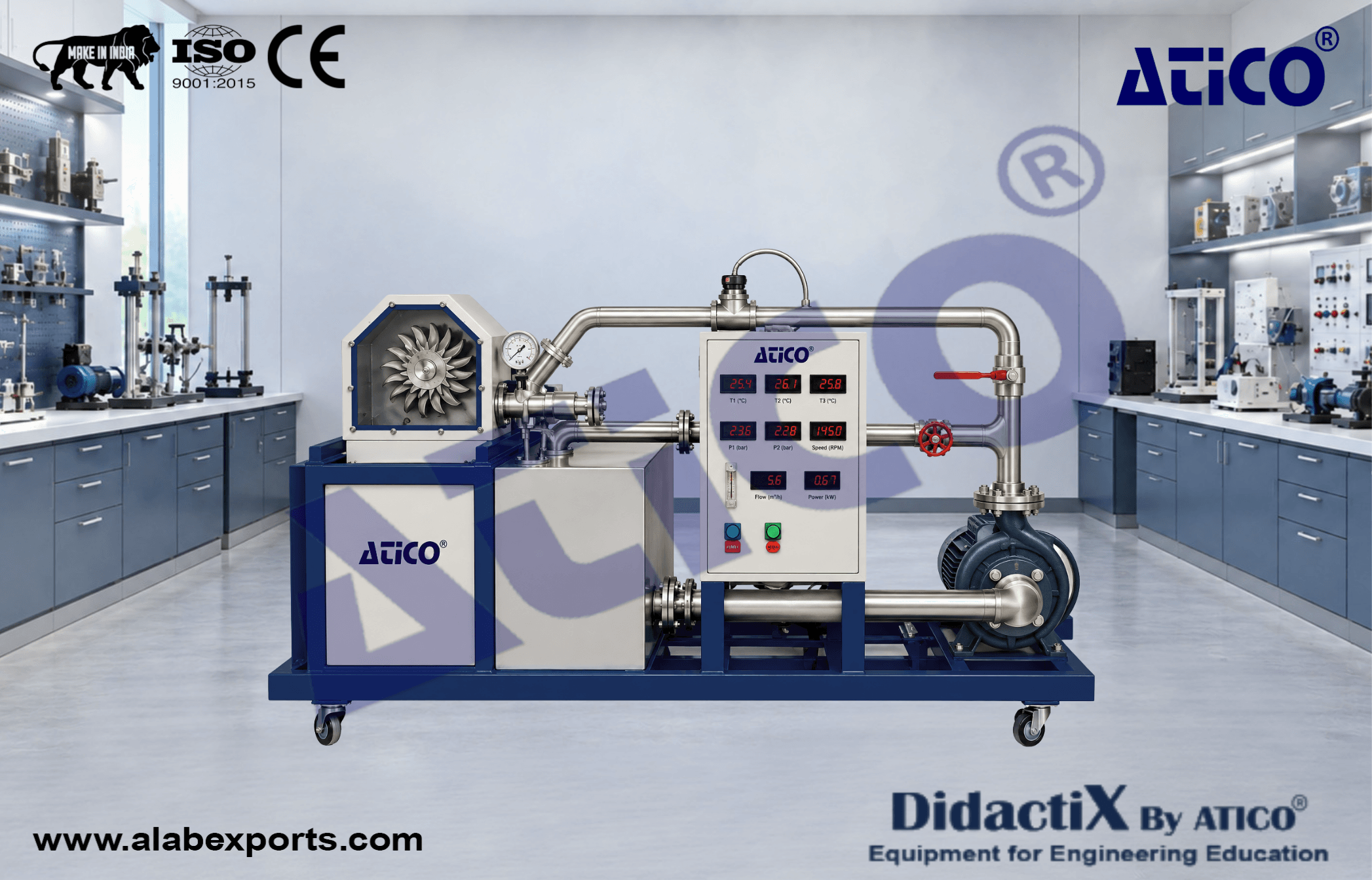

Operating Principle of a Pelton Turbine Teaching Equipment

Operating Principle of a Pelton Turbine is designed for practical investigation and demonstration of turbine operating principles and hydraulic power conversion. The system features a closed water circuit with a pump, motor, flow control valve and water tank with optional cooling.

The multistage centrifugal pump operates at variable speed through a frequency converter, while the flow rate can be adjusted using the flow control valve. The turbine can be loaded by using an asynchronous machine as a generator.

The turbine rotor and guide vanes are completely visible for direct observation of water flow and turbine operation. Adjustable guide vanes allow different angles of attack to be set for practical investigation.

Non-contact speed measurement at the generator shaft and a force sensor are provided for measuring turbine operating parameters. Temperature, pressure, flow rate, torque, speed and generator power can be measured during experiments.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Turbine :

• Hydraulic power: 2.1 kW at 1500 min⁻¹
• Mechanical power: approximately 1.4 kW at 1500 min⁻¹
• Rotor diameter: 120 mm
• Number of rotor blades: 15
• Number of guide vanes: 10
• Guide vane angle of attack: adjustable from 0–23°

Centrifugal Pump :

• Type: Multistage centrifugal pump
• Variable speed
• Power consumption: 5.5 kW
• Maximum flow rate: 900 L/min
• Pump head: 42 m

Generator :

• Type: Asynchronous machine
• Output: 2.2 kW at 1440 min⁻¹

Tank :

• Capacity: 550 L

Measuring Ranges :

• Temperature: 0–100 °C
• Inlet pressure at turbine: ±1 bar
• Outlet pressure at turbine: 0–6 bar
• Flow rate: 0–1000 L/min
• Torque: 0–20 Nm
• Speed: 0–3000 min⁻¹
• Power: 0–2200 W (generator)

Power and Electrical :

• Mains connection: 400 V, 50 Hz, 3 phase

• Investigation of turbine operating principles
• Closed water circuit with pump, motor, flow control valve and tank
• Optional tank cooling
• Variable-speed pump controlled via frequency converter
• Flow rate adjustment using flow control valve
• Turbine loading using an asynchronous machine as generator
• Completely visible rotor and guide vanes
• Adjustable guide vanes for setting different angles of attack
• Non-contact speed measurement at the generator shaft
• Force sensor for measuring driving force
• Integrated measurement of temperature, pressure, flow rate, torque, speed and power
