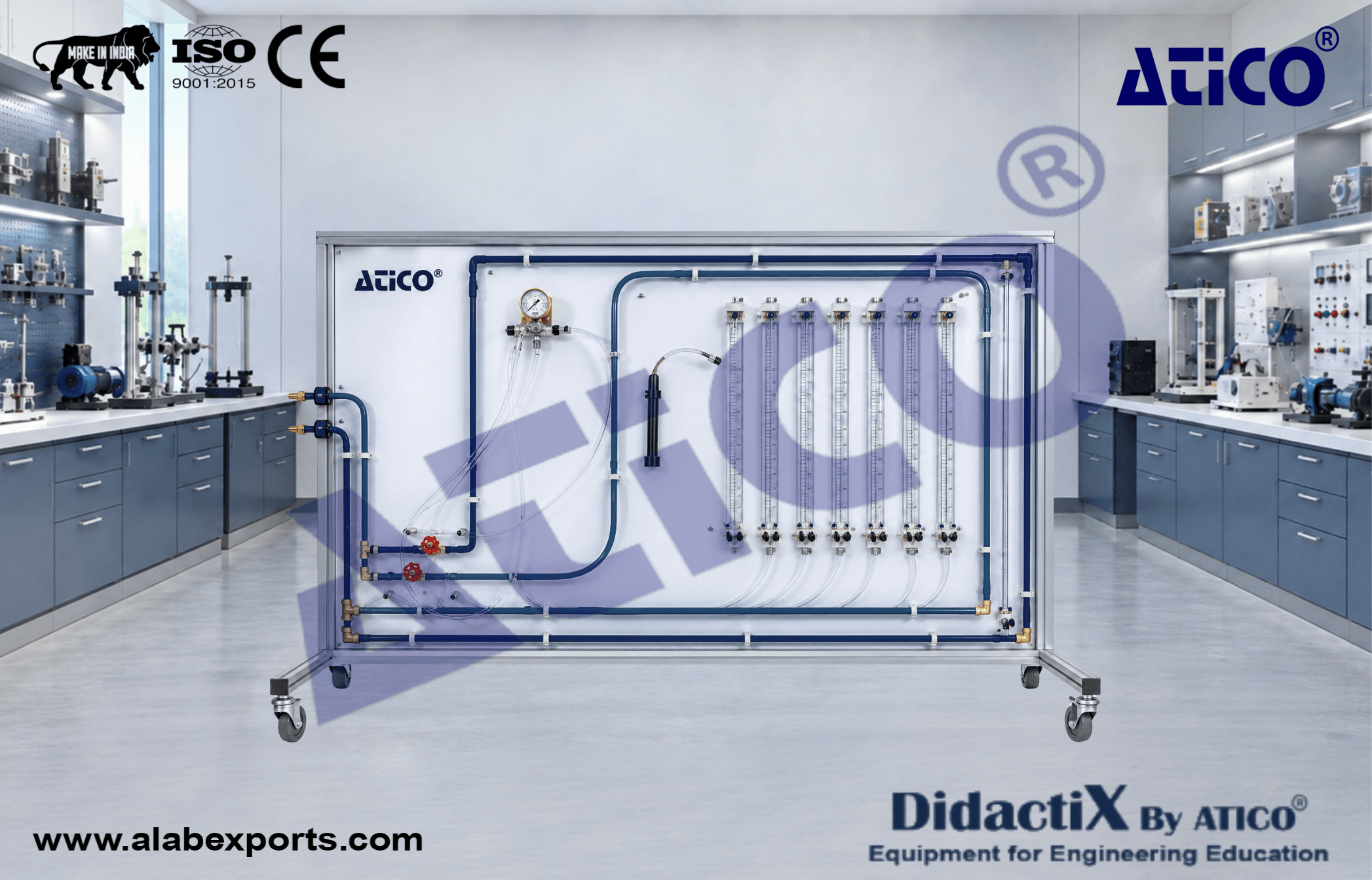

Pressure Losses in Piping System Teaching Equipment

This experimental unit is designed for the investigation of pressure losses during flow through various pipe fittings and a ball valve. It enables practical study of sudden contraction, sudden enlargement, pipe bend, segment bend, pipe angle and ball valve as measurement objects.

Annular chambers allow precise measurement of pressure at different points in the piping system. Six tube manometers provide visual pressure readings, while a Bourdon tube pressure gauge is used for pressure measurement. The flow rate can be determined using a suitable base module, with water supplied either through the base module or directly from the laboratory supply.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Investigation of pressure loss in flow through pipe fittings and ball valve
• Sudden contraction and sudden enlargement as measurement objects
• Pipe bend, segment bend and pipe angle as measurement objects
• Ball valve as a measurement object
• Annular chambers for precise pressure measurement
• 6 tube manometers for displaying pressures
• Bourdon tube pressure gauge for pressure measurement
• Flow rate determined by a suitable base module
• Water supply via base module or laboratory supply

Technical Details :

Pipe :

• Material: PVC
• Inner diameter: 17 mm

Pipe Elements :

• Material: PVC
• Inner diameter: d

Sudden Contraction :

• From d = 17 mm to d = 9.2 mm

Sudden Enlargement :

• From d = 9.2 mm to d = 17 mm

Segment Bend :

• Diameter: 17 mm
• Angle: 90°

Pipe Angle :

• Diameter: 17 mm
• Angle: 90°

Narrow Pipe Bend :

• Diameter: 17 mm
• Radius: 40 mm
• Angle: 90°

Wide Pipe Bend :

• Diameter: 17 mm
• Radius: 100 mm
• Angle: 90°

Measuring Ranges - Pressure :

• 1 × 0...1.6 bar
• 6 × 0...0.03 bar
