Propeller Type Turbine Trainer

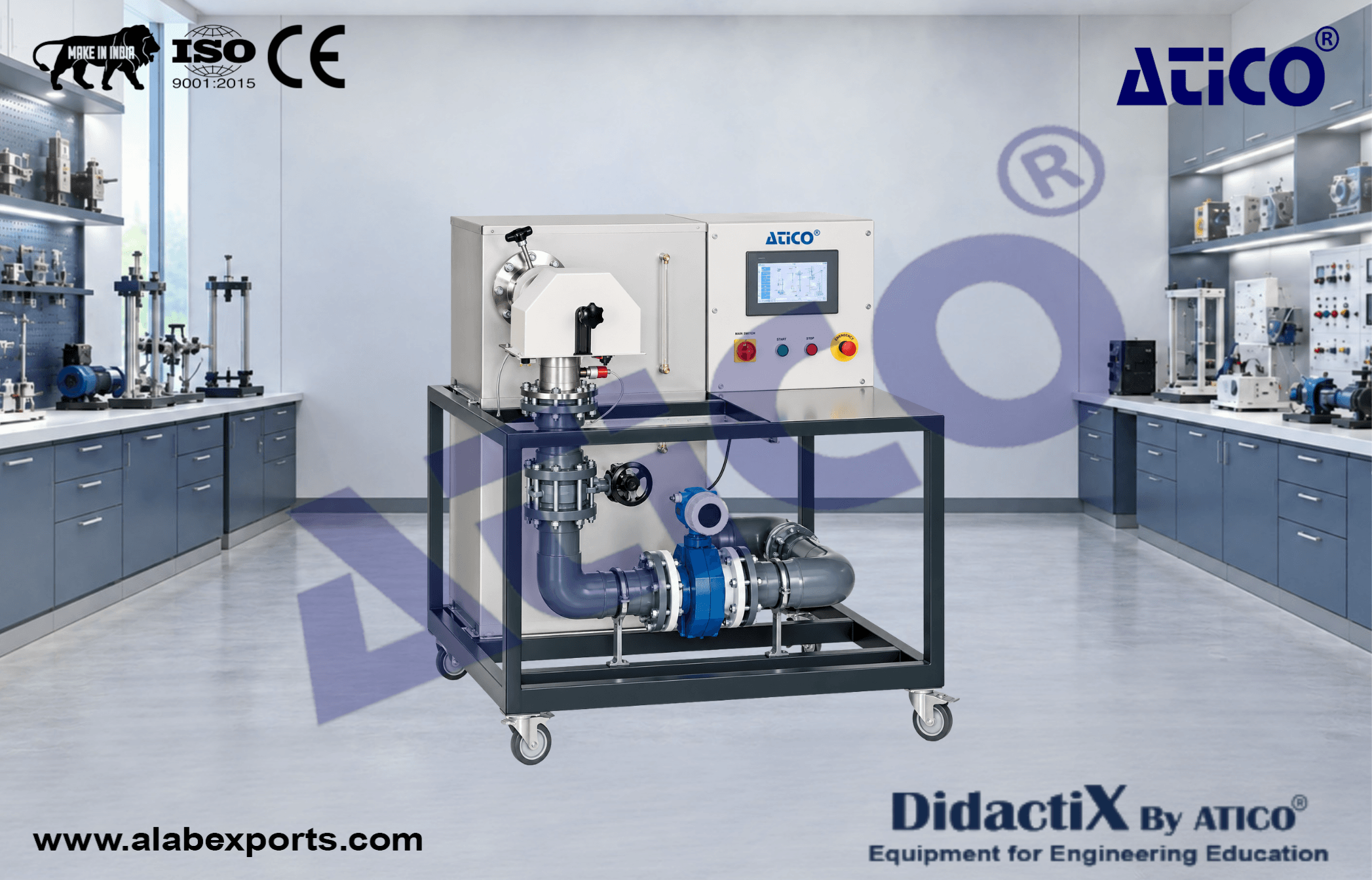

Propeller Type Turbine Trainer is designed for practical teaching and investigation of the operating principle and performance of a propeller-type turbine. The system features a closed water circuit with a submersible pump, throttle valve and water tank.

The flow rate can be adjusted using the throttle valve, while the turbine is loaded using an air-cooled eddy-current external brake. The turbine has a rotor with fixed blades and adjustable guide vanes for setting different angles of attack.

Non-contact speed measurement is provided at the turbine shaft, while a force sensor at the brake enables torque measurement. A digital display provides measurement of pressure, temperature, flow rate, speed and torque.

Data acquisition is supported through PC-based software via USB for recording and analysis of experimental results.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Propeller-Type Turbine :

• Maximum output: 1000 W
• Maximum speed: 3700 min⁻¹

Distributor / Guide Vanes :

• Number of guide vanes: 8
• Adjustable angle: −15–45°
• External diameter: 120 mm
• Internal diameter: 60 mm

Rotor :

• Number of blades: 4
• Blade type: Fixed
• External diameter: 120 mm
• Internal diameter: 60 mm
• Pitch: 80 mm

Submersible Pump with Motor :

• Maximum flow rate: 250 m³/h
• Maximum pump head: 11 m
• Nominal power: 3.1 kW

Tank :

• Capacity: approximately 350 L

Measuring Ranges :

• Temperature: 0–100 °C
• Pressure at turbine inlet: 0–1 bar relative
• Pressure at turbine outlet: −1–0.6 bar relative
• Flow rate: 13–200 m³/h
• Torque: 0–10 Nm
• Speed: 0–6500 min⁻¹

• Function and operation of a propeller-type turbine
• Closed water circuit with submersible pump, throttle valve and tank
• Flow rate adjustment using throttle valve
• Turbine loading using an air-cooled eddy-current external brake
• Rotor with fixed blades
• Adjustable guide vanes for setting different angles of attack
• Non-contact speed measurement at the turbine shaft
• Force sensor at the brake for torque measurement
• Digital display for pressure, temperature, flow rate, speed and torque
• Data acquisition via USB
• PC-based software compatible with Windows
