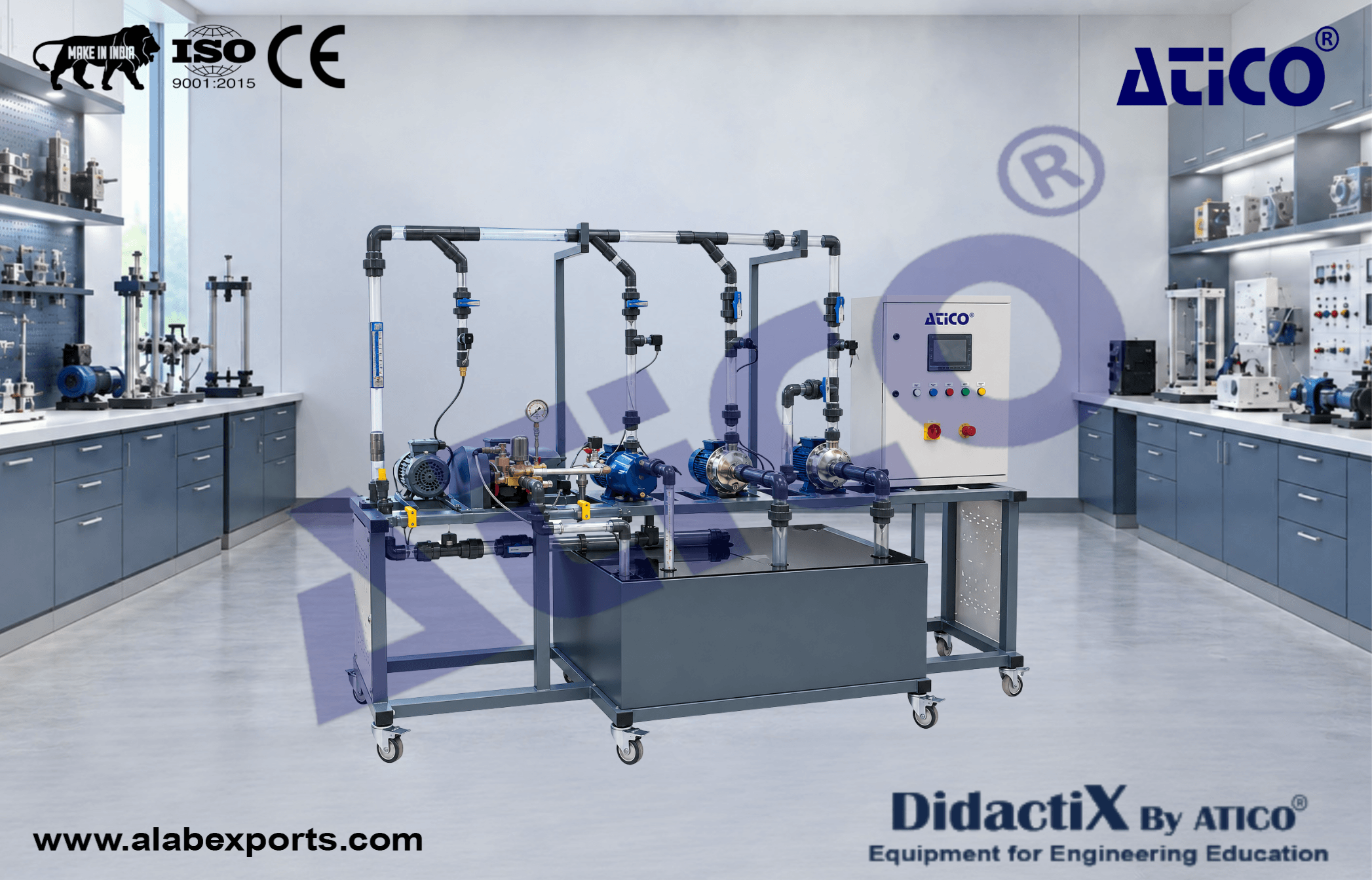

Pump Variations Training Set Teaching Equipment

Pump Variations Training Set is designed for practical teaching and experimentation with various pump types, including centrifugal pumps and positive displacement pumps. The training set includes two centrifugal pumps, one piston pump as a positive displacement pump and a self-priming side-channel pump.

The side-channel pump primarily operates as a centrifugal pump and, depending on the liquid level, can also operate as a positive displacement pump. As a special feature, it also permits gases to be pumped. The pumps investigated operate with water in a closed circuit.

The system enables students to record pump performance data and pressure losses in the pipeline. The centrifugal pumps can be operated in parallel or series configuration. Each pump is driven by a separate three-phase AC motor. The speed of the centrifugal pump motors can be variably adjusted using a frequency converter.

All motors are mounted on swivel bearings, allowing torque to be measured using a force sensor and enabling determination of the mechanical drive power output. One free position is equipped with a reversible three-phase AC motor with variable speed and can be used for mounting an additional pump.

The trainer is operated and controlled by an integrated PLC with touch screen. An integrated router allows alternative operation and control via an end device. The user interface can be displayed on up to 10 end devices through screen mirroring. Measured values can be stored internally via the PLC.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

PLC :

• Integrated PLC for plant control and data acquisition

Centrifugal Pumps :

• Quantity: 2
• Maximum flow rate: 330 L/min
• Maximum head: 23 m

Three-Phase AC Motors for Centrifugal Pumps :

• Quantity: 2
• Power output: 1.5 kW
• Nominal speed: 2900 min⁻¹

Side-Channel Pump :

• Self-priming, one-stage
• Maximum flow rate: 83 L/min
• Maximum head: 50 m

Three-Phase AC Motor for Side-Channel Pump :

• Power output: 1.1 kW
• Nominal speed: 1500 min⁻¹

Piston Pump :

• Maximum flow rate: 17 L/min
• Maximum head: 60 m

Three-Phase AC Motor for Piston Pump :

• Power output: 0.55 kW
• Nominal speed: 1400 min⁻¹

Additional Three-Phase AC Motor :

• Reversible
• Power output: 0.75 kW
• Nominal speed: 2800 min⁻¹

Measuring Ranges :

• Flow rate: 0…300 L/min
• Pressure at inlet: -1…1.5 bar
• Pressure at outlet: 0…10 bar
• Torque: 0…15 Nm
• Speed: 0…3000 min⁻¹
• Pump electrical power consumption: 0…2 kW

Experiments :

• Investigation of key principles of pump engineering
• Comparison of centrifugal, piston and side-channel pumps
• Investigation of centrifugal pumps in parallel operation
• Investigation of centrifugal pumps in series operation
• Determination of pump performance data
• Measurement of pressure losses in the pipeline
• Measurement of torque and mechanical drive power output
• Investigation of the operating behavior of various pump types

Power Supply :

• 400 V, 50 Hz, 3 phases
• 400 V, 60 Hz, 3 phases
• 230 V, 60 Hz, 3 phases

Dimensions and Weight :

• Dimensions (L × W × H): 2860 × 1200 × 1960 mm
• Weight: approximately 430 kg

• Experiments relating to key issues in pump engineering
• Comparison of various pump types: centrifugal pump, piston pump and side-channel pump
• Operation of centrifugal pumps in parallel or series configuration
• Free position for additional pump
• Three-phase AC motors for centrifugal pumps and additional motor with variable speed by frequency converter
• Plant control with PLC and operation via touch screen
• Integrated router for operation and control via an end device
• Screen mirroring with the possibility of displaying the user interface on up to 10 end devices
• Data acquisition via PLC on internal USB memory
