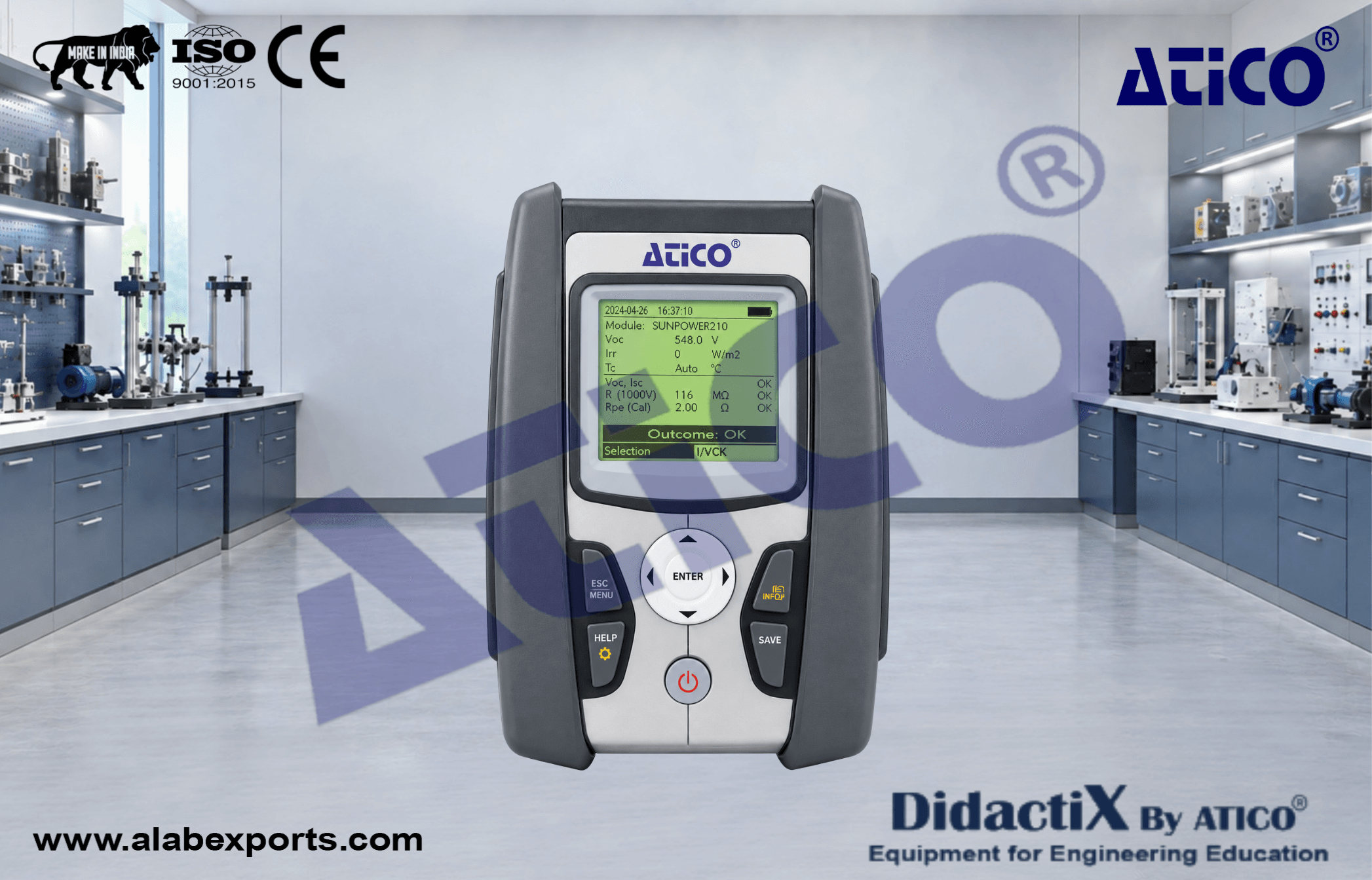

PVCHECK Meter Teaching Equipment

PVCHECKs Meter is a multifunction device designed for commissioning tests on photovoltaic systems. It provides automatic testing in sequence and supports electrical safety and performance measurements for PV systems.

The meter enables insulation measurement up to 1000 V DC, open-circuit voltage and short-circuit current measurements up to 1000 V / 15 A, and continuity testing of protective conductors with 200 mA.

The instrument supports PV string and field insulation testing without service interruption, I-V curve measurements, PV field efficiency measurements, irradiation measurement using a reference cell, and temperature measurement of the cell and surrounding environment.

It can also measure AC/DC voltage and current in single-phase and three-phase systems, together with active, reactive and apparent power and energy. Recording functions, internal memory, PC interface and software support practical data acquisition and analysis.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

General Specifications :

• Size (L × W × H): approximately 235 × 165 × 75 mm
• Weight including batteries: approximately 1200 g

• Multifunction device for commissioning tests on PV systems
• Automatic test in a sequence
• Insulation measurement up to 1000 V DC
• Open-circuit voltage and short-circuit current measurement up to 1000 V / 15 A
• Continuity of protective conductors with 200 mA
• PV string/field insulation testing without service interruption
• Test voltage: 250, 500 and 1000 V DC
• Quick I-V test for measuring Voc and Isc on PV modules and strings
• DC-side efficiency measurement of photovoltaic fields
• Remote unit with USB/RF connection
• Irradiation measurement with reference cell
• Temperature measurement of cell and environment
• AC/DC voltage measurement in single-phase and three-phase systems
• AC/DC current measurement in single-phase and three-phase systems
• Active power/energy (P)
• Reactive power/energy (Q)
• Apparent power/energy (S)
• Maximum number of simultaneously selectable parameters: 5
• Recording with selectable integration period: 5–60 s
• Summary table of main electrical parameters
• I-V curve / Voc-Isc measurement range: up to 1000 V / 15 A
• Measurement category: CAT III 300 V
• Backlit LCD display
• Internal memory storage: 999 locations
• PC interface with software for Windows
• Custom management of internal PV module database
• Automatic power-off function
• On-screen help function
