Recirculating Air Conditioning Unit Teaching Equipment

Recirculating Air Conditioning Unit is designed as a comprehensive teaching system for studying air conditioning processes with both outdoor air and recirculating air operation. The system provides practical demonstration of heating, cooling, humidification, dehumidification, air circulation and reheat processes.

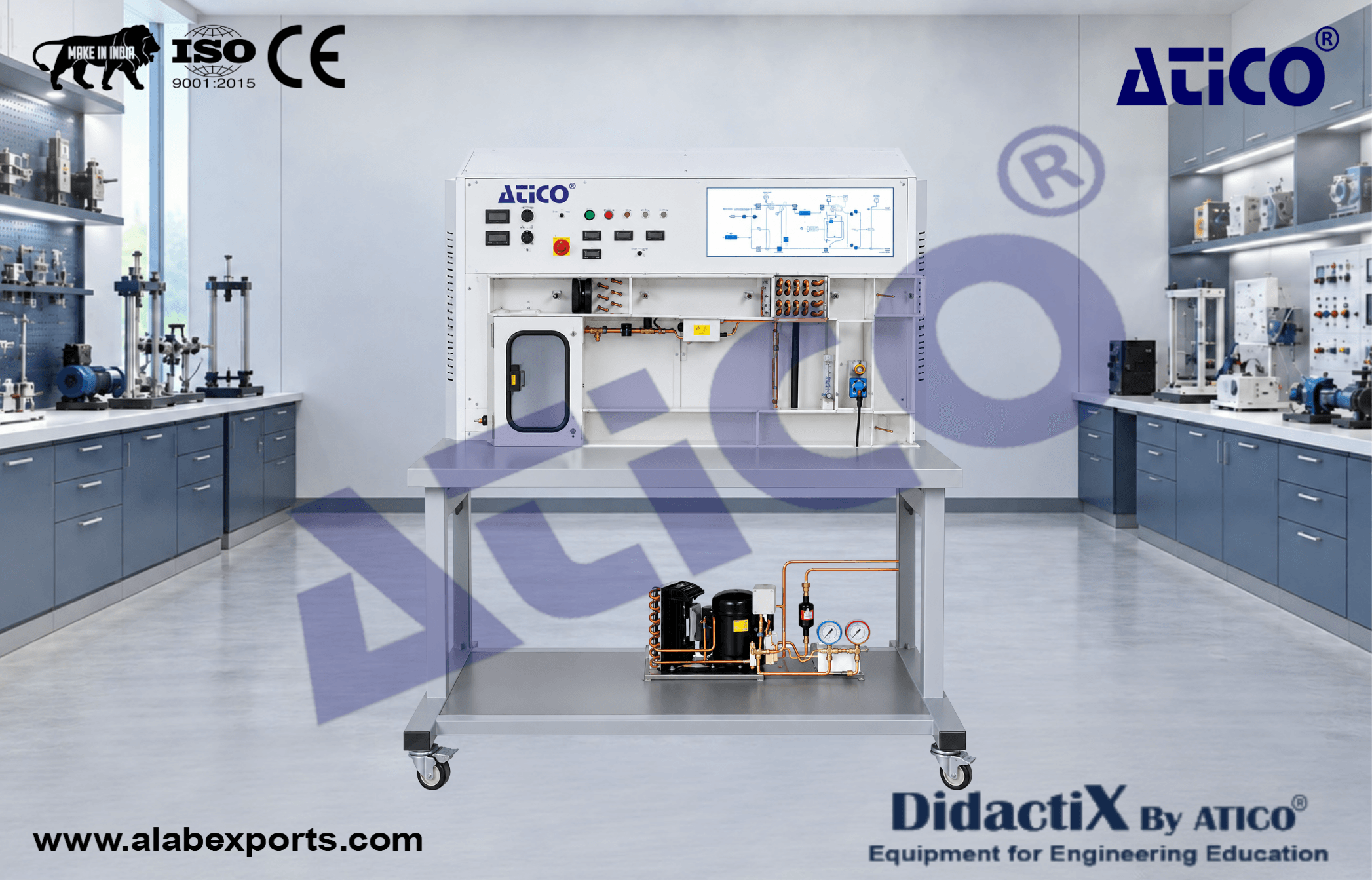

The unit consists of a transparent air duct with a fan, air cooler, humidifier, motorized flaps, air heater and sensors. A climatic chamber with wet (latent) and dry (sensible) heat sources is provided as the cooling load. Adjustable recirculation allows air leaving the chamber to be returned to the conditioning duct.

The transparent duct provides full visibility of the air conditioning process and components. Temperature and relative humidity sensors are provided at different stages of the process, together with an air flow sensor. The system is suitable for academic analysis of thermodynamic and air conditioning principles.

The system includes a process schematic with signal lamps and is prepared for different automation solutions through data cable connections. Computer-based operation, real-time data logging, manual data recording and USB data download can be supported for practical analysis and experimentation.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Refrigeration System :

• Refrigerant: R134a
• Compressor: Air-cooled condensing unit
• Cooling capacity: 1.8 kW

Humidifier :

• Boiler power: 2 kW to 3 kW

Air Heater :

• Heating power: 4 kW

Cooling Load :

• 2 heaters in the chamber
• Power output: 0…250 W each
• Power output freely adjustable

Air Duct :

• Flow cross-section (W × H): 155 × 155 mm
• Transparent front for process observation

Environmental Chamber :

• Volume: 1.3 m³
• Equipped with wet (latent) and dry (sensible) heat sources
• Adjustable air recirculation

Measuring Ranges :

• Temperature: 0…50 °C
• Relative humidity: 10…90%
• Cooling load power: 2 × 0…300 W
• Refrigerant pressure: -1…9 bar / -1…24 bar
• Refrigerant flow rate: 1.5…23.5 L/h
• Air velocity: 0…2.5 m/s

Power Supply :

• 230 V, 50 Hz, 1 phase

• Model of an air conditioning system with outdoor air and recirculating operation
• Air duct with transparent front for full visibility of the process and components
• Air duct with fan, air cooler, humidifier, flaps, air heater and sensors
• Chamber with wet (latent) and dry (sensible) heat sources as cooling load
• Motorized flaps for recirculating and outdoor air operation
• Process schematic with signal lamps
• Air conditioning system prepared for different automation solutions
• 4 data cable connections for integrating accessories
• Refrigerant R134a
• Comprehensive air conditioning teaching system with initial heating stage, humidifier, chiller/dehumidifier, final heating stage, climatic chamber, return duct and adjustable recirculation
• Temperature and relative humidity sensors at different stages of the process
• Air flow sensor
• Capability of heating, humidifying and reheat
• Adjustable recirculation of air leaving the chamber back into the conditioning duct
• Data logger with user-friendly software and USB data download
• Suitable for computer-controlled operation, real-time data logging and manual data recording
