Scram Power Plant Teaching Equipment

In a steam engine, thermodynamic energy in the form of steam pressure is converted into mechanical energy. This mechanical energy can be used for electricity generation or to drive machinery and vehicles. A steam power plant generally consists of a heat source for steam generation, a turbine or steam engine with a generator, and a cooling system for condensing the exhaust steam.

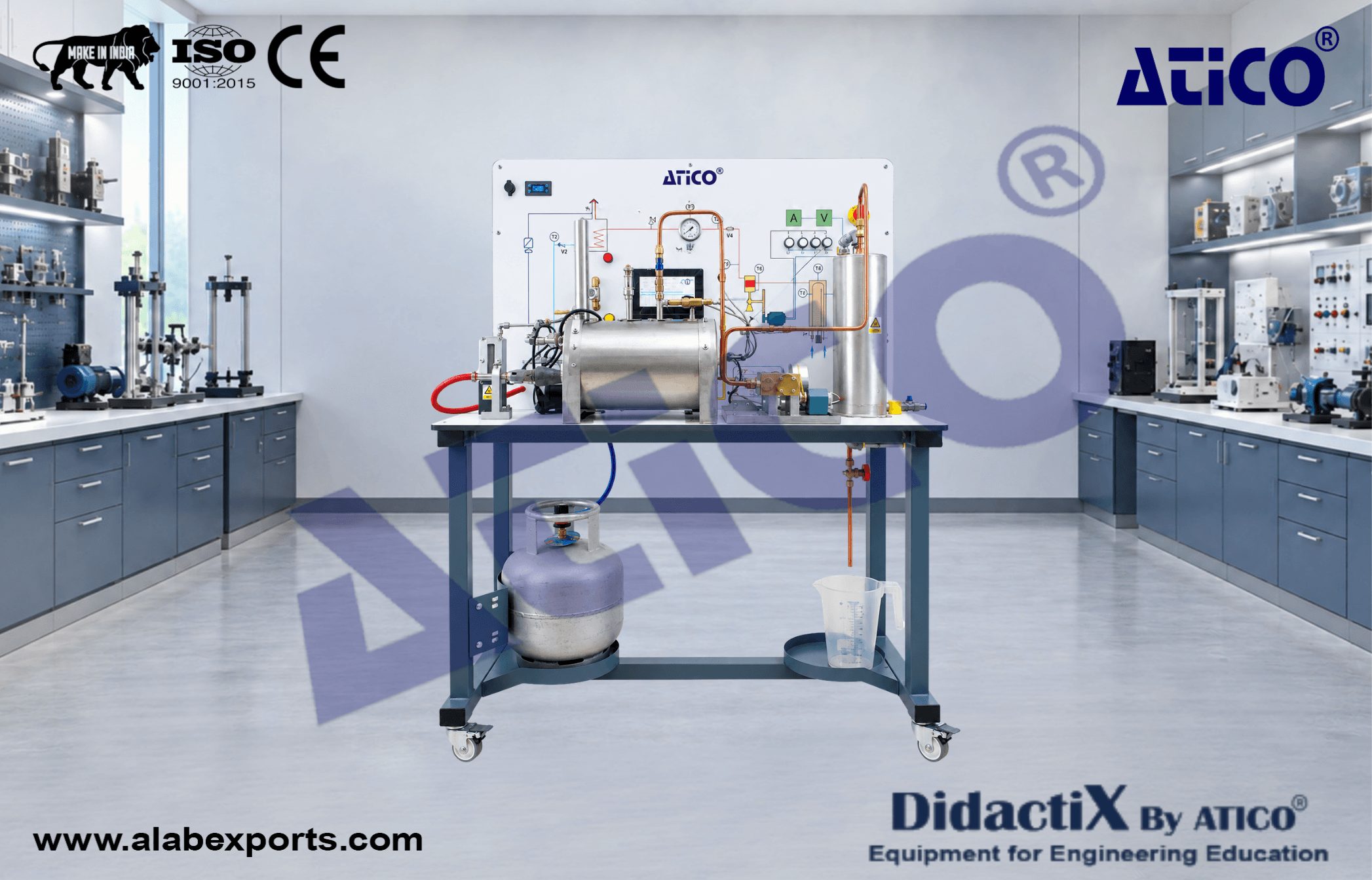

This training equipment contains the main components of a steam power plant, including a gas-fired steam boiler, single-cylinder piston steam engine with generator, water-cooled condenser, feed water tank and feed water pump. The boiler generates steam and supplies it to the piston steam engine. A piston and crank mechanism convert the energy of the steam into mechanical energy, while a DC generator converts the mechanical power into electrical energy.

Four light bulbs are provided as electrical consumers. The exhaust steam is condensed in a water-cooled condenser. Safety devices monitor the boiler temperature and include a safety valve for safe operation. Sensors measure temperature, pressure and flow rate at relevant points, while generator voltage and current are measured and displayed.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Demonstration of a steam power plant with single-cylinder piston steam engine
• Gas-fired boiler for steam generation
• Water-cooled condenser
• DC generator
• Light bulbs as electrical consumers
• Sensors and displays for temperature, pressure, flow rate, voltage and current
• Safety valve and temperature monitoring for safe operation

Technical Details :

Steam Engine :

• Maximum power: 5 W
• Maximum speed: 1200 min⁻¹
• Cylinder diameter: 20 mm

Generator :

• DC motor
• Maximum power: 3.18 W at 6000 min⁻¹

Gas-Fired Boiler :

• Safety valve: 4 bar
• Gas connection: Butane gas

Measuring Ranges :

Temperature :

• 8 × -20 to 200°C

Pressure :

• 0 to 6 bar

Flow Rate :

• Gas: 0 to 110 L/h
• Water: 15 to 105 L/h

Voltage :

• 0 to 10 V DC

Current :

• 0 to 250 mA

Power Supply :

• 230 V, 50 Hz, 1 phase
• 230 V, 60 Hz, 1 phase

Required for Operation :

• Water connection and drain: 3/8"
