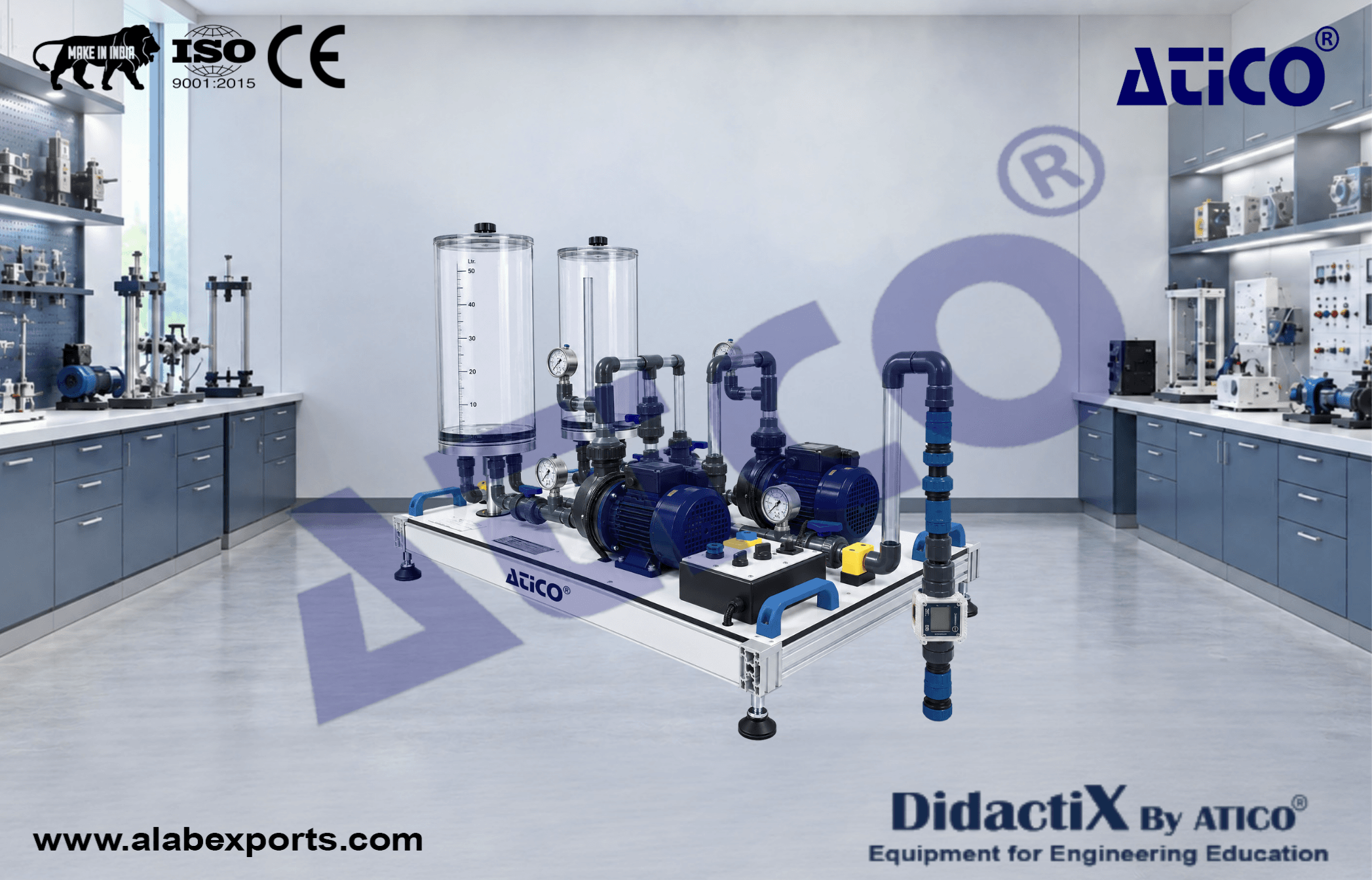

Series and Parallel Configuration of Pumps Teaching Equipment

This teaching equipment is designed for practical investigation of centrifugal pump operation in series and parallel configurations. It enables students to compare the performance and operating characteristics of two identical pumps when connected in different arrangements.

The system includes two centrifugal pumps, a transparent intake tank with an overflow arrangement for maintaining a constant suction head, and ball valves for switching between series and parallel operation. Pressure at the inlet and outlet of each pump can be monitored using pressure gauges, while the flow rate is determined using a suitable base module.

The equipment is suitable for fluid mechanics and hydraulic engineering laboratories, providing hands-on learning of pump characteristics, pressure, flow rate and the effect of series and parallel pump configurations.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Specifications :

• Investigation of series and parallel configuration of pumps
• Two identical centrifugal pumps
• Transparent tank used as intake tank
• Overflow in the tank ensures constant suction head
• Ball valves for switching between series and parallel operation
• Pressure gauges at the inlet and outlet of each pump
• Flow rate determined using a suitable base module
• Water supply via a suitable base module or laboratory supply

Technical Details :

Centrifugal Pumps :

• Quantity: 2
• Type: Centrifugal pump
• Power consumption: 370 W
• Maximum flow rate: 21 L/min
• Maximum head: 12 m

Tank :

• Capacity: 13 L
• Transparent construction

Pipes and Pipe Connections :

• Material: PVC

Additional Pump Details :

• Type: Self-priming centrifugal pump
• Maximum flow rate: 2700 L/h
• Maximum head: 36 m
• Motor type: Asynchronous
• Nominal power: 450 W

Measuring Ranges :

Pressure - Inlet :

• 2 × -1 to 1.5 bar

Pressure - Outlet :

• 3 × 0 to 2.5 bar

Power Supply :

• 230 V, 50 Hz, 1 phase
• 230 V, 60 Hz, 1 phase
• 120 V, 60 Hz, 1 phase
