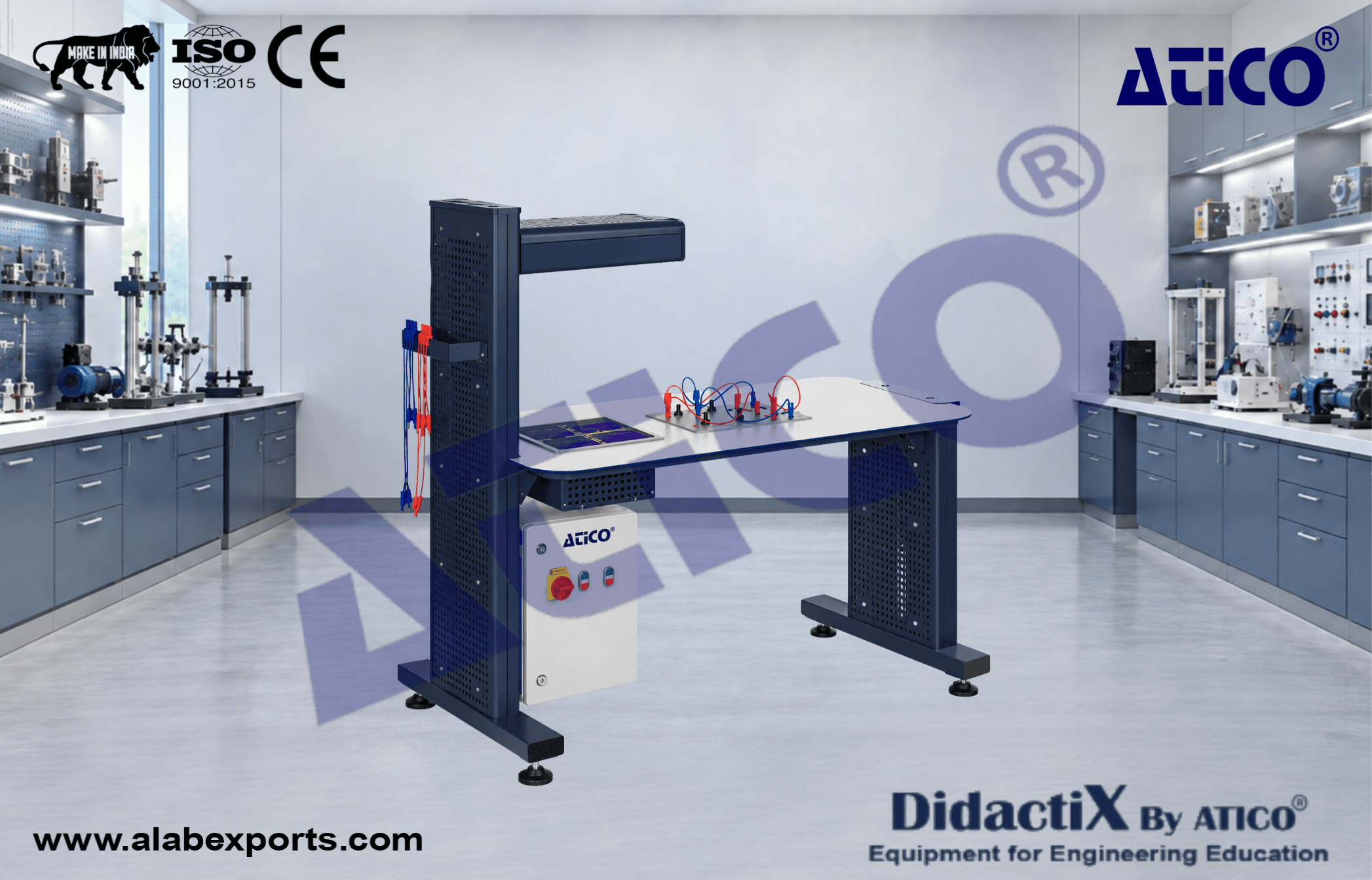

Solar Module Measurements Teaching Equipment

Solar Module Measurements is designed for practical teaching and measurement of photovoltaic solar modules using typical electrical components from practical photovoltaic applications. The system can be operated with a photovoltaic simulator or with actual photovoltaic modules.

The trainer features pivoting solar modules mounted on mobile frames, allowing series and parallel connection options for practical experiments. A slide resistor is provided as a variable load, along with two power resistors for expanding the measuring range.

A measuring amplifier with digital displays enables measurement of current, voltage, illuminance and module temperature. A reference cell is provided as an illuminance sensor for practical photovoltaic measurements.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Module Design :

• Number of cells: 36
• Cell material: Monocrystalline silicon
• Module area: 0.64 m²

Typical Module Parameters under STC (Standard Test Conditions) :

• Maximum output: 85 W
• Short-circuit current: approximately 5.3 A
• Open-circuit voltage: approximately 22 V

Slide Resistor :

• Resistance range: 0–1092 Ω

Power Resistors :

• Two power resistors: 2282 Ω / 50 W

Measuring Ranges :

• Temperature: 0–100 °C
• Voltage: 0–200 V
• Current: 0–20 A
• Illuminance: 0–3 kW/m²
• Inclination: 0–90°

Power and Electrical :

• Mains connection: 230 V, 50 Hz, 1 phase

• Trainer for solar module measurements
• Pivoting solar modules on mobile frames
• Series and parallel connection options
• Slide resistor as variable load
• Two power resistors for expanding the measuring range
• Measuring amplifier with digital displays for current, voltage, illuminance and module temperature
• Reference cell as illuminance sensor
