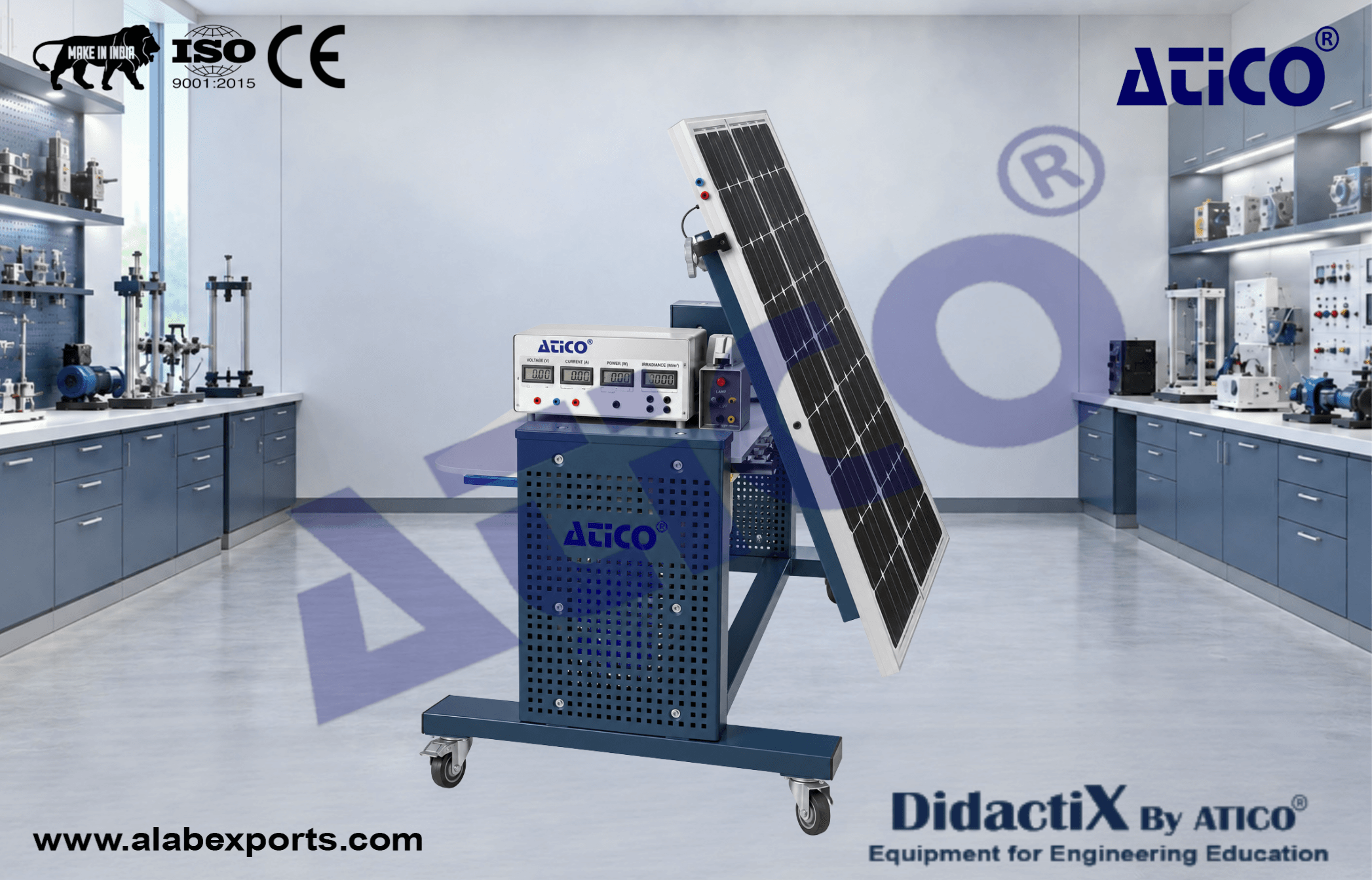

Solar PV Grid Connected or Stand-Alone Simulator

Solar PV Grid-Connected or Stand-Alone Simulator is designed for practical teaching and demonstration of photovoltaic power generation in both grid-connected and stand-alone operating modes. The system incorporates typical electrical components used in practical photovoltaic applications and allows students to investigate the operation and characteristics of solar PV power systems.

The simulator can be operated with a photovoltaic simulator or with actual photovoltaic modules. For grid-connected operation, the system includes an inverter with maximum power point (MPP) tracker. For stand-alone operation, an inverter and charge controller are provided together with a solar battery and lamp.

A commercially available combiner box is included for practical connection and distribution of photovoltaic components. The operating states of the system can be displayed through software, while network connectivity enables experiments to be observed, acquired and analyzed from multiple workstations via LAN/WLAN.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Photovoltaic Simulator :

• Maximum output: approximately 140 W
• Short-circuit current: approximately 4.5 A
• Open-circuit voltage: approximately 40 V

Inverter for Grid-Connected Operation :

• Rated input power: 150 W
• Maximum output power: 125 W
• Maximum efficiency: 89%

Charge Controller for Stand-Alone Operation :

• Charging current: 20 A
• End charging voltage: approximately 14 V

Power and Electrical :

• Mains connection: 230 V, 50 Hz, 1 phase

• Typical electrical components used in practical photovoltaic applications
• Operation with photovoltaic simulator or actual photovoltaic modules
• Grid-connected or stand-alone operation
• Inverter with MPP tracker for grid-connected operation
• Inverter and charge controller for stand-alone operation
• Solar battery and lamp for stand-alone operation
• Commercially available combiner box
• Display of operating states through software
• Network capability for observing, acquiring and analyzing experiments from multiple workstations
• LAN/WLAN connectivity
• Data acquisition via USB
